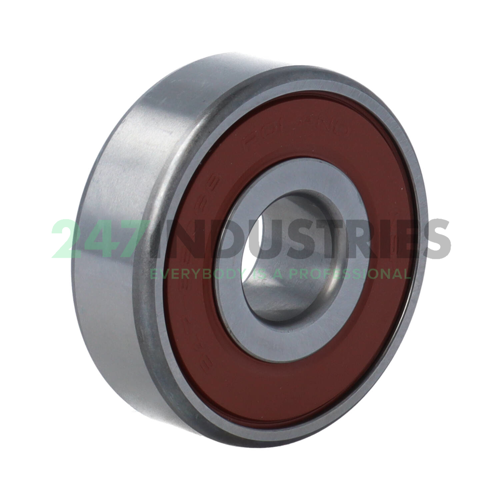

B17-99T1XDDG8CG16E NSK

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 52
3. Width (B) MM 17
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.6693

Suffix description

1. T1X Polyamide Retainer
2. DD Rubber Seals At Each Side Of The Bearing
3. G8 Unknown
4. CG16 Special Radial Clearance In Micron
5. E Ball Bearing, Single Row Electric Motor Grade, Noise Level

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number B17-99T1XDDG8CG16E NSK
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.182

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Special Internal Clearance
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
