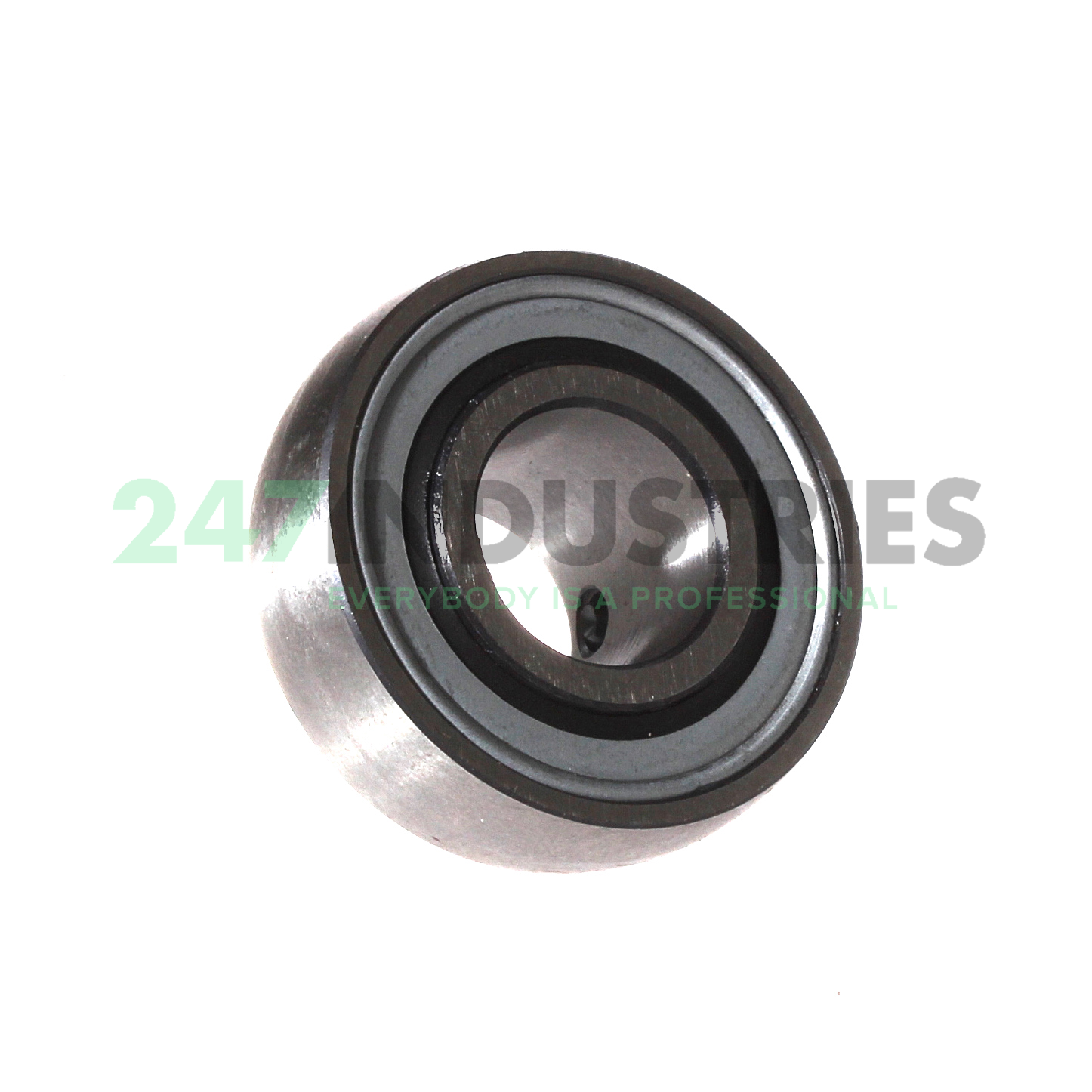

AY17-XL-NPP-B INA

All dimensions

1. Inner (d) MM 17,00
2. Outer (D) MM 40,00
3. Width (B) MM 22,00
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.5748
6. Width (B) Inch 0.8661
7. Outside diameter (D SP) mm 40,00
8. Width (b) mm 22,00

Suffix description

1. XL X-Life
2. NPP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded)
3. B Bearing With Spherical Outer Ring
4. FA106 Bearing Subjected To Special Noise Testing
5. L460 NSF-H1 Approval, Lubricants Registered As H1 Or Certified To ISO 21469 Are Considered Food Grade

Technical details

1. Availability 183 pcs
2. Brand INA
3. Item number AY17-XL-NPP-B INA
4. Also known as 0009082150000
   AY17-NPP-B
   YAT203

5. EAN 4012802806847
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.08

Product Properties

1. Seal 2L - LS-seal at Both Sides
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 4750
2. Radial Dynamic Load Rating Cr (N) 10100
3. Basic static load rating, radial (C 0r) "4750.0000"
4. ECLASS number 23-05-08-02
5. ECLASS2 number 23-05-08-02

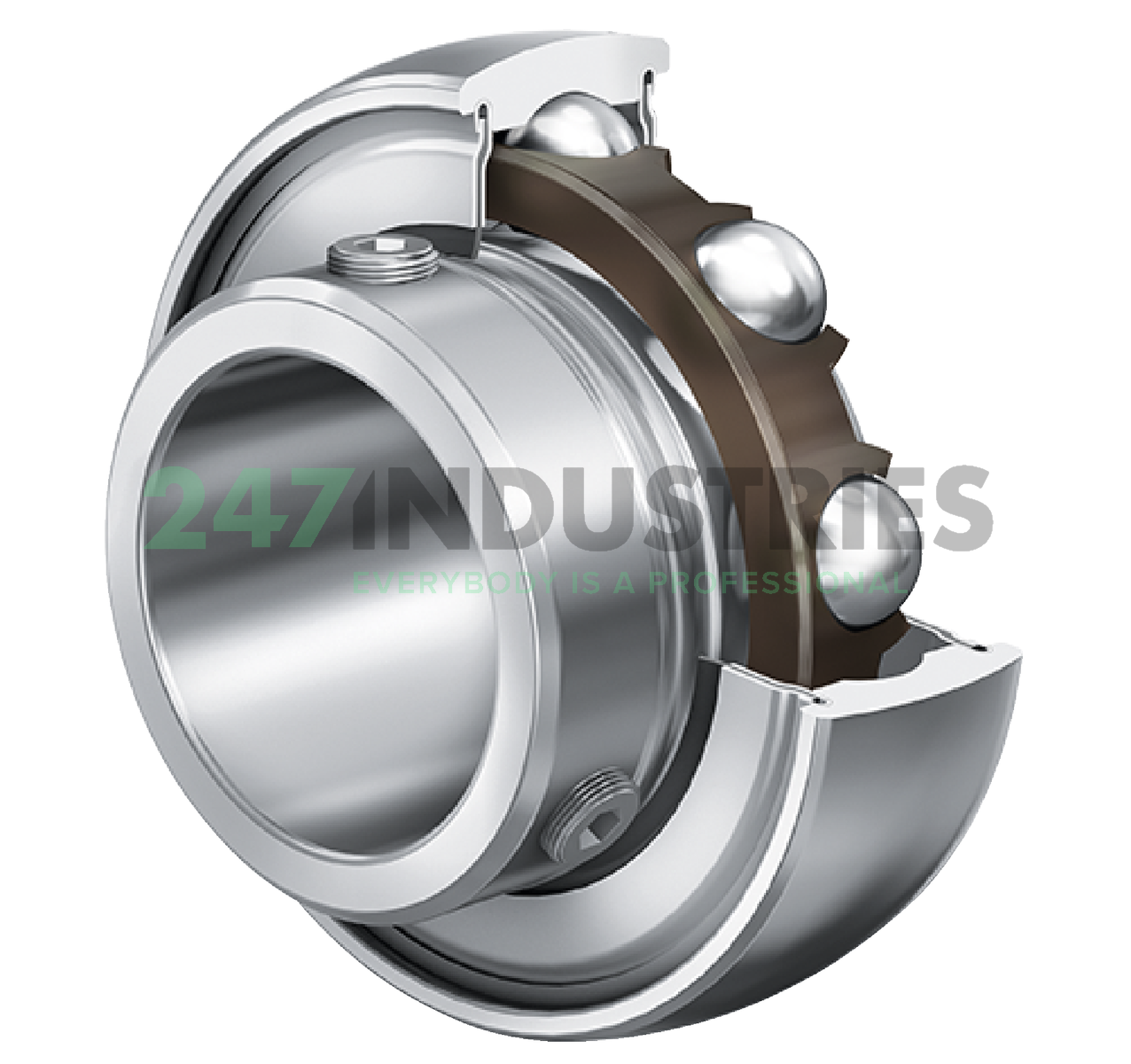

6. Medias description Radial insert ball bearings AY..-NPP-B, spherical outer ring, location by grub screws, P seals on both sides
