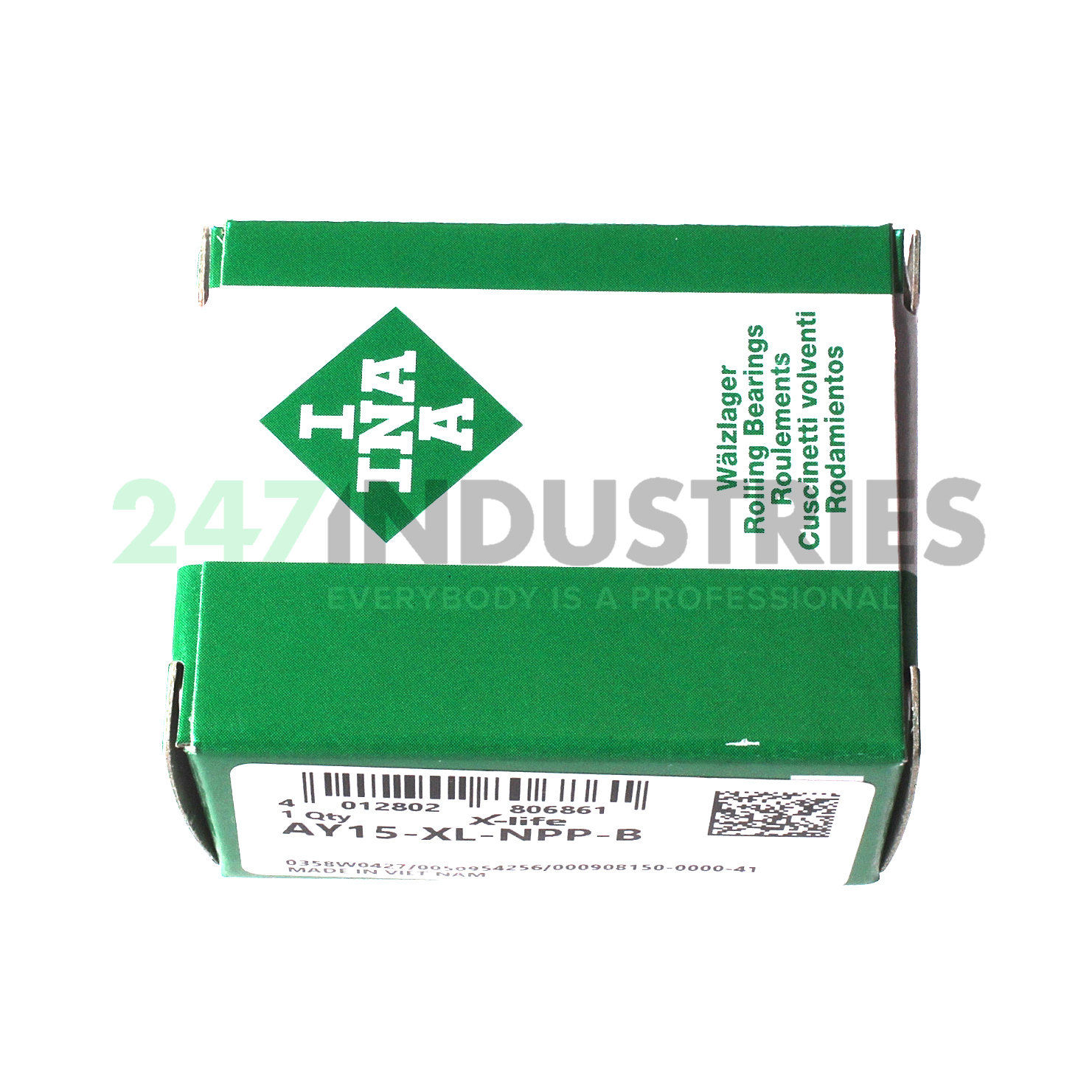

AY15-XL-NPP-B INA

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 40
3. Width (B) MM 22
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.5748
6. Width (B) Inch 0.8661
7. Outside diameter (D SP) mm 40
8. Width (b) mm 22

Suffix description

1. XL X-Life
2. NPP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded)
3. B Bearing With Spherical Outer Ring
4. FA106 Bearing Subjected To Special Noise Testing
5. L460 NSF-H1 Approval, Lubricants Registered As H1 Or Certified To ISO 21469 Are Considered Food Grade

Technical details

1. Availability 144 pcs
2. Brand INA
3. Item number AY15-XL-NPP-B INA
4. Also known as 0009081500000
   AY15-NPP-B
   YAT203/15

5. EAN 4012802806861
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.09

Product Properties

1. Seal 2L - LS-seal at Both Sides
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 4750
2. Radial Dynamic Load Rating Cr (N) 10100
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02

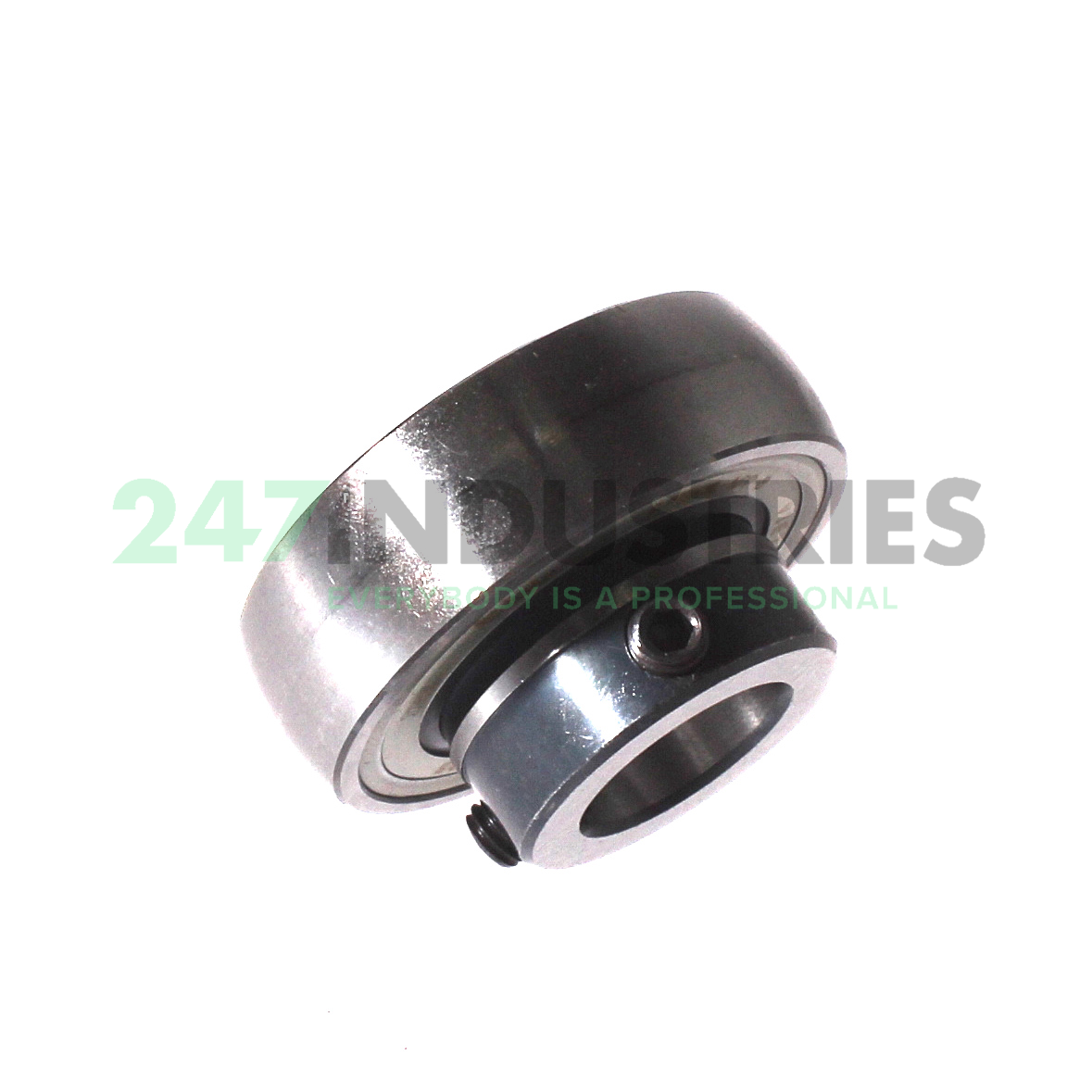

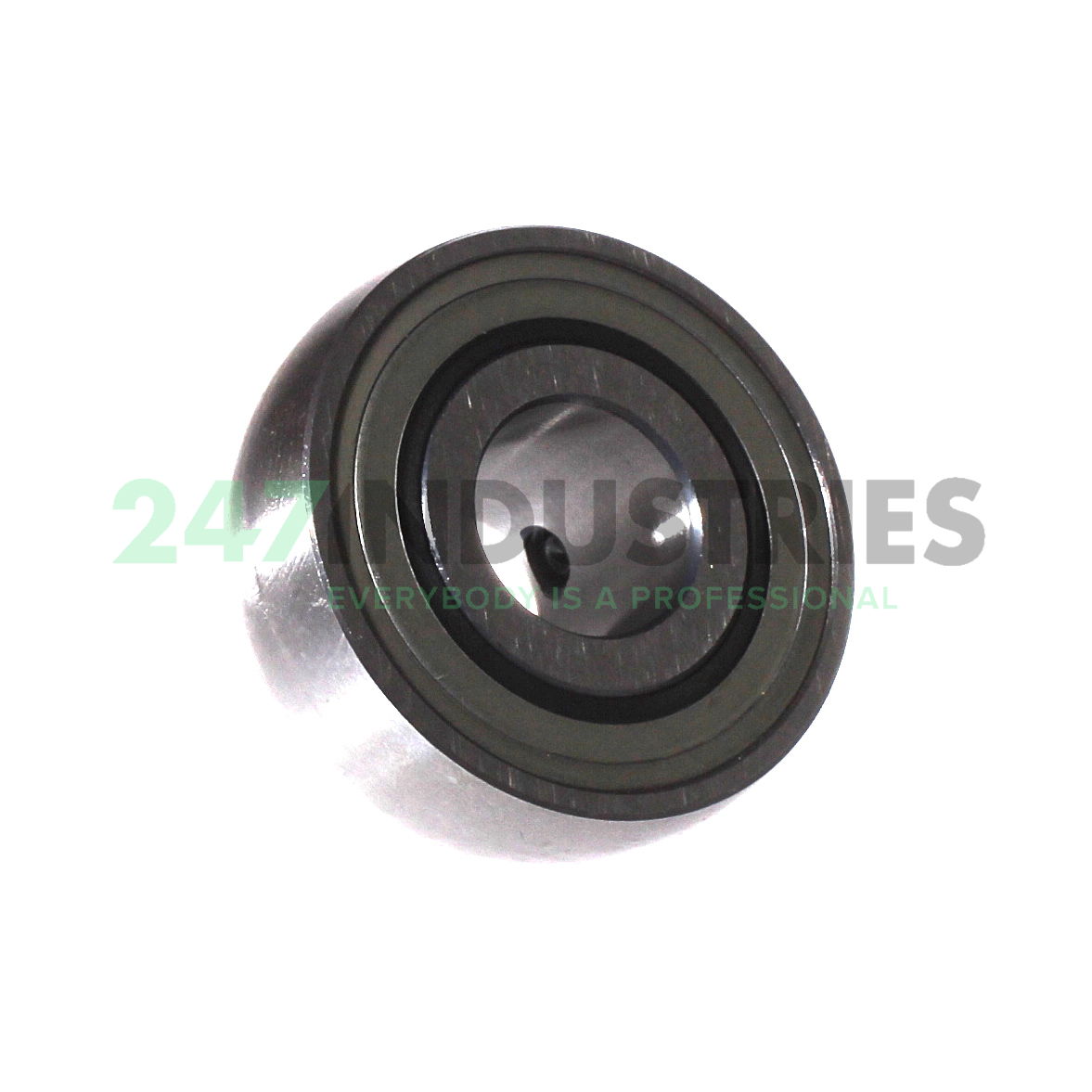

5. Medias description Radial insert ball bearings AY..-NPP-B, spherical outer ring, location by grub screws, P seals on both sides
