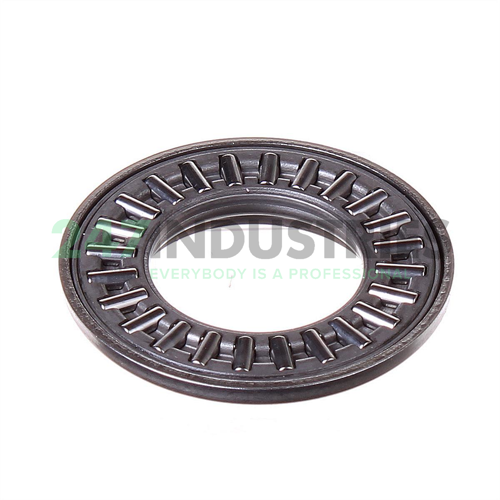

AXW20 INA

All dimensions

1. Inner (d) MM 20,00
2. Outer (D) MM 38,00
3. Width (B) MM 3,20
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.4961
6. Width (B) Inch 0.1260
7. Outside diameter bearing washer (D) mm 38,00
8. Height bearing (B) mm 3,20

Technical details

1. Availability 851 pcs
2. Brand INA
3. Item number AXW20 INA
4. Also known as 0001134330000

5. EAN 4012802032833
6. Category Needle Roller Thrust Bearing

Weight and Dimensions

1. Weight (kg) 0.01

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C) "13100.0000"
2. Axial Static Load Rating C0a (N) 46500
3. Basic static load rating, axial (C 0a) "46500.0000"
4. Axial Dynamic Load Rating Ca (N) 13100
5. Limiting speed (n G) "10500.0000"
6. Reference speed (n ϑr) "5300.0000"
7. ECLASS number 23-05-11-02
8. ECLASS2 number 23-05-11-02
9. Medias description Axial needle roller bearings, single direction, AXK with axial bearing washer

Downloads and links

1. Link to manufacturer Link to manufacturer
