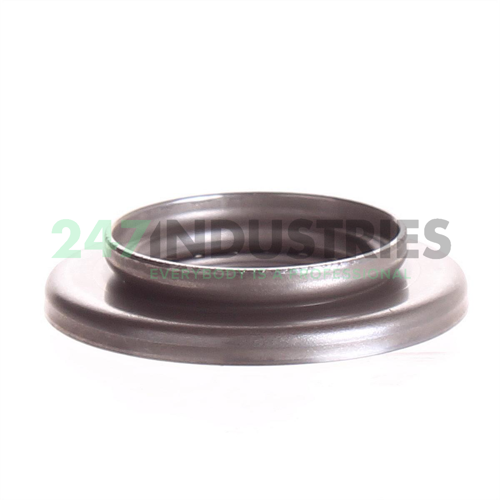

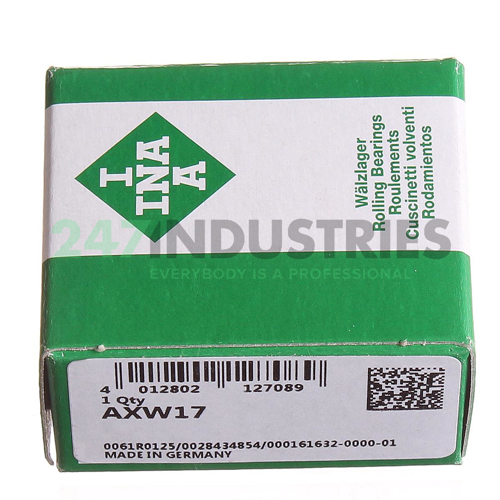

AXW17 INA

All dimensions

1. Inner (d) MM 17,00
2. Outer (D) MM 33,00
3. Width (B) MM 3,20
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.2992
6. Width (B) Inch 0.1260
7. Outside diameter bearing washer (D) mm 33,00
8. Height bearing (B) mm 3,20

Technical details

1. Availability 71 pcs
2. Brand INA
3. Item number AXW17 INA
4. Also known as 0001616320000

5. EAN 4012802127089
6. Category Needle Roller Thrust Bearing

Weight and Dimensions

1. Weight (kg) 0.011

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C) "12000.0000"
2. Axial Static Load Rating C0a (N) 39500
3. Basic static load rating, axial (C 0a) "39500.0000"
4. Axial Dynamic Load Rating Ca (N) 12000
5. Limiting speed (n G) "12300.0000"
6. Reference speed (n ϑr) "5800.0000"
7. ECLASS number 23-05-11-02
8. ECLASS2 number 23-05-11-02
9. Medias description Axial needle roller bearings, single direction, AXK with axial bearing washer
