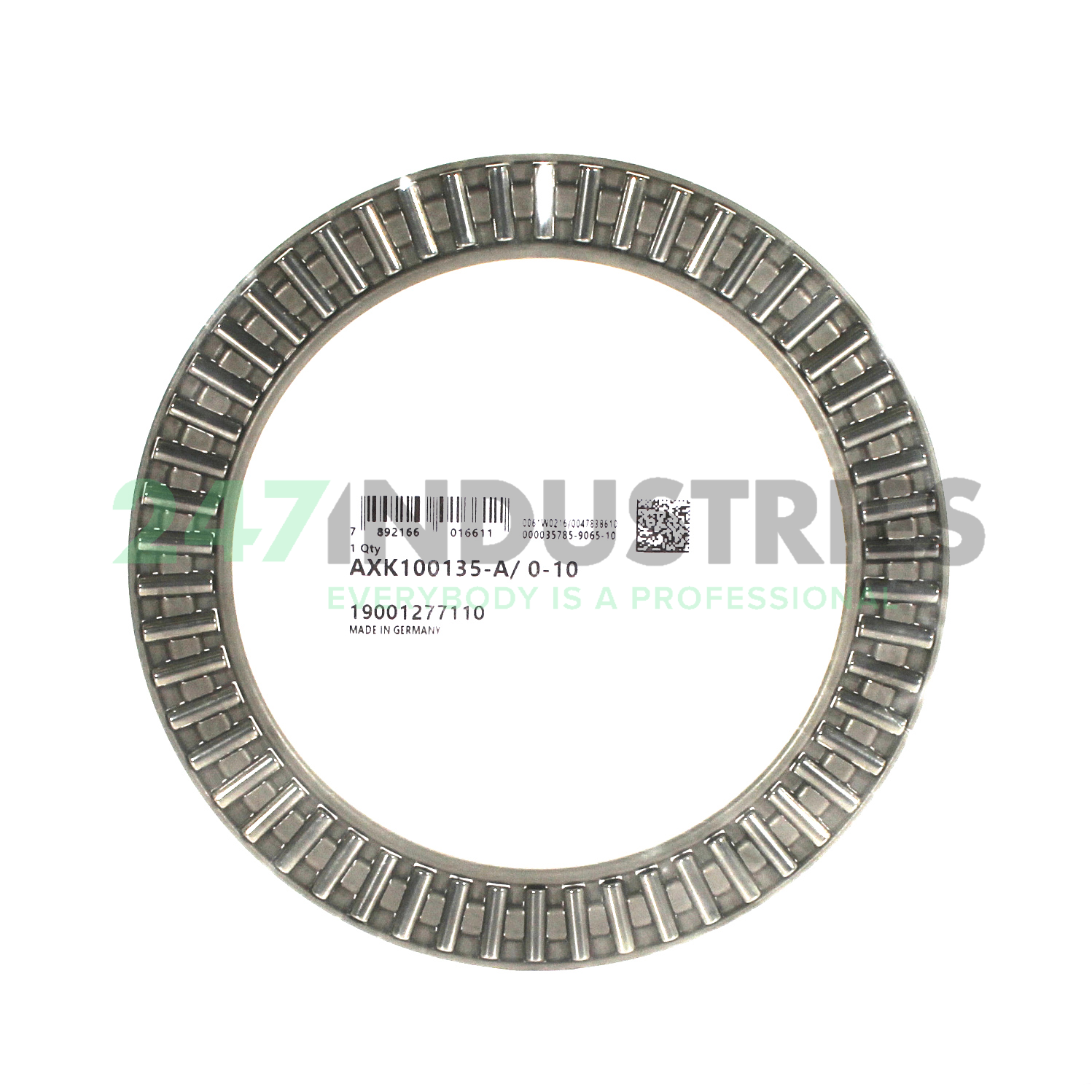

AXK100135-A/0-10 INA

All dimensions

1. Inner (d) MM 100,00
2. Outer (D) MM 135,00
3. Width (B) MM 4,00
4. Inner (d) Inch 3.9370
5. Outer (D) Inch 5.3150
6. Width (B) Inch 0.1575
7. Outside diameter (D c) mm 135,00
8. Rolling element diameter (D W) mm 4,00
9. Raceway dimension (E a) mm 133,00
10. Raceway dimension (E b) mm 105,00

Suffix description

1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
2. /0-10 Micron - Needle Sort

Technical details

1. Availability 29 pcs
2. Brand INA
3. Item number AXK100135-A/0-10 INA
4. Also known as 0000357859065

5. EAN 4054364468392
6. Category Needle Roller Thrust Bearing

Weight and Dimensions

1. Weight (kg) 0.104

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "91000.0000"
2. Axial Static Load Rating C0a (N) 560000
3. Basic static load rating, axial (C 0a) "560000.0000"
4. Axial Dynamic Load Rating Ca (N) 91000
5. Limiting speed (n G) "2420.0000"
6. Reference speed (n ϑr) "970.0000"
7. ECLASS number 23-05-11-90
8. ECLASS2 number 23-05-11-90
9. Medias description Axial needle roller and cage assemblies, single direction, to DIN 5405-2
