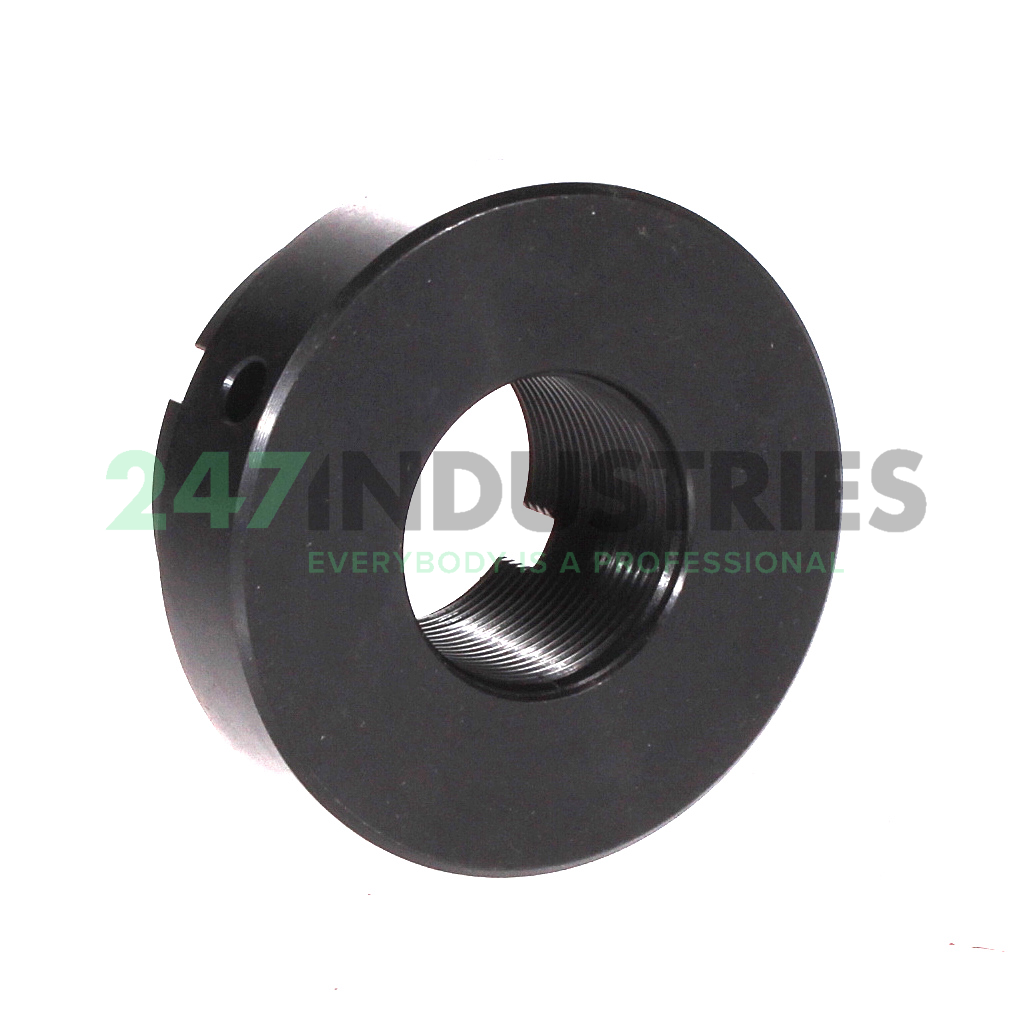

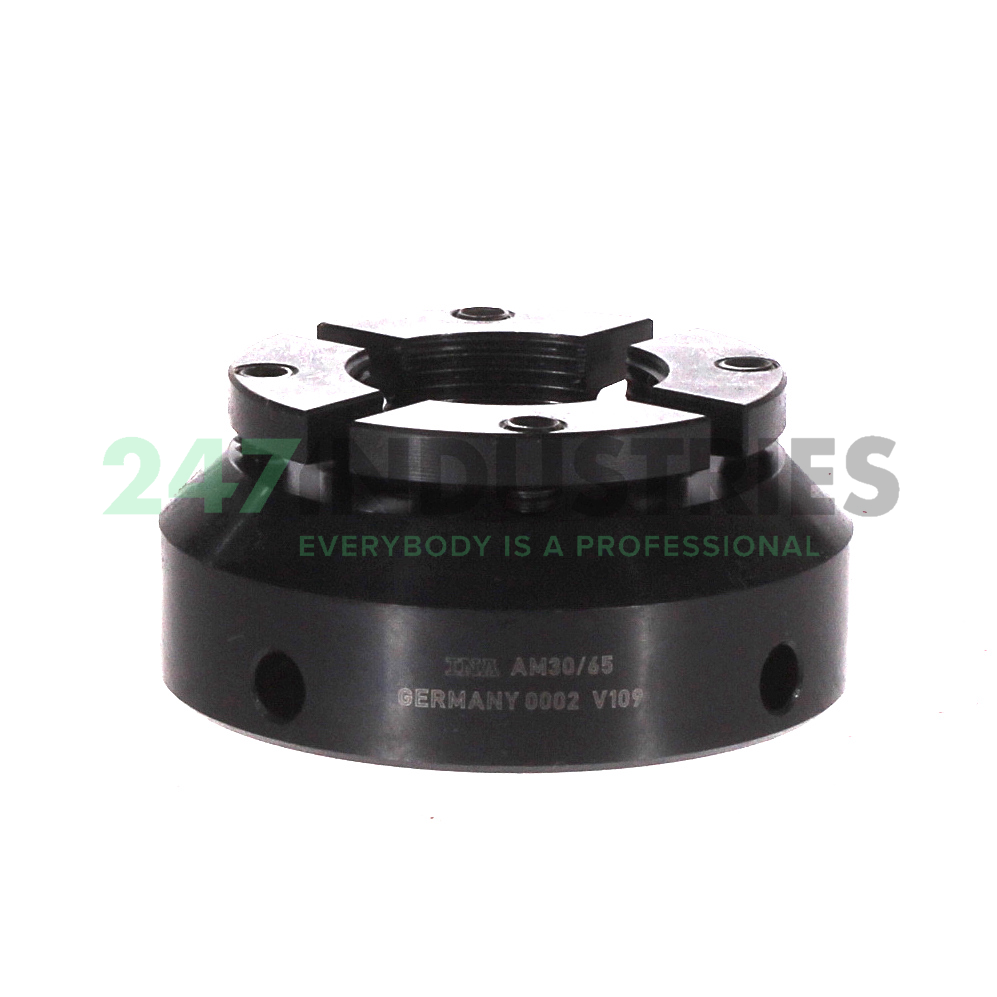

AM30/65 INA

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 65
3. Width (B) MM 30
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.5591
6. Width (B) Inch 1.1811
7. Height (H) mm 30

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number AM30/65 INA
4. Also known as 0043803710000

5. EAN 4054362017714
6. Category Lock Nut

Weight and Dimensions

1. Weight (kg) 0.5

Data from Schaeffler (medias)

1. Thread (d) M30X1,5
2. Breaking load, axial (F aB) 400000
3. Breakaway (M L) 70
4. Mounting torque reference (M AL) 32
5. Mass moment of inertia (M m) 2.8
6. ECLASS number 23-05-92-03
7. ECLASS2 number 23-05-92-03
8. Medias description Precision locknuts AM, segments for clamping
