AHX2322 FAG

€ 148,19 ex VAT
€ 179,31 incl. VAT
€ 179,31 incl. VAT
€ 148,19 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CEST)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

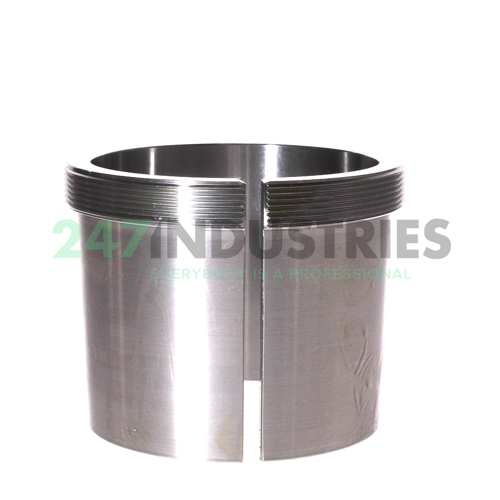

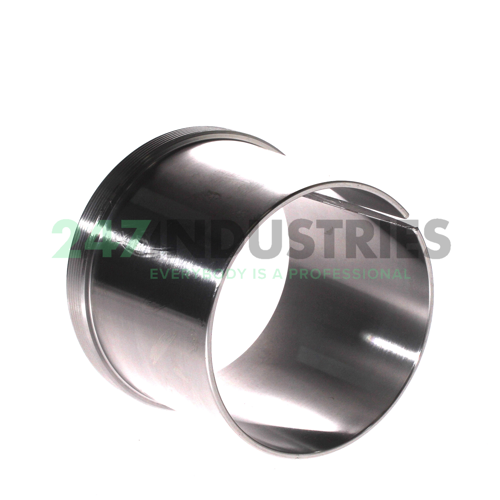

AHX2322 FAG

Withdrawal sleeves AH(X)23, main dimensions to DIN 5416, taper 1:12

Stock
9 pcs available
Brand FAG
Article number AHX2322 FAG
Inside diameter 105,00mm
Outside diameter 120,00mm
Width 82,00mm
Product description
Read more Show less
Help with this product

Downloads and links

Similar to: AHX2322 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 105,00
  2. Outer (D) MM 120,00
  3. Width (B) MM 82,00
  4. Inner (d) Inch 4.1339
  5. Outer (D) Inch 4.7244
  6. Width (B) Inch 3.2283
  7. Sleeve length (B 1) mm 98,00

Technical details

  1. Availability 9 pcs
  2. Brand FAG
  3. Item number AHX2322 FAG
  4. Also known as 0190034470000
  5. EAN 4012801208932
  6. Category Adapter / Withdrawal Sleeve

Weight and Dimensions

  1. Weight (kg) 1.28

Data from Schaeffler (medias)

  1. Thread (G) M125x2
  2. ECLASS number 23-05-92-02
  3. ECLASS2 number 23-05-92-02
  4. Medias description Withdrawal sleeve AH, accessory rolling bearing, mechanical, finished part

Downloads and links

  1. Link to manufacturer Link to manufacturer
