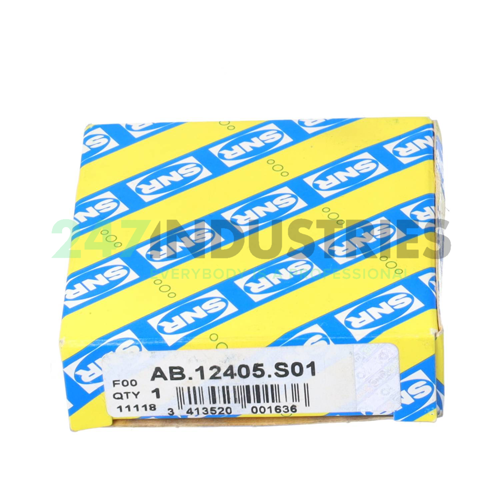

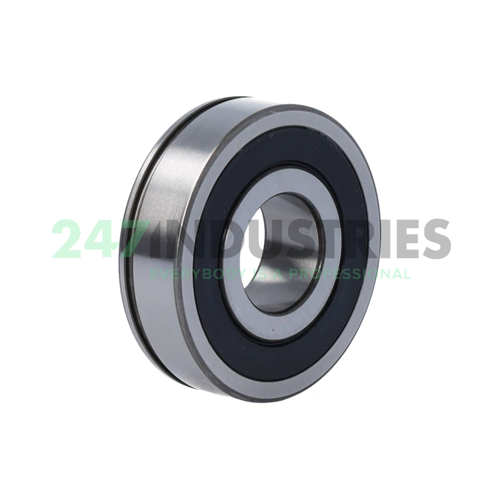

AB12405S01 SNR

All dimensions

1. Inner (d) MM 22
2. Outer (D) MM 56
3. Width (B) MM 16
4. Inner (d) Inch 0.8661
5. Outer (D) Inch 2.2047
6. Width (B) Inch 0.6299

Suffix description

1. S01 Variant Design

Technical details

1. Availability 0 pcs
2. Brand SNR
3. Item number AB12405S01 SNR
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.174

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
