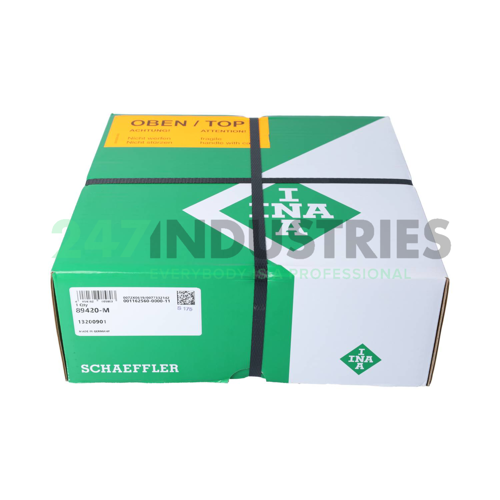

89420-M INA

All dimensions

1. Inner (d) MM 100
2. Outer (D) MM 210
3. Width (B) MM 67
4. Inner (d) Inch 3.937
5. Outer (D) Inch 8.2677
6. Width (B) Inch 2.6378
7. Height (T) mm 67

Suffix description

1. M Machined Brass Cage, Located On The Rolling Elements

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number 89420-M INA
4. Also known as 0011625600000

5. EAN 4054362005803
6. Category Cylindrical Roller Thrust Bearing

Weight and Dimensions

1. Weight (kg) 13.42

Product Properties

1. Cage Type M - Brass Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 2850000
2. Axial Dynamic Load Rating Ca (N) 860000
3. Limiting speed (n G) 1860
4. Reference speed (n ϑr) 720
5. ECLASS number 23-05-11-01
6. ECLASS2 number 23-05-11-01
7. Medias description Axial cylindrical roller bearings 893, single direction, comprising K893, GS, WS
