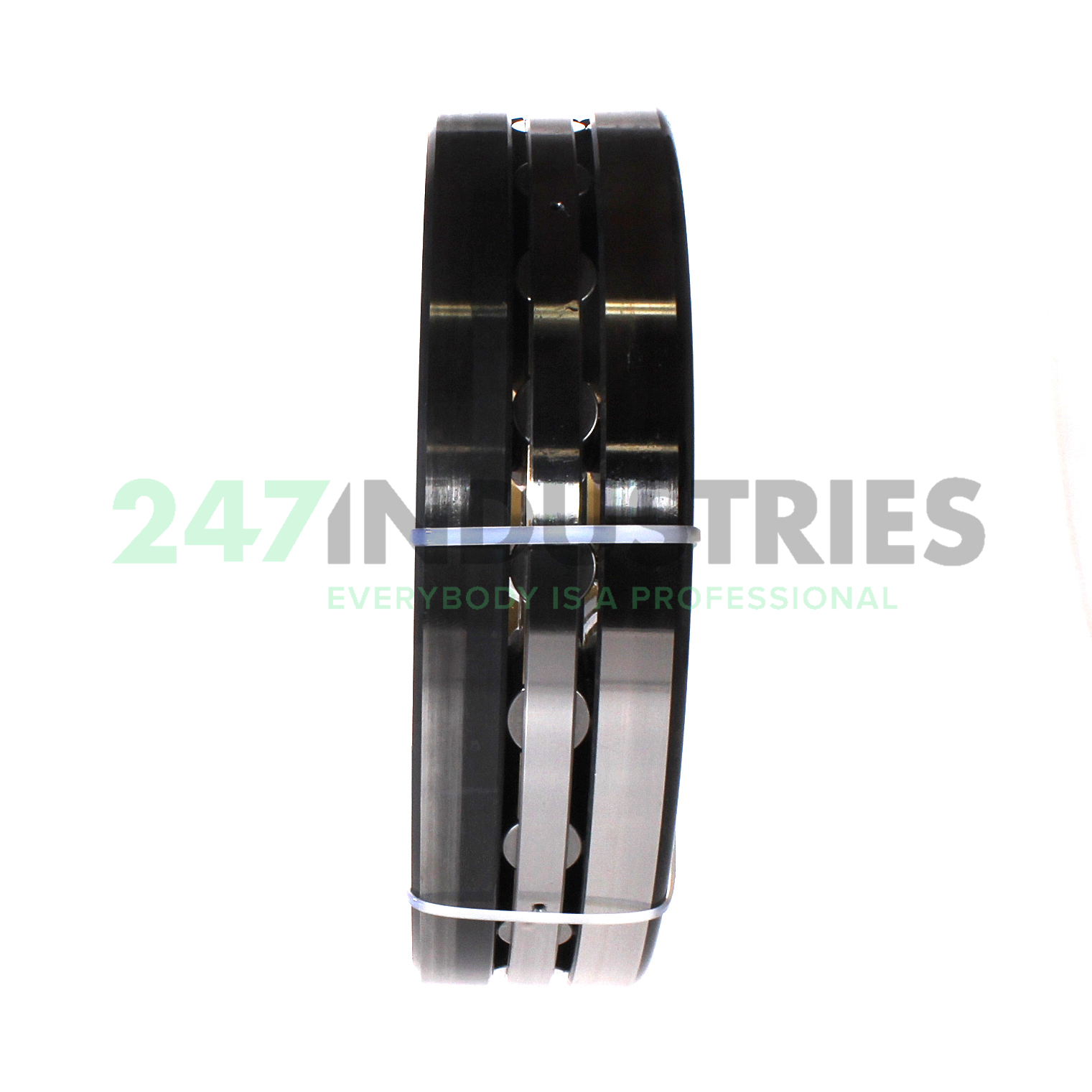

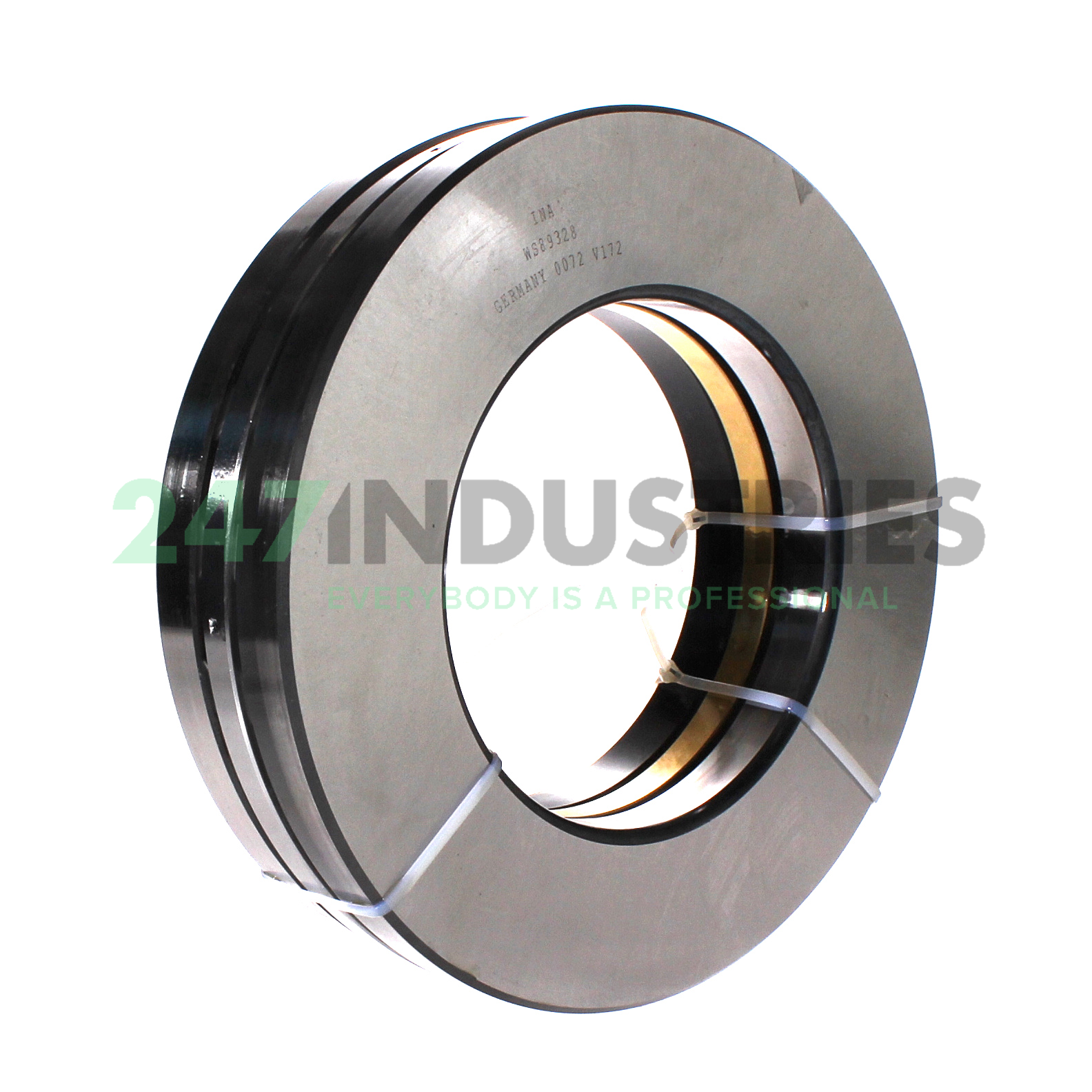

89328-M INA

All dimensions

1. Inner (d) MM 140,00
2. Outer (D) MM 240,00
3. Width (B) MM 60,00
4. Inner (d) Inch 5.5118
5. Outer (D) Inch 9.4488
6. Width (B) Inch 2.3622
7. Height (T) mm 60,00

Suffix description

1. M Machined Brass Cage, Located On The Rolling Elements

Technical details

1. Availability 3 pcs
2. Brand INA
3. Item number 89328-M INA
4. Also known as 0058702830000

5. EAN 4012802420654
6. Category Cylindrical Roller Thrust Bearing

Weight and Dimensions

1. Weight (kg) 13.2

Product Properties

1. Cage Type M - Brass Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "820000.0000"
2. Axial Static Load Rating C0a (N) 3200000
3. Basic static load rating, axial (C 0a) "3200000.0000"
4. Axial Dynamic Load Rating Ca (N) 820000
5. Limiting speed (n G) "1520.0000"
6. Reference speed (n ϑr) "570.0000"
7. ECLASS number 23-05-11-01
8. ECLASS2 number 23-05-11-01
9. Medias description Axial cylindrical roller bearing 893..-M, two-row
