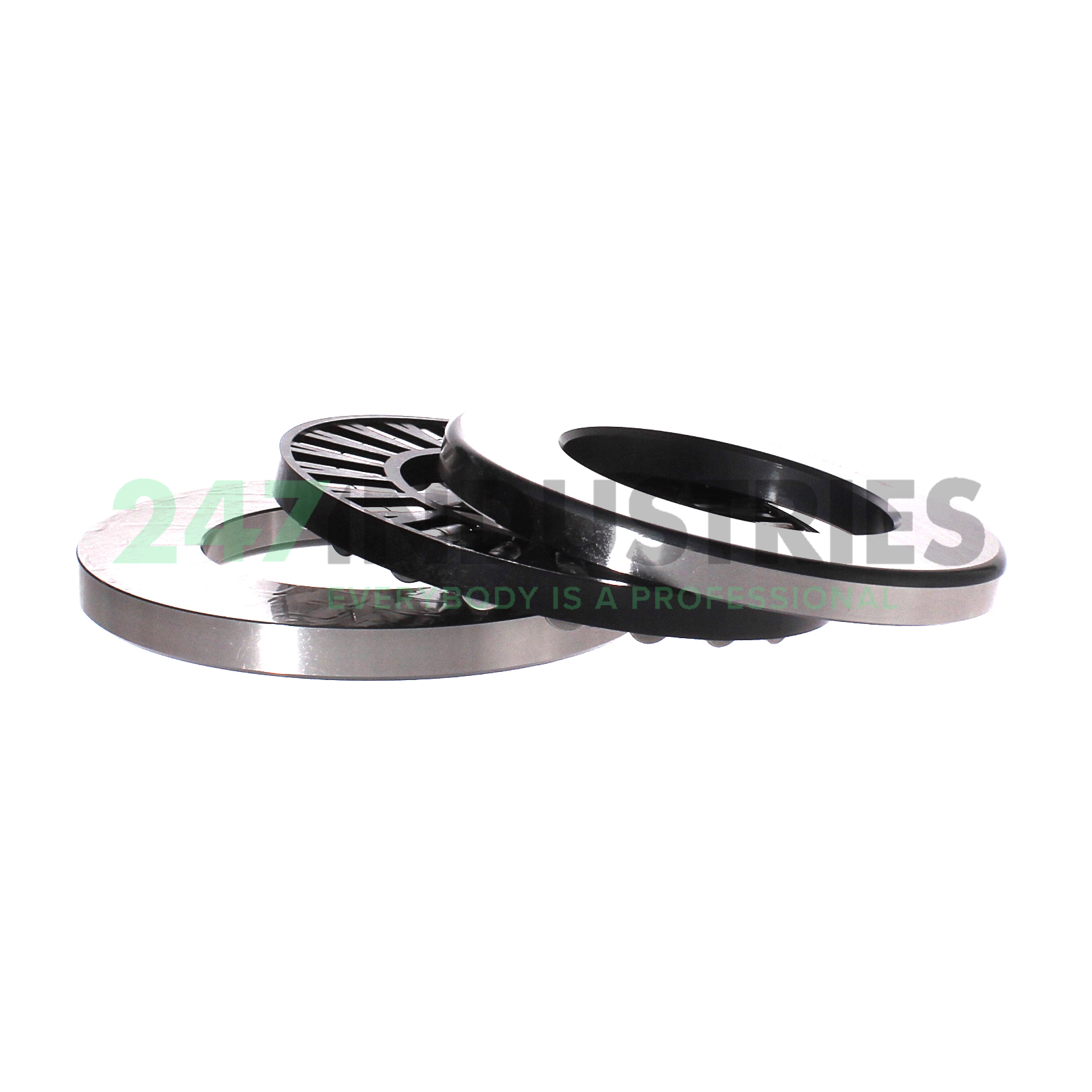

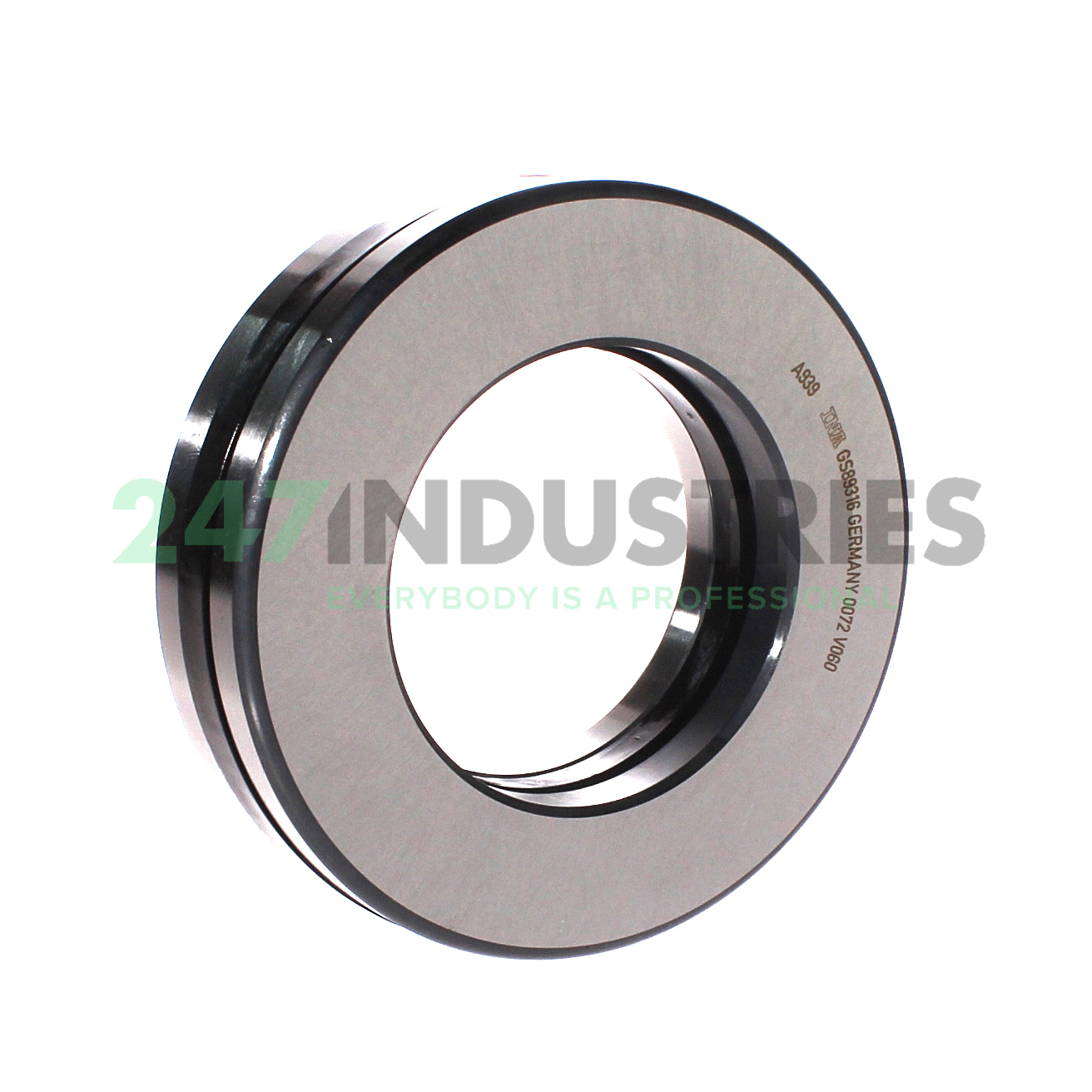

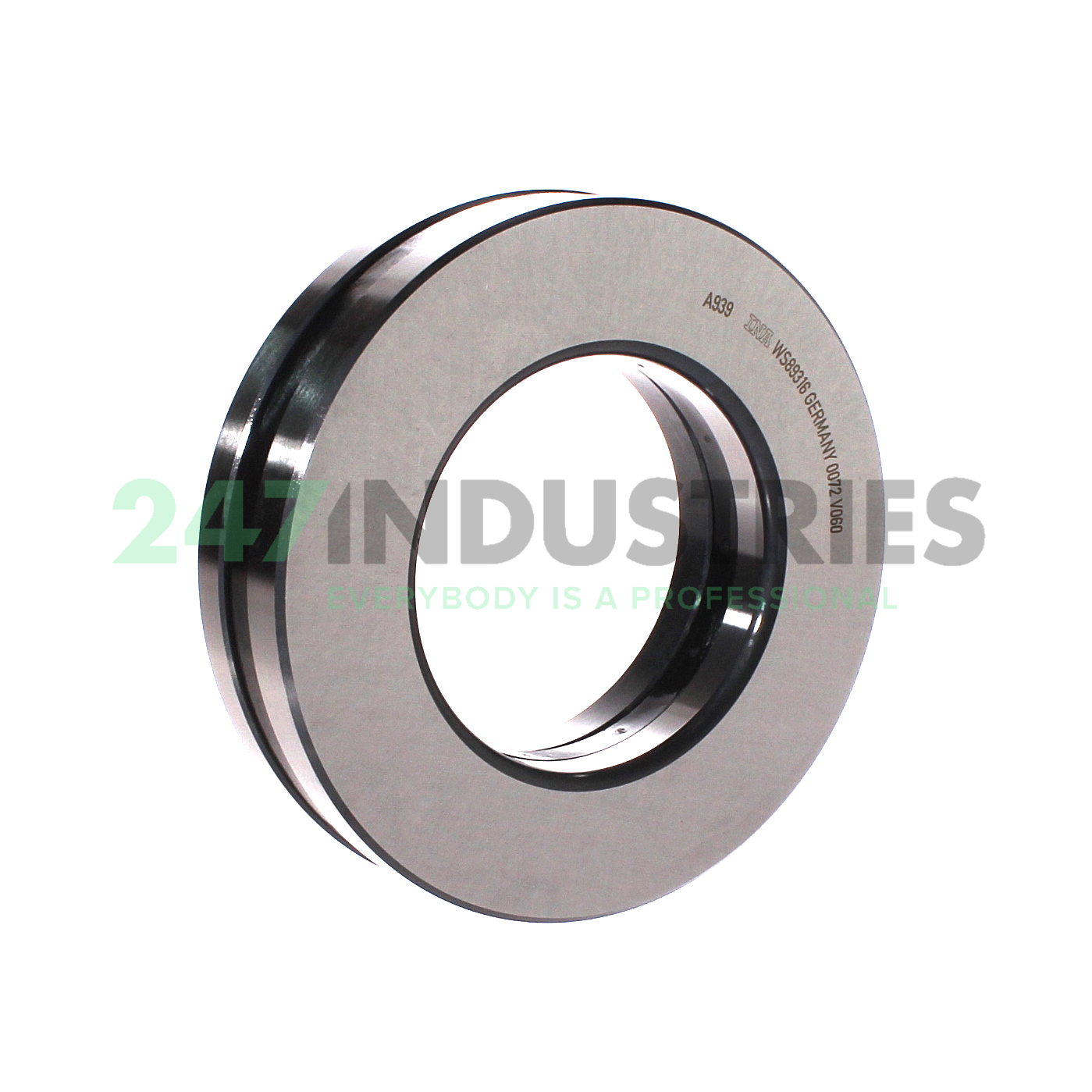

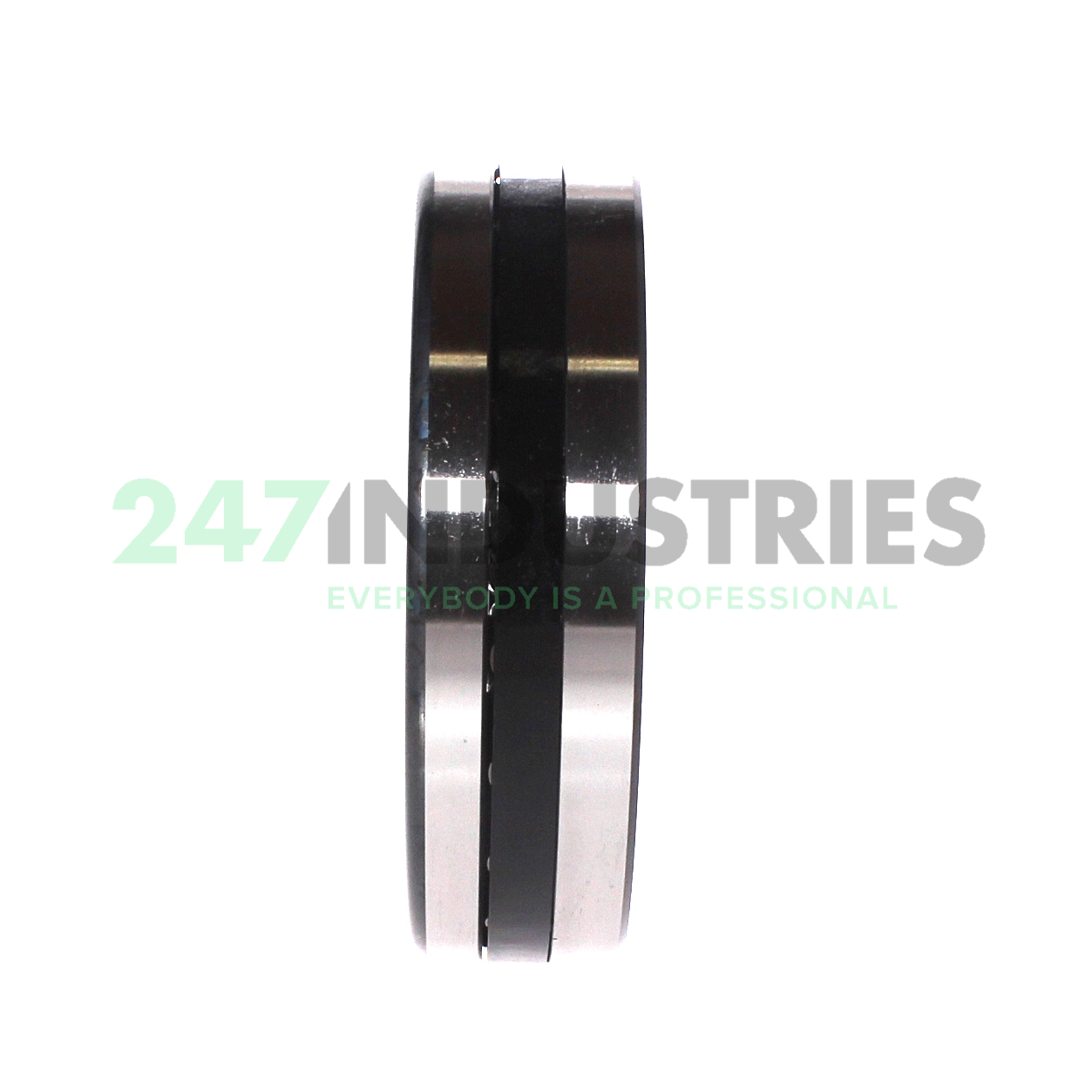

89316-TV INA

All dimensions

1. Inner (d) MM 80,00
2. Outer (D) MM 140,00
3. Width (B) MM 36,00
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 5.5118
6. Width (B) Inch 1.4173
7. Height (T) mm 36,00

Suffix description

1. TV Polyamide Cage

Technical details

1. Availability 5 pcs
2. Brand INA
3. Item number 89316-TV INA
4. Also known as 0003616400000

5. EAN 4012802031270
6. Category Cylindrical Roller Thrust Bearing

Weight and Dimensions

1. Weight (kg) 2.37

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "305000.0000"
2. Axial Static Load Rating C0a (N) 1110000
3. Basic static load rating, axial (C 0a) "1110000.0000"
4. Axial Dynamic Load Rating Ca (N) 305000
5. Limiting speed (n G) "2600.0000"
6. Reference speed (n ϑr) "990.0000"
7. ECLASS number 23-05-11-01
8. ECLASS2 number 23-05-11-01
9. Medias description Axial cylindrical roller bearings 893, single direction, comprising K893, GS, WS
