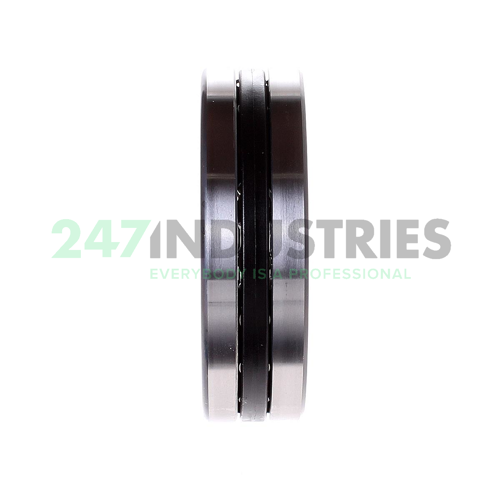

89309-TV INA

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 85
3. Width (B) MM 24
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.3465
6. Width (B) Inch 0.9449
7. Height (T) mm 24

Suffix description

1. TV Polyamide Cage

Technical details

1. Availability 22 pcs
2. Brand INA
3. Item number 89309-TV INA
4. Also known as 0015827200000

5. EAN 4012802707557
6. Category Cylindrical Roller Thrust Bearing

Weight and Dimensions

1. Weight (kg) 0.615

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 445000
2. Axial Dynamic Load Rating Ca (N) 139000
3. Limiting speed (n G) 4450
4. Reference speed (n ϑr) 1620
5. ECLASS number 23-05-11-01
6. ECLASS2 number 23-05-11-01
7. Medias description Axial cylindrical roller bearings 893, single direction, comprising K893, GS, WS

Downloads and links

1. Link to manufacturer Link to manufacturer
