81224-TV INA

€ 559,56 ex VAT
€ 677,07 incl. VAT
€ 677,07 incl. VAT
€ 559,56 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CEST)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

81224-TV INA

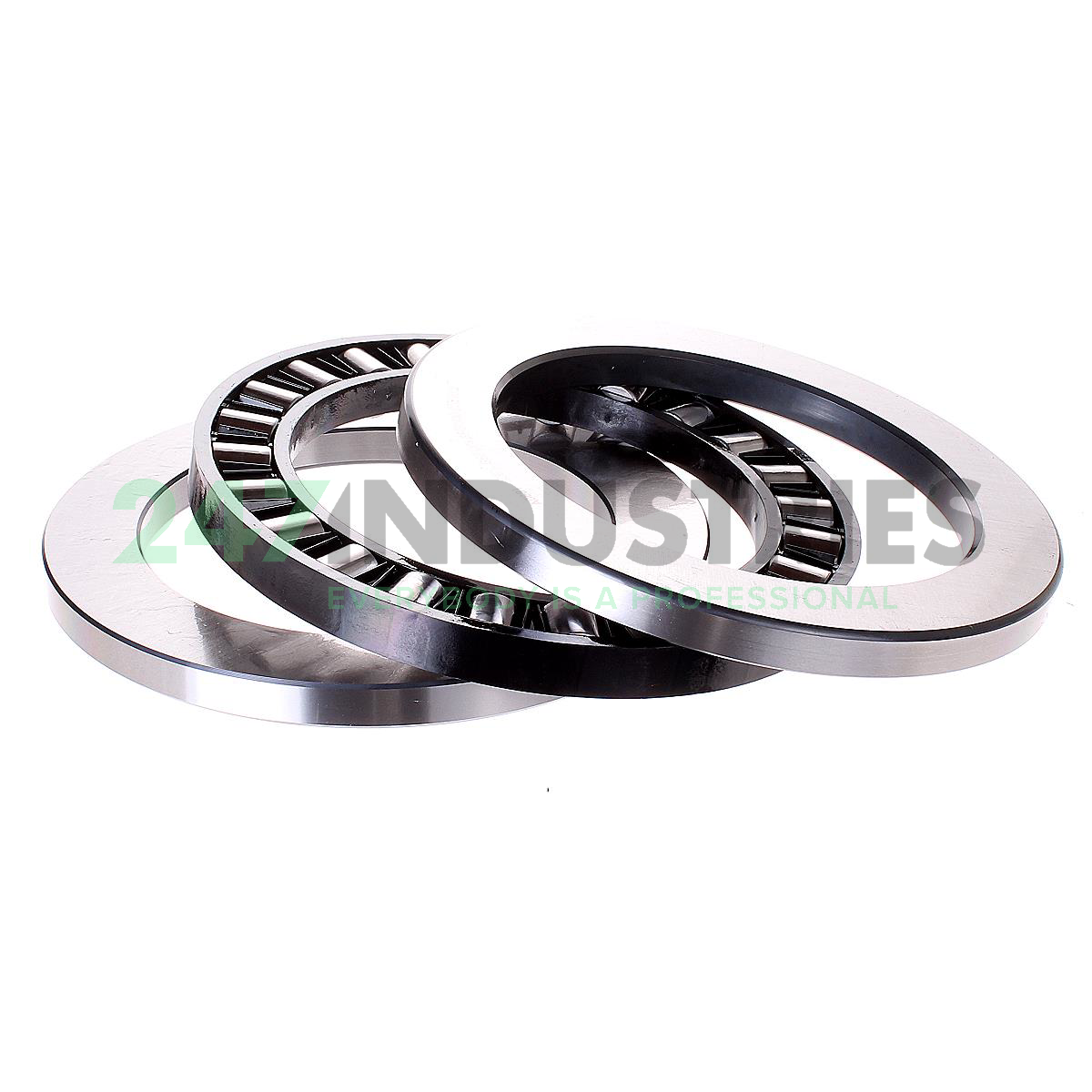

Axial cylindrical roller bearings 812, single direction, comprising K812, GS, WS

Stock
10 pcs in stock and ready for shipment
Brand INA
Article number 81224-TV INA
Inside diameter 120,00mm
Outside diameter 170,00mm
Width 39,00mm
Product description
Read more Show less
Help with this product

Downloads and links

Similar to: 81224-TV INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 120,00
  2. Outer (D) MM 170,00
  3. Width (B) MM 39,00
  4. Inner (d) Inch 4.7244
  5. Outer (D) Inch 6.6929
  6. Width (B) Inch 1.5354
  7. Height (T) mm 39,00

Suffix description

  1. TV Polyamide Cage

Technical details

  1. Availability 10 pcs
  2. Brand INA
  3. Item number 81224-TV INA
  4. Also known as 0000568120000
  5. EAN 4054362005292
  6. Category Cylindrical Roller Thrust Bearing

Weight and Dimensions

  1. Weight (kg) 2.7

Product Properties

  1. Cage Type P - Plastic Molded Cage
  2. Precision Standard Precision

Data from Schaeffler (medias)

  1. Basic dynamic load rating, axial (C a) "340000.0000"
  2. Axial Static Load Rating C0a (N) 1120000
  3. Basic static load rating, axial (C 0a) "1120000.0000"
  4. Axial Dynamic Load Rating Ca (N) 340000
  5. Limiting speed (n G) "1990.0000"
  6. Reference speed (n ϑr) "790.0000"
  7. ECLASS number 23-05-11-01
  8. ECLASS2 number 23-05-11-01
  9. Medias description Axial cylindrical roller bearings 812, single direction, comprising K812, GS, WS
