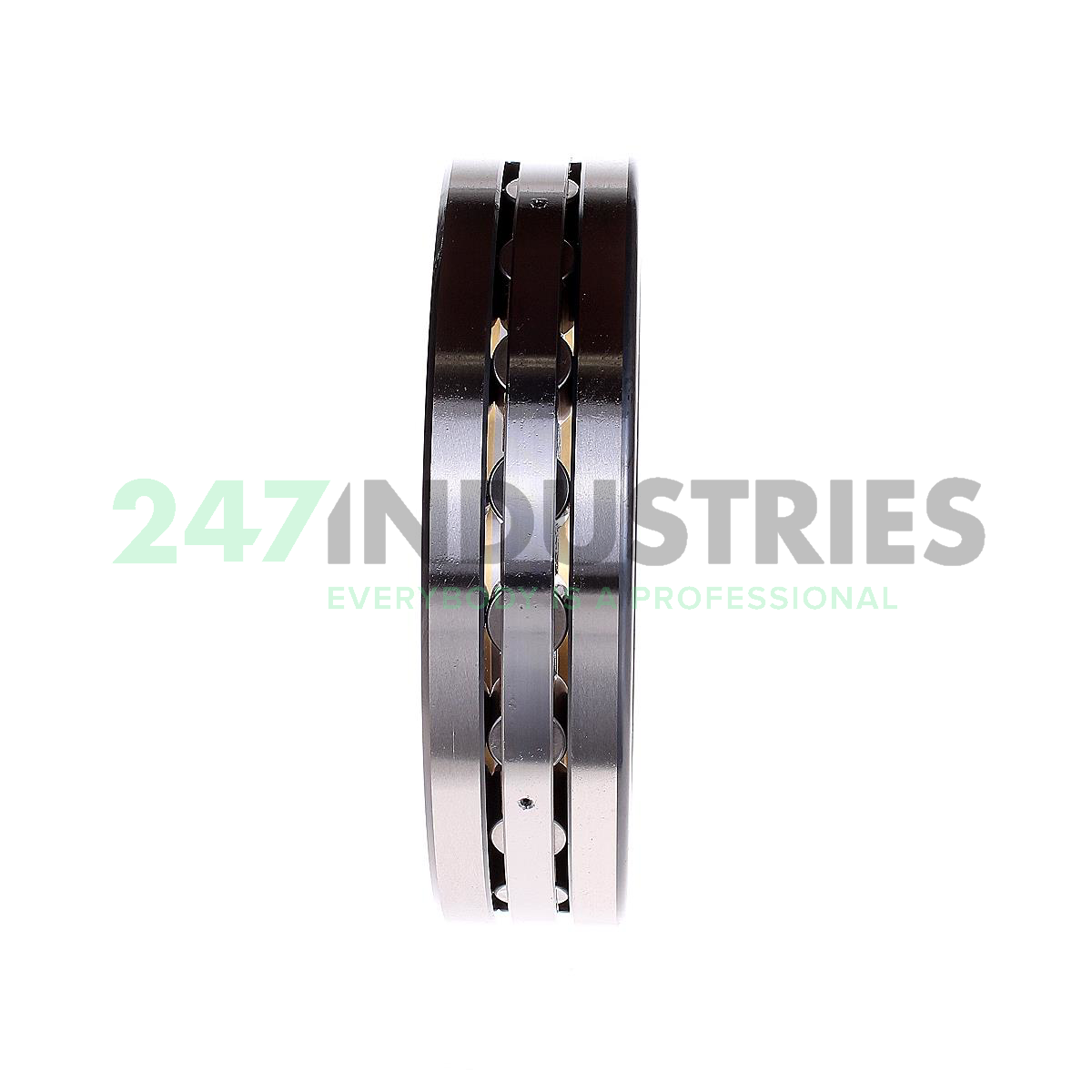

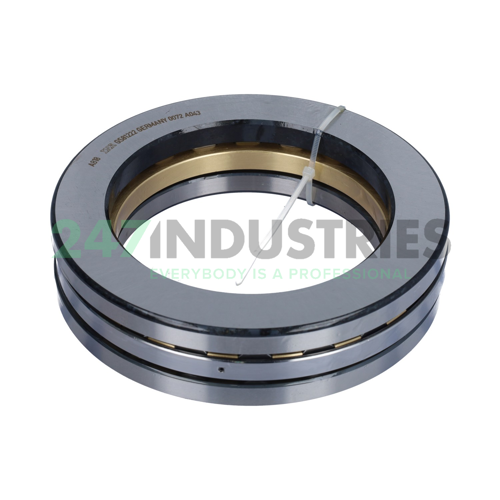

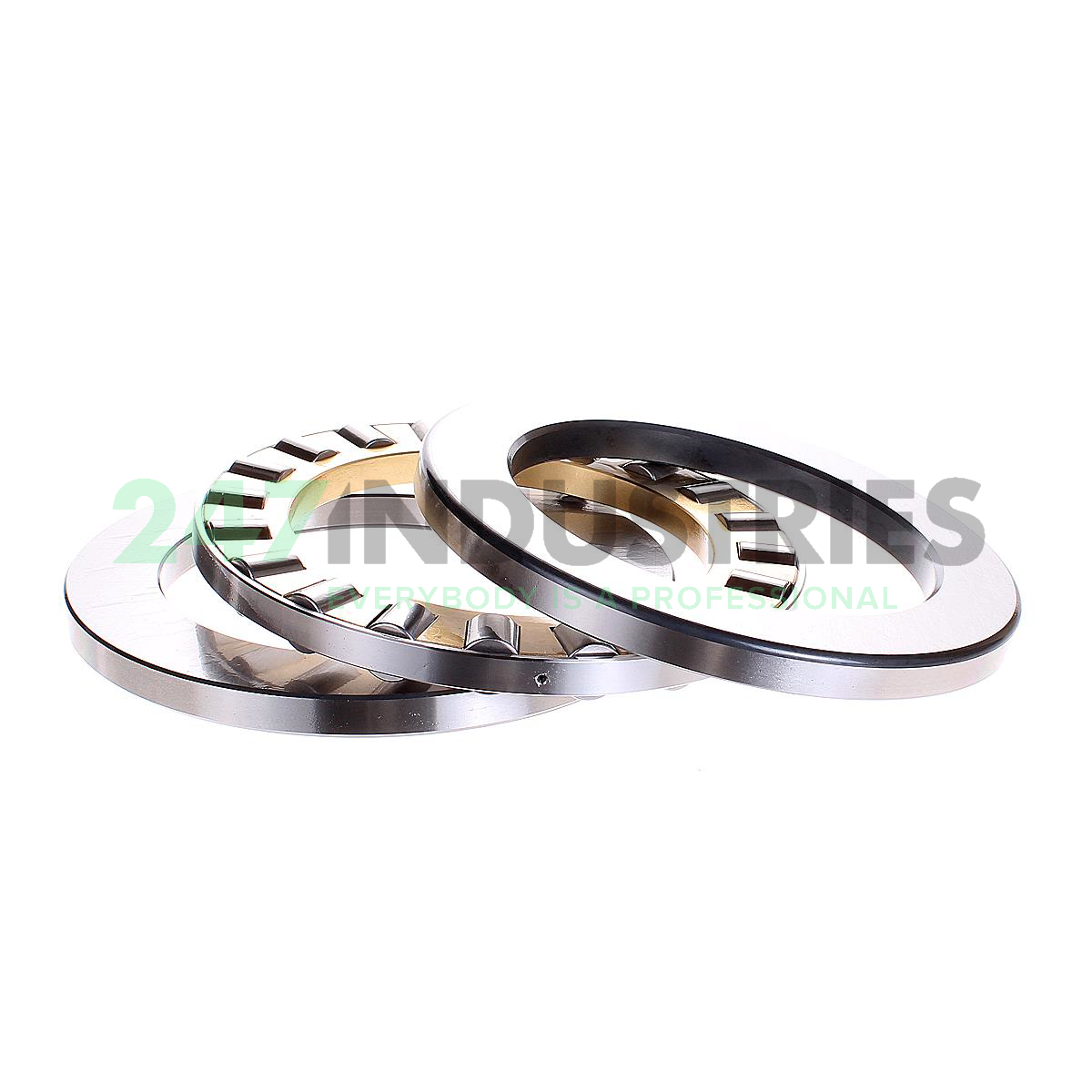

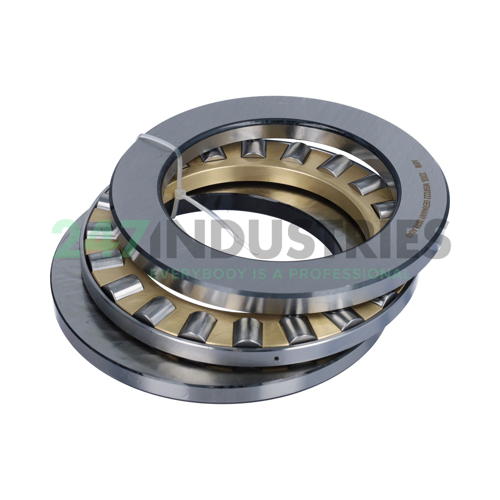

81222-M-A INA

All dimensions

1. Inner (d) MM 110
2. Outer (D) MM 160
3. Width (B) MM 38
4. Inner (d) Inch 4.3307
5. Outer (D) Inch 6.2992
6. Width (B) Inch 1.4961
7. Height (T) mm 38

Suffix description

1. M Machined Brass Cage, Located On The Rolling Elements
2. A Modified Internal Design

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number 81222-M-A INA
4. Also known as 0504457900000

5. EAN 4047643205740
6. Category Cylindrical Roller Thrust Bearing

Weight and Dimensions

1. Weight (kg) 2.45

Product Properties

1. Cage Type M - Brass Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 940000
2. Axial Dynamic Load Rating Ca (N) 300000
3. Limiting speed (n G) 2130
4. Reference speed (n ϑr) 920
5. ECLASS number 23-05-11-01
6. ECLASS2 number 23-05-11-01
7. Medias description Axial cylindrical roller bearing 812..-M, single row
