81210-TV INA

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 78
3. Width (B) MM 22
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 3.0709
6. Width (B) Inch 0.8661
7. Height (T) mm 22

Suffix description

1. TV Polyamide Cage

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number 81210-TV INA
4. Also known as 0007167150000

5. EAN 4012802468533
6. Category Cylindrical Roller Thrust Bearing

Weight and Dimensions

1. Weight (kg) 0.356

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 315000
2. Axial Dynamic Load Rating Ca (N) 118000
3. Limiting speed (n G) 4500
4. Reference speed (n ϑr) 1550
5. ECLASS number 23-05-11-01
6. ECLASS2 number 23-05-11-01

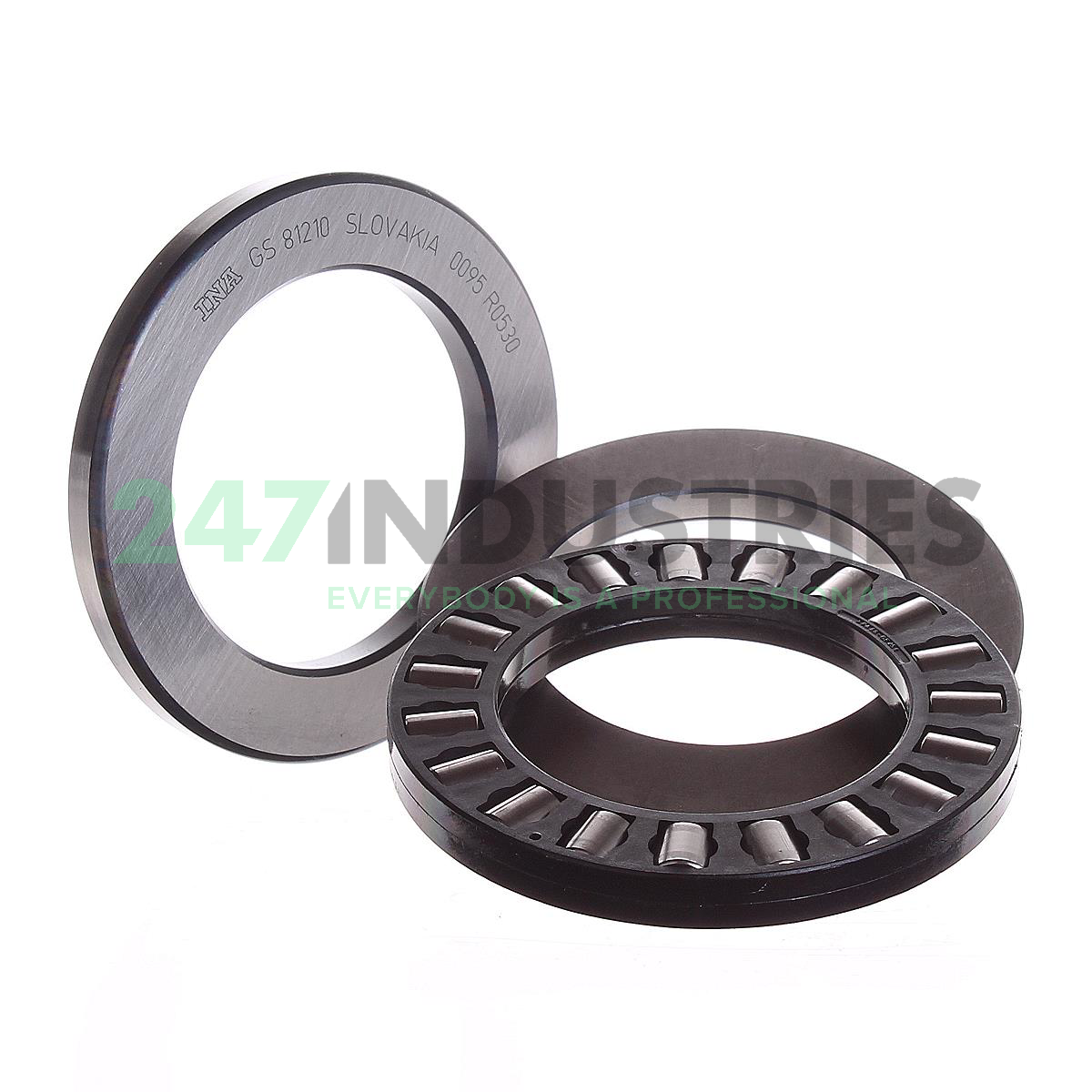

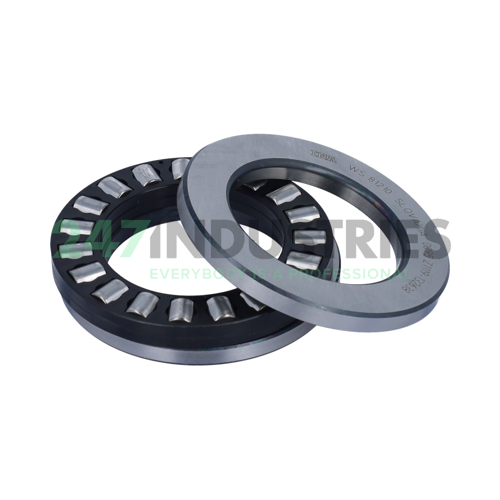

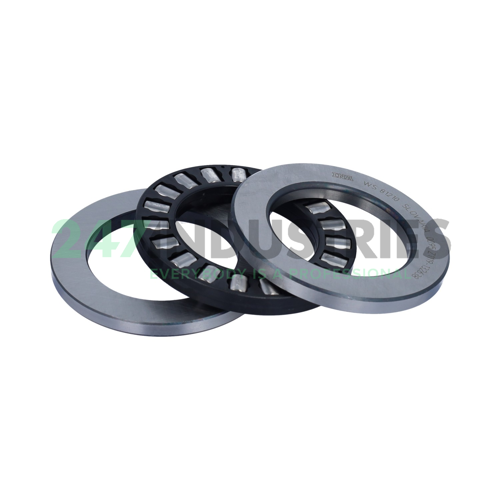

7. Medias description Axial cylindrical roller bearings 812, single direction, comprising K812, GS, WS
