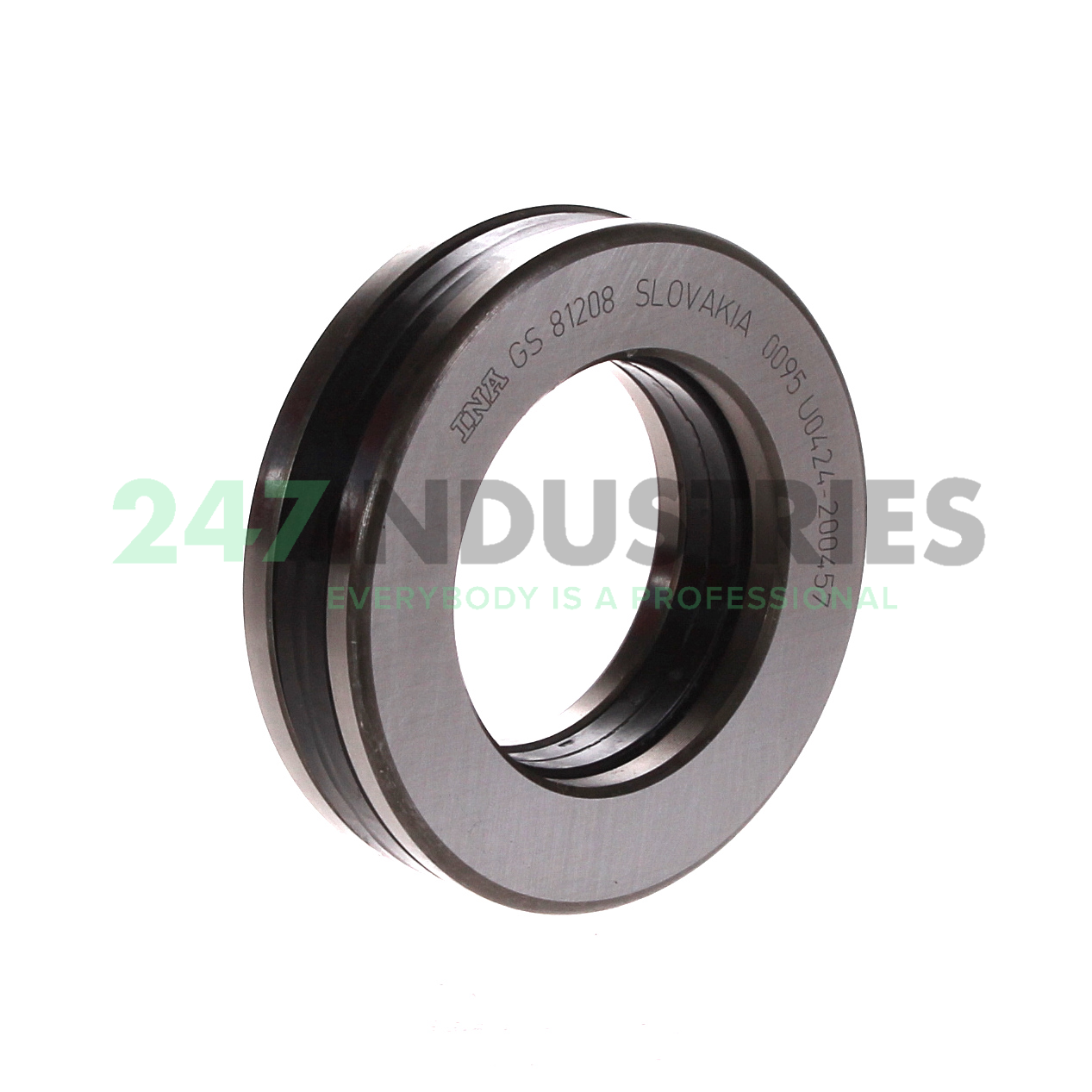

81208-TV INA

All dimensions

1. Inner (d) MM 40,00
2. Outer (D) MM 68,00
3. Width (B) MM 19,00
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.6772
6. Width (B) Inch 0.7480
7. Height (T) mm 19,00

Suffix description

1. TV Polyamide Cage

Technical details

1. Availability 76 pcs
2. Brand INA
3. Item number 81208-TV INA
4. Also known as 0007167070000

5. EAN 4012802422269
6. Category Cylindrical Roller Thrust Bearing

Weight and Dimensions

1. Weight (kg) 0.249

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "107000.0000"
2. Axial Static Load Rating C0a (N) 265000
3. Basic static load rating, axial (C 0a) "265000.0000"
4. Axial Dynamic Load Rating Ca (N) 107000
5. Limiting speed (n G) "5200.0000"
6. Reference speed (n ϑr) "1820.0000"
7. ECLASS number 23-05-11-01
8. ECLASS2 number 23-05-11-01
9. Medias description Axial cylindrical roller bearings 812, single direction, comprising K812, GS, WS
