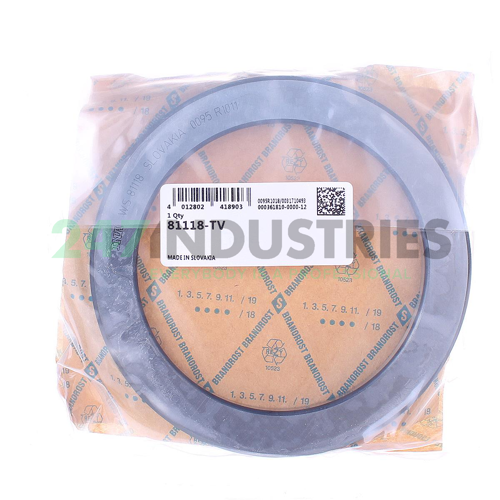

81118-TV INA

All dimensions

1. Inner (d) MM 90,00
2. Outer (D) MM 120,00
3. Width (B) MM 22,00
4. Inner (d) Inch 3.5433
5. Outer (D) Inch 4.7244
6. Width (B) Inch 0.8661
7. Height (T) mm 22,00

Suffix description

1. TV Polyamide Cage

Technical details

1. Availability 16 pcs
2. Brand INA
3. Item number 81118-TV INA
4. Also known as 0003618100000

5. EAN 4012802418903
6. Category Cylindrical Roller Thrust Bearing

Weight and Dimensions

1. Weight (kg) 0.637

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "141000.0000"
2. Axial Static Load Rating C0a (N) 465000
3. Basic static load rating, axial (C 0a) "465000.0000"
4. Axial Dynamic Load Rating Ca (N) 141000
5. Limiting speed (n G) "2750.0000"
6. Reference speed (n ϑr) "1070.0000"
7. ECLASS number 23-05-11-01
8. ECLASS2 number 23-05-11-01
9. Medias description Axial cylindrical roller bearings 811, single direction, comprising K811, GS, WS
