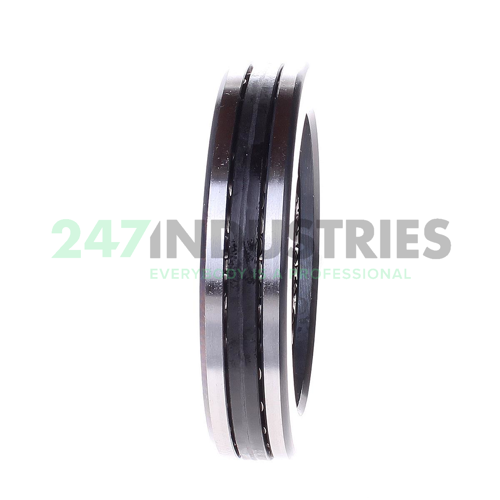

81113-TV INA

All dimensions

1. Inner (d) MM 65,00
2. Outer (D) MM 90,00
3. Width (B) MM 18,00
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.7087
7. Height (T) mm 18,00

Suffix description

1. TV Polyamide Cage

Technical details

1. Availability 20 pcs
2. Brand INA
3. Item number 81113-TV INA
4. Also known as 0006505010000

5. EAN 4012802554069
6. Category Cylindrical Roller Thrust Bearing

Weight and Dimensions

1. Weight (kg) 0.31

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "107000.0000"
2. Axial Static Load Rating C0a (N) 340000
3. Basic static load rating, axial (C 0a) "340000.0000"
4. Axial Dynamic Load Rating Ca (N) 107000
5. Limiting speed (n G) "3700.0000"
6. Reference speed (n ϑr) "1260.0000"
7. ECLASS number 23-05-11-01
8. ECLASS2 number 23-05-11-01

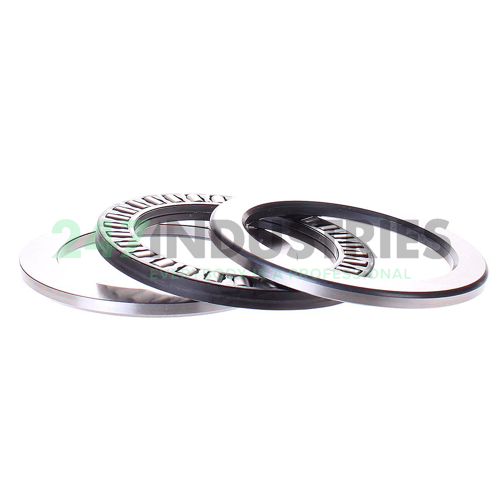

9. Medias description Axial cylindrical roller bearings 811, single direction, comprising K811, GS, WS

Downloads and links

1. Link to manufacturer Link to manufacturer
