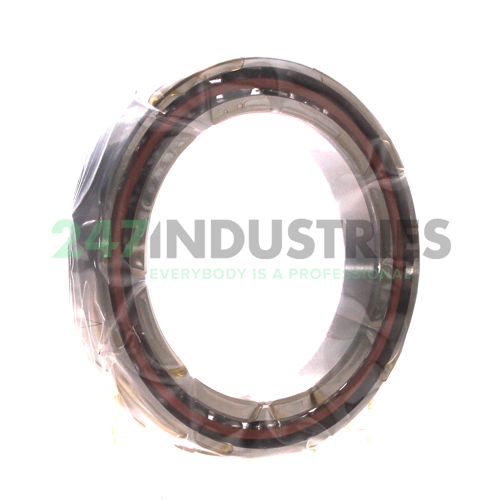

7915CTRSULP3 NSK

All dimensions

1. Inner (d) MM 75
2. Outer (D) MM 105
3. Width (B) MM 16
4. Inner (d) Inch 2.9528
5. Outer (D) Inch 4.1339
6. Width (B) Inch 0.6299

Suffix description

1. C 15° Contact Angle
2. TR Outer Ring Guided Phenolic Cage
3. SUL Single Ball Bearing, Angular Contact, Super Precision, Single Bearing Ground For Universal Mounting, Light Preload
4. P3 Dimensional Accuracy P4, Running Accuracy P2

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 7915CTRSULP3 NSK
4. EAN 00029176621468
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.35

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision Dim. Acc. P4, Run. Acc. P2
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
