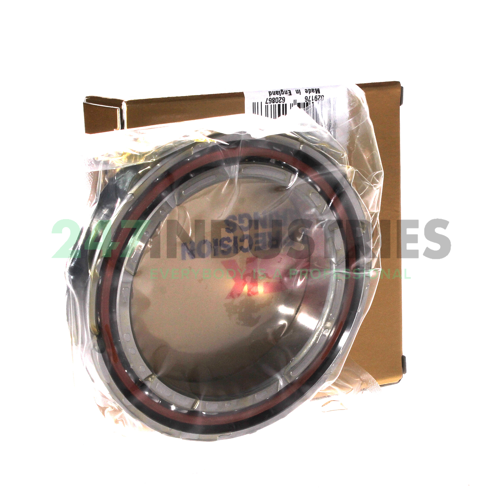

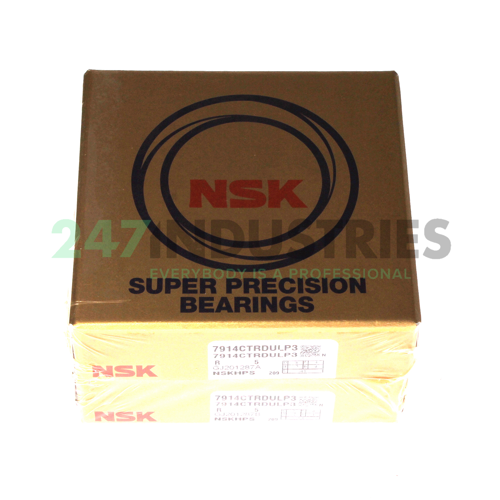

7914CTRDULP3 NSK

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 100
3. Width (B) MM 32
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 3.937
6. Width (B) Inch 1.2598

Suffix description

1. C 15° Contact Angle
2. TR Outer Ring Guided Phenolic Cage
3. DUL Set Of 2 Universal Bearings, Light Preload
4. P3 Dimensional Accuracy P4, Running Accuracy P2

Technical details

1. Availability 4 pcs
2. Brand NSK
3. Item number 7914CTRDULP3 NSK
4. EAN 00029176620867
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.66

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision Dim. Acc. P4, Run. Acc. P2
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload DL - 2 Univ Bearings Light Preload
7. Lubrication Standard Lubrication
