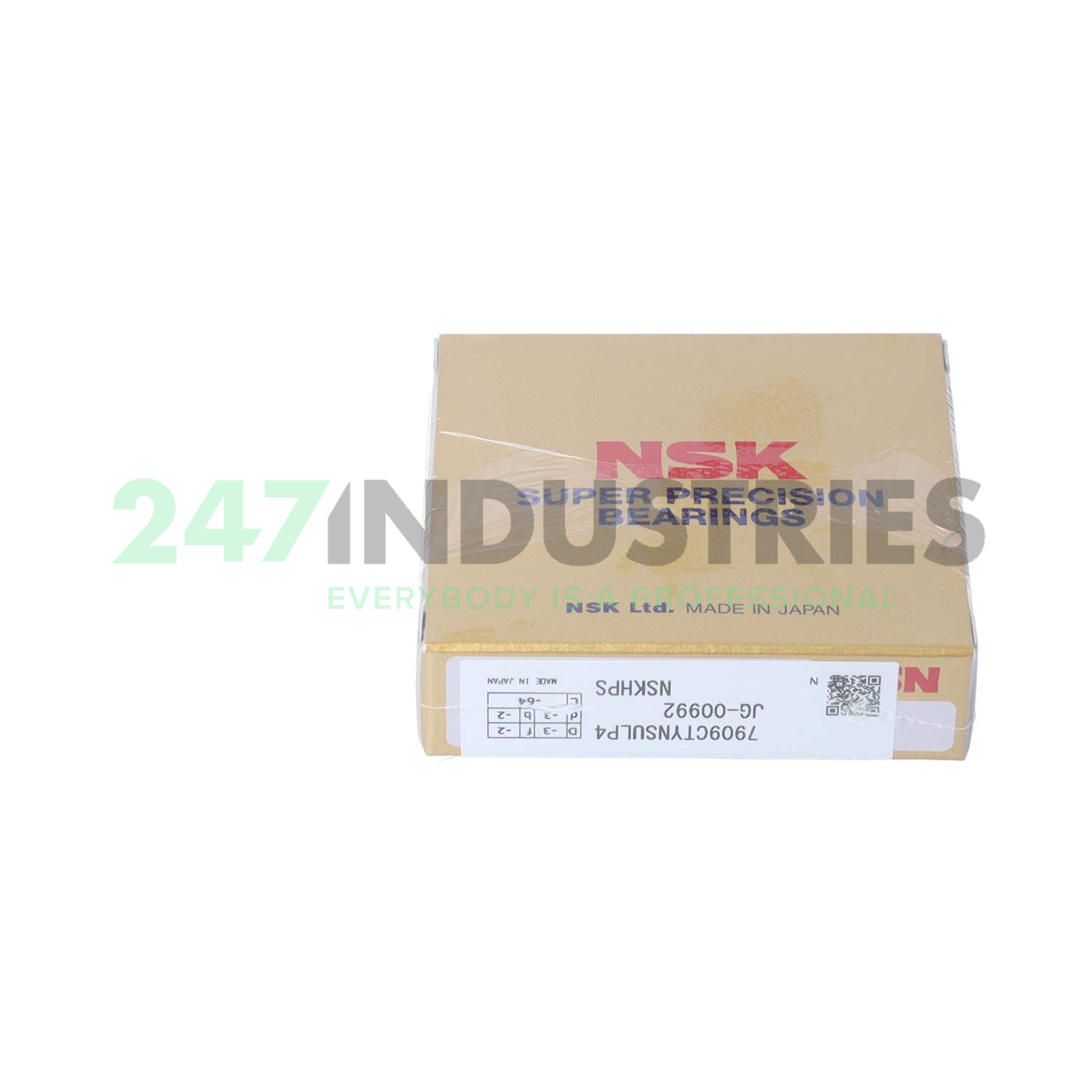

7909C TY SUL P4 NSK

All dimensions

1. Inner (d) MM 45,00
2. Outer (D) MM 68,00
3. Width (B) MM 12,00
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 2.6772
6. Width (B) Inch 0.4724

Suffix description

1. C 15° Contact Angle
2. TY Ball Bearing, Angular Contact, Super Precision, Glass Fibre Reinforced Polyamide Cage
3. SUL Single Universal, Light Preload
4. P4 Iso Tolerance Class 4 (Equivalent to ABEC-7)

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 7909C TY SUL P4 NSK
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.126

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
