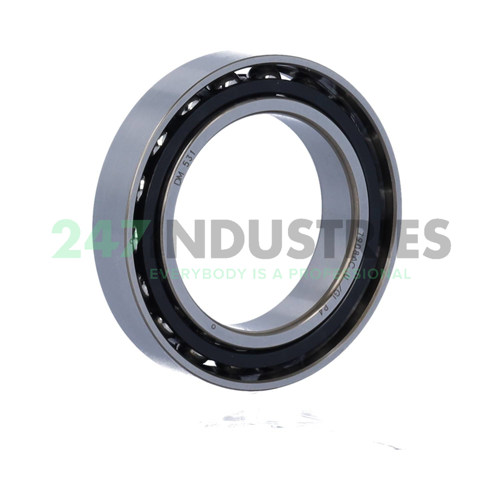

7908ACYDU/GLP4 Nachi

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 62
3. Width (B) MM 24
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.9449

Suffix description

1. AC 25° Contact Angle
2. Y Polyamide Cage
3. DU Flush Ground (Duplex)
4. /GL Light Preload
5. P4 Dimensional & Running Accuracy To Iso Tolerance Class 4 (More Accurate Than P5)-Abec7

Technical details

1. Availability 37 pcs
2. Brand Nachi
3. Item number 7908ACYDU/GLP4 Nachi
4. Also known as 71908ACD/P4ADGA
   B71908-E-T-P4S-DUL

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.22

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload DL - 2 Univ Bearings Light Preload
7. Lubrication Standard Lubrication
