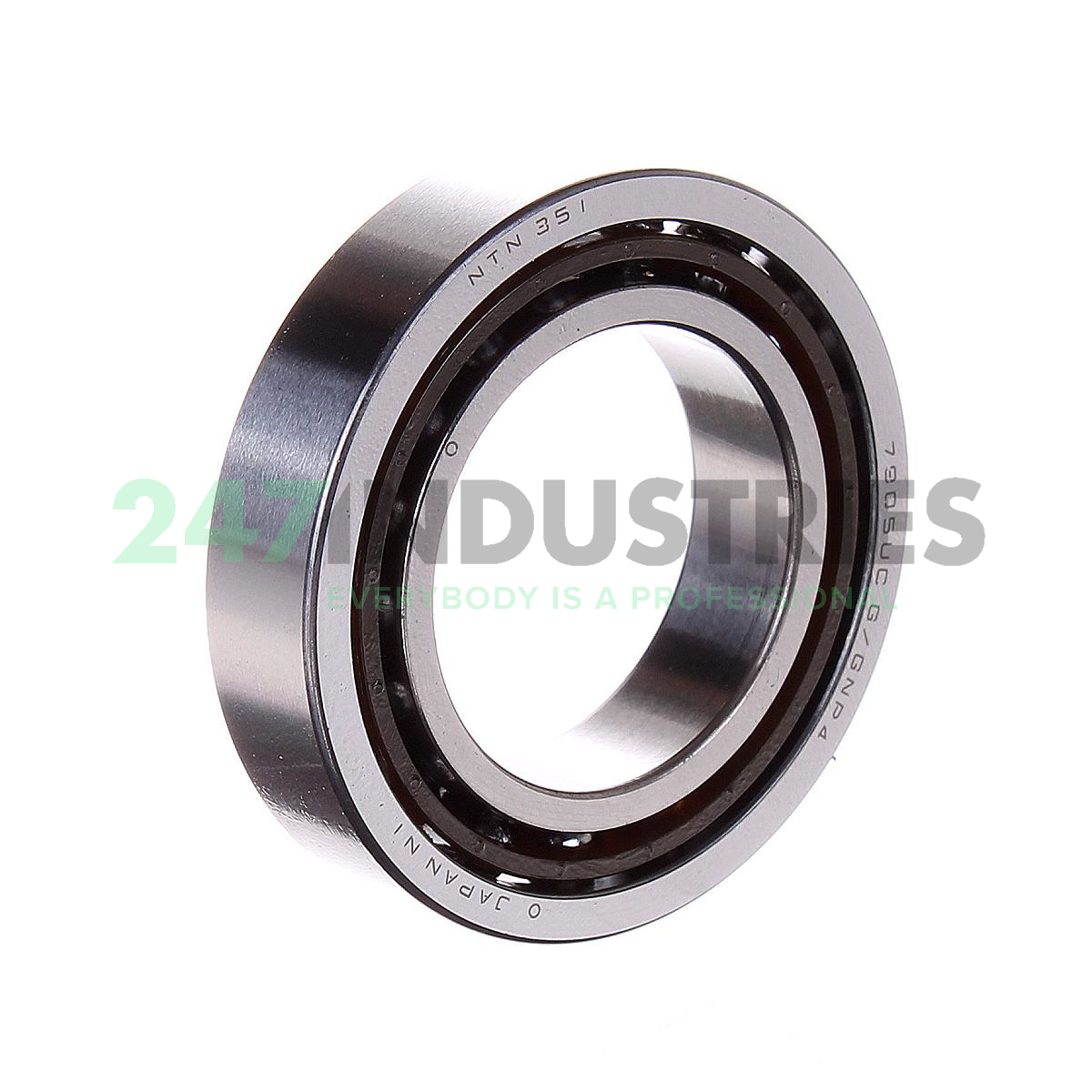

7905UCG/GNP4 NTN

All dimensions

1. Inner (d) MM 25,00
2. Outer (D) MM 42,00
3. Width (B) MM 9,00
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 1.6535
6. Width (B) Inch 0.3543

Suffix description

1. 7226C Machined High Tensile Brass Cage
2. U ULTAGE Series
3. C 15˚ Contact Angle
4. G Single Bearings, Flush Ground Universal Mounting
5. GN Normal Preload
6. P4 Dimensional & Running Accuracy To ISO Tolerance Class 4 (More Accurate Than P5)-ABEC.7

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number 7905UCG/GNP4 NTN
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.042

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload CB - Normal Axial Clearance
7. Lubrication Standard Lubrication
