7804 DPI

Single-row tapered roller bearing

Stock
not in stock
Brand DPI
Article number 7804 DPI
Inside diameter 19,05mm
Outside diameter 45,24mm
Width 16,64mm
Product description

The 7804 DPI is a single-row tapered roller bearing. This bearing type gets its name from the tapered rollers between the inner and outer rings. The raceways are conical. This design allows these versatile bearings to accommodate combined loads. They support high radial and axial loads (in one direction). The greater the contact angle, the greater the axial load capacity.

The 7804 DPI is easy to (dis)assemble as it is a combination of a cup and a cone. The cone unit consists of an inner ring with cage and roller set. The cup is the outer ring. Single-row tapered roller bearings have an open design. Because of the internal construction, they must be mounted in mirror-image arrangement together with a second tapered roller bearing. Paired bearing sets can also be applied in X, O, or tandem arrangements.

Help with this product

Similar to: 7804 DPI

Product
Dimensions/Properties
Stock
Price ex VAT

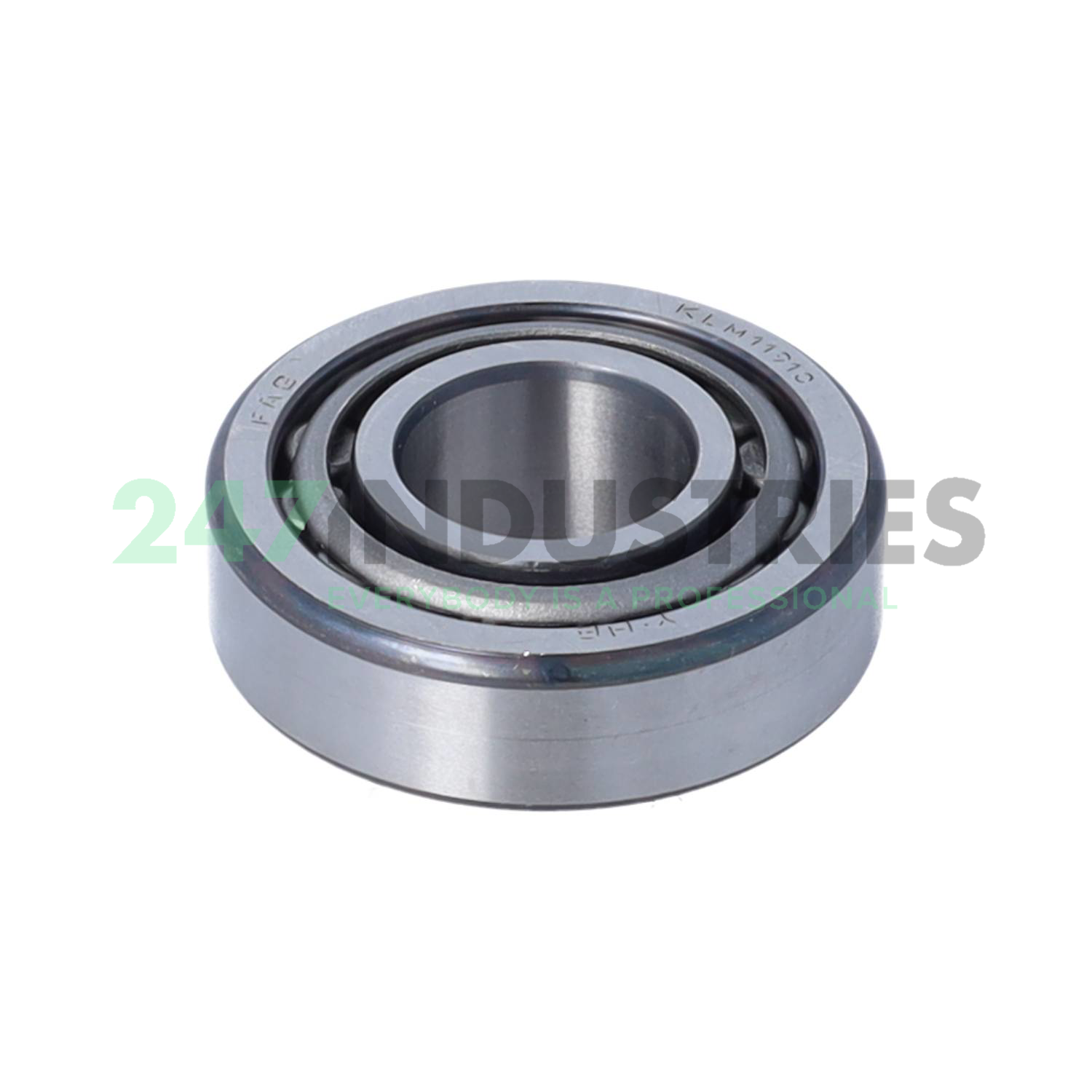

KLM11949-LM11910 FAG
KLM11949-LM11910 FAG
Guaranteed same day shipment on orders placed before 18:00h (CET)
8,22 ex VAT
KLM11949-LM11910 FAG
Guaranteed same day shipment on orders placed before 18:00h (CET)

162 pcs
8,22 ex VAT

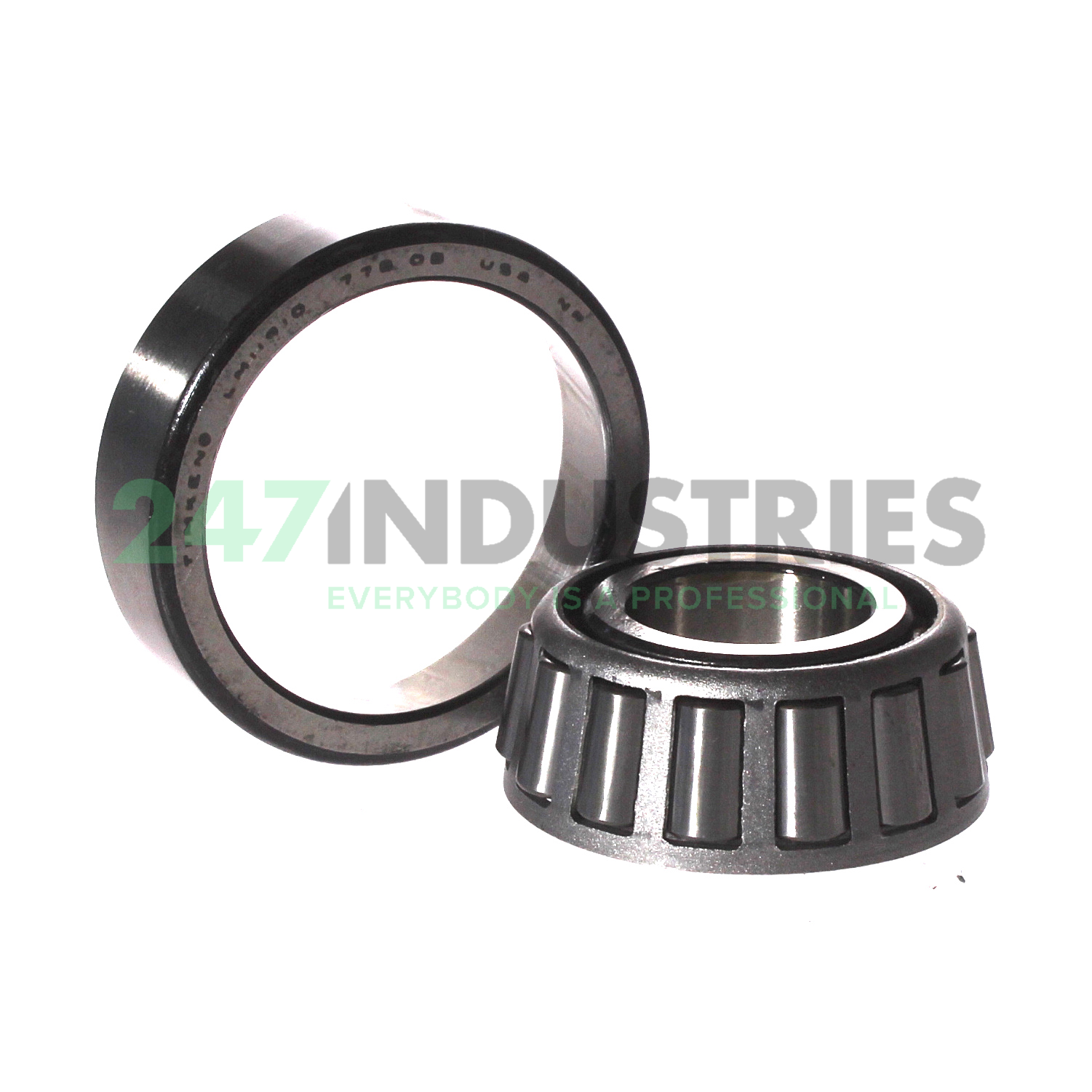

LM11949/LM11910 Timken
LM11949/LM11910 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)
14,34 ex VAT
  • Inside diameter 19,05mm
  • Outside diameter 45,24mm
  • Width 16,64mm
LM11949/LM11910 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)

353 pcs
14,34 ex VAT
LM11949-99401 Timken
LM11949-99401 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)
14,34 ex VAT
  • Inside diameter 19,05mm
  • Outside diameter 45,24mm
  • Width 16,64mm
LM11949-99401 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)

1 pc
14,34 ex VAT
LM11949/910/Q SKF
LM11949/910/Q SKF
Guaranteed same day shipment on orders placed before 18:00h (CET)
11,23 ex VAT
  • Inside diameter 19,05mm
  • Outside diameter 45,24mm
  • Width 16,64mm
LM11949/910/Q SKF
Guaranteed same day shipment on orders placed before 18:00h (CET)

675 pcs
11,23 ex VAT
LM11949R/LM11910R NSK
LM11949R/LM11910R NSK
Guaranteed same day shipment on orders placed before 18:00h (CET)
5,59 ex VAT
  • Inside diameter 19,05mm
  • Outside diameter 45,24mm
  • Width 16,64mm
LM11949R/LM11910R NSK
Guaranteed same day shipment on orders placed before 18:00h (CET)

24 pcs
5,59 ex VAT
Show more (5) Show less

Product specifications

All dimensions

  1. Inner (d) MM 19,05
  2. Outer (D) MM 45,24
  3. Width (B) MM 16,64
  4. Inner (d) Inch 0.75
  5. Outer (D) Inch 1.781
  6. Width (B) Inch 0.6551

Technical details

  1. Availability 0 pcs
  2. Brand DPI
  3. Item number 7804 DPI
  4. Also known as 505508
    LM11949/910
    LM11949/LM11910
  5. Category Tapered Roller Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 0.125

Product Properties

  1. Precision Standard Precision
Show all details Show less
