780 Federal Mogul

Cone for single-row tapered roller bearing

Stock
not in stock
Brand Federal Mogul
Article number 780 Federal Mogul
Inside diameter 101,6mm
Width 48,01mm
Product description

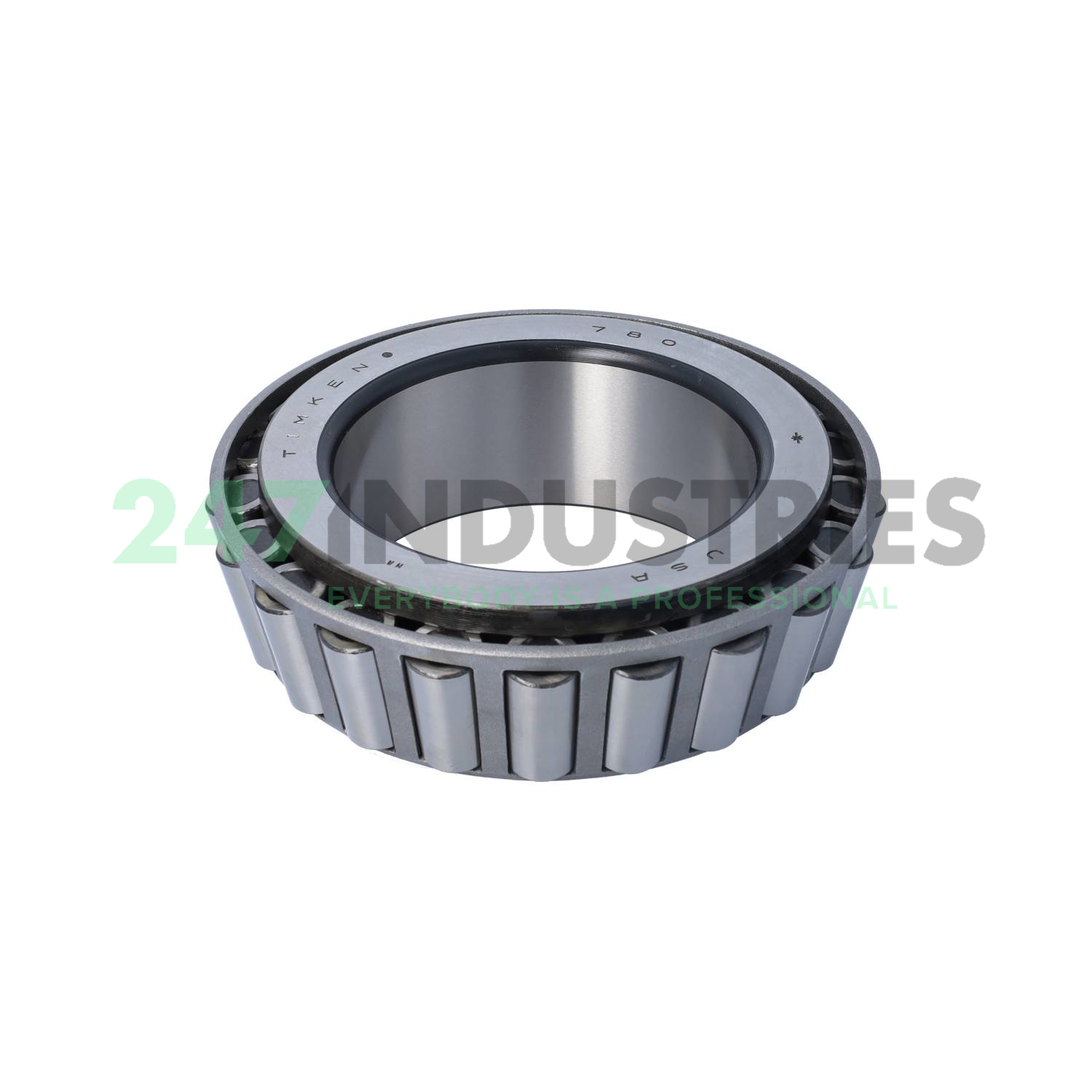

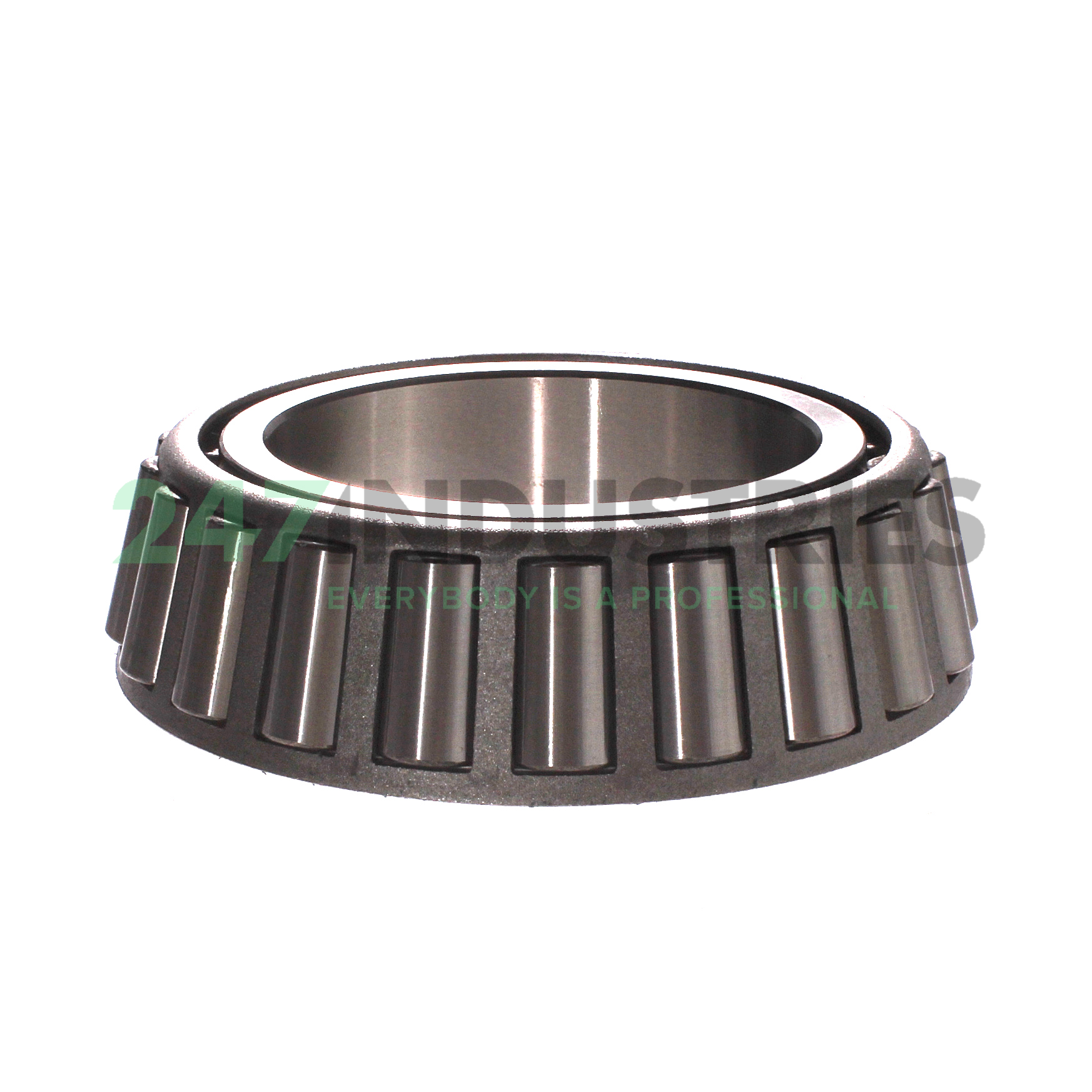

The 780 Federal Mogul is a cone for a single-row tapered roller bearing. This removable cone consists of the inner ring and rollers of the bearing. Together with a separately available cup (or outer ring), these parts make up a complete tapered roller bearing. The inner and outer rings have conical raceways and the rollers are tapered. This design enables tapered roller bearings to absorb radial and axial forces (in one direction).

The geometrical qualities of tapered roller bearings prevent sliding movements between the raceways and rollers. This will keep component wear down to a minimum. However, a minimum load is required for proper bearing operation. Because cone and cup are separable, they can easily be mounted. In addition, end play (axial clearance) or preload can be adjusted by moving the components axially during assembly.

For reliable operation of your bearing, it is best to replace cone and cup at the same time. We recommend taking components from the same manufacturer. This prevents bearing problems caused by different internal bearing profiles, differences in material, and in tolerances. Always combine the 780 Federal Mogul with a matching cup from the same manufacturer.

Read more Show less
Help with this product

Similar to: 780 Federal Mogul

Product
Dimensions/Properties
Stock
Price ex VAT
780 Timken
780 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)
251,11 ex VAT
780 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)

7 pcs
251,11 ex VAT
780-20024 Timken
780-20024 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)
251,11 ex VAT
  • Inside diameter 101,6mm
  • Outside diameter 0mm
  • Width 48,01mm
780-20024 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)

2 pcs
251,11 ex VAT
780 NTN
780 NTN
Guaranteed same day shipment on orders placed before 18:00h (CET)
107,66 ex VAT
  • Inside diameter 101,6mm
  • Outside diameter 0mm
  • Width 48,01mm
780 NTN
Guaranteed same day shipment on orders placed before 18:00h (CET)

2 pcs
107,66 ex VAT

Product specifications

All dimensions

  1. Inner (d) MM 101,6
  2. Width (B) MM 48,01
  3. Inner (d) Inch 4
  4. Width (B) Inch 1.89

Technical details

  1. Availability 0 pcs
  2. Brand Federal Mogul
  3. Item number 780 Federal Mogul
  4. Category Cone for Tapered Roller Bearings Single Row

Weight and Dimensions

  1. Weight (kg) 2.97
