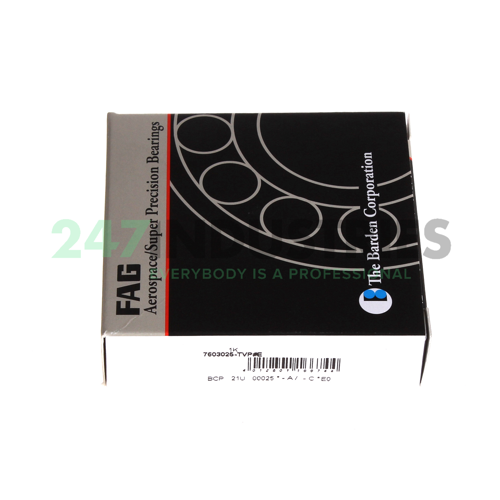

7603025-TVP FAG

All dimensions

1. Inner (d) MM 25,00
2. Outer (D) MM 62,00
3. Width (B) MM 17,00
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6693
7. Width (b) mm 17,00

Suffix description

1. TVP Moulded Polyamide Window-Type Cage, Rolling Element Riding

Technical details

1. Availability 23 pcs
2. Brand FAG
3. Item number 7603025-TVP FAG
4. Also known as 0191193560000
   BSA305
   BSA305C
   BSA305CGA
   BSD2562DB
   MM25BS62DUH

5. EAN 4012801166744
6. Category Angular Contact Thrust Ball Bearings, Single Direction

Weight and Dimensions

1. Weight (kg) 0.273

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "29500.0000"
2. Axial Static Load Rating C0a (N) 68000
3. Basic static load rating, axial (C 0a) "68000.0000"
4. Axial Dynamic Load Rating Ca (N) 29500
5. Limiting speed for grease lubrication (n G Grease) "6800.0000"
6. Thermally safe operating speed (n ϑ) "3800.0000"
7. ECLASS number 23-05-10-02
8. ECLASS2 number 23-05-10-02
9. Medias description Axial angular contact ball bearings 7603, single direction, with contact angle a = 60°, restricted tolerances
