7602030-TVP FAG

€ 165,72 ex VAT
€ 200,52 incl. VAT
€ 200,52 incl. VAT
€ 165,72 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CEST)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

7602030-TVP FAG

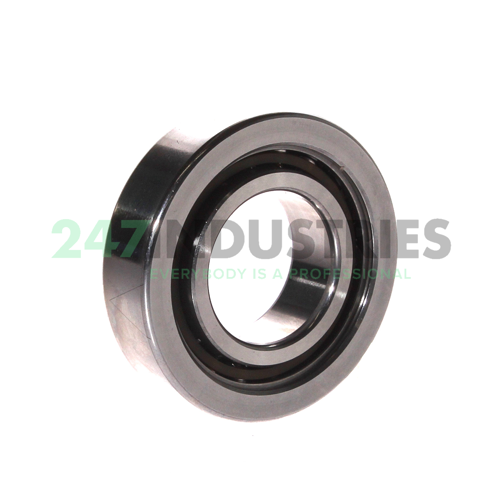

Axial angular contact ball bearings 7602, single direction, with contact angle α = 60°, restricted tolerances

Stock
20 pcs in stock and ready for shipment
Brand FAG
Article number 7602030-TVP FAG
Inside diameter 30,00mm
Outside diameter 62,00mm
Width 16,00mm
Product description
Read more Show less
Help with this product

Downloads and links

Similar to: 7602030-TVP FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 30,00
  2. Outer (D) MM 62,00
  3. Width (B) MM 16,00
  4. Inner (d) Inch 1.1811
  5. Outer (D) Inch 2.4409
  6. Width (B) Inch 0.6299
  7. Width (b) mm 16,00

Suffix description

  1. TVP Moulded Polyamide Window-Type Cage, Rolling Element Riding

Technical details

  1. Availability 20 pcs
  2. Brand FAG
  3. Item number 7602030-TVP FAG
  4. Also known as 0383772680000
    30TAC62DB
    BSA206P
    BSD3062DB
    MM30BS62DUH
  5. EAN 4012801166690
  6. Category Angular Contact Thrust Ball Bearings, Single Direction

Weight and Dimensions

  1. Weight (kg) 0.226

Product Properties

  1. Cage Type P - Plastic Molded Cage
  2. Precision Standard Precision

Data from Schaeffler (medias)

  1. Basic dynamic load rating, axial (C a) "27500.0000"
  2. Axial Static Load Rating C0a (N) 66000
  3. Basic static load rating, axial (C 0a) "66000.0000"
  4. Axial Dynamic Load Rating Ca (N) 27500
  5. Limiting speed for grease lubrication (n G Grease) "6700.0000"
  6. Thermally safe operating speed (n ϑ) "3800.0000"
  7. ECLASS number 23-05-10-02
  8. ECLASS2 number 23-05-10-02
  9. Medias description Axial angular contact ball bearing 7602..-TVP, single direction, no screw mounting
