760 CBF

Cone for single-row tapered roller bearing

Stock
not in stock
Brand CBF
Article number 760 CBF
Inside diameter 90,4875mm
Product description

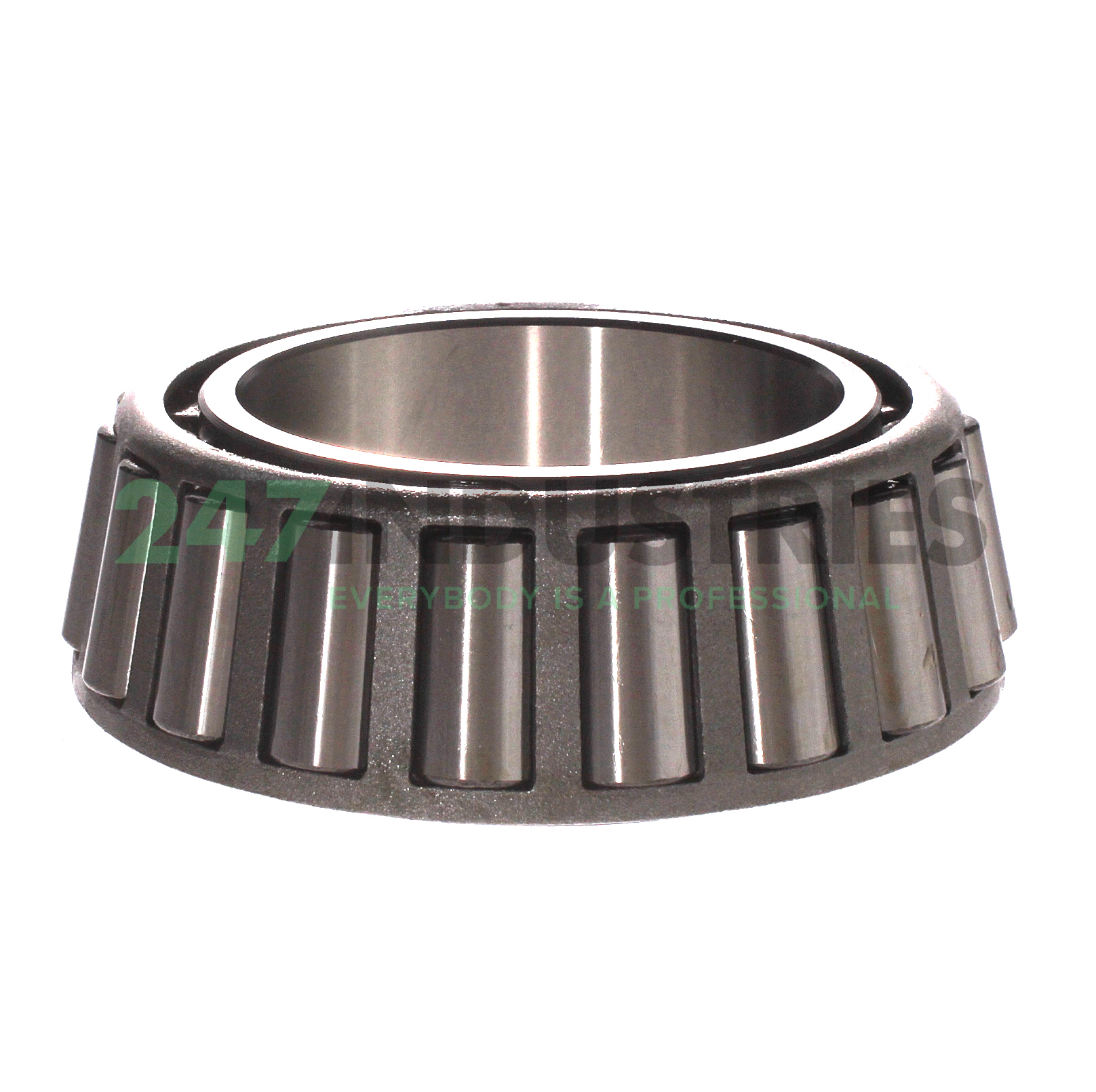

The 760 CBF is a cone for a single-row tapered roller bearing. This removable cone consists of the inner ring and rollers of the bearing. Together with a separately available cup (or outer ring), these parts make up a complete tapered roller bearing. The inner and outer rings have conical raceways and the rollers are tapered. This design enables tapered roller bearings to absorb radial and axial forces (in one direction).

The geometrical qualities of tapered roller bearings prevent sliding movements between the raceways and rollers. This will keep component wear down to a minimum. However, a minimum load is required for proper bearing operation. Because cone and cup are separable, they can easily be mounted. In addition, end play (axial clearance) or preload can be adjusted by moving the components axially during assembly.

For reliable operation of your bearing, it is best to replace cone and cup at the same time. We recommend taking components from the same manufacturer. This prevents bearing problems caused by different internal bearing profiles, differences in material, and in tolerances. Always combine the 760 CBF with a matching cup from the same manufacturer.

Read more Show less
Help with this product

Similar to: 760 CBF

Product
Dimensions/Properties
Stock
Price ex VAT
760 Timken
760 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)
196,26 ex VAT
  • Inside diameter 90,4875mm
  • Outside diameter 0mm
  • Width 0mm
760 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)

6 pcs
196,26 ex VAT
4T-760 NTN
4T-760 NTN
Guaranteed same day shipment on orders placed before 18:00h (CET)
104,94 ex VAT
  • Inside diameter 90,4875mm
  • Outside diameter 0mm
  • Width 0mm
4T-760 NTN
Guaranteed same day shipment on orders placed before 18:00h (CET)

9 pcs
104,94 ex VAT

Product specifications

All dimensions

  1. Inner (d) MM 90,4875
  2. Inner (d) Inch 3.5625

Technical details

  1. Availability 0 pcs
  2. Brand CBF
  3. Item number 760 CBF
  4. Category Cone for Tapered Roller Bearings Single Row

Weight and Dimensions

  1. Weight (kg) 2.22
