7411B.MP FAG

292,20 ex VAT
€ 353,56 in VAT
€ 353,56 in VAT
292,20 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CEST)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

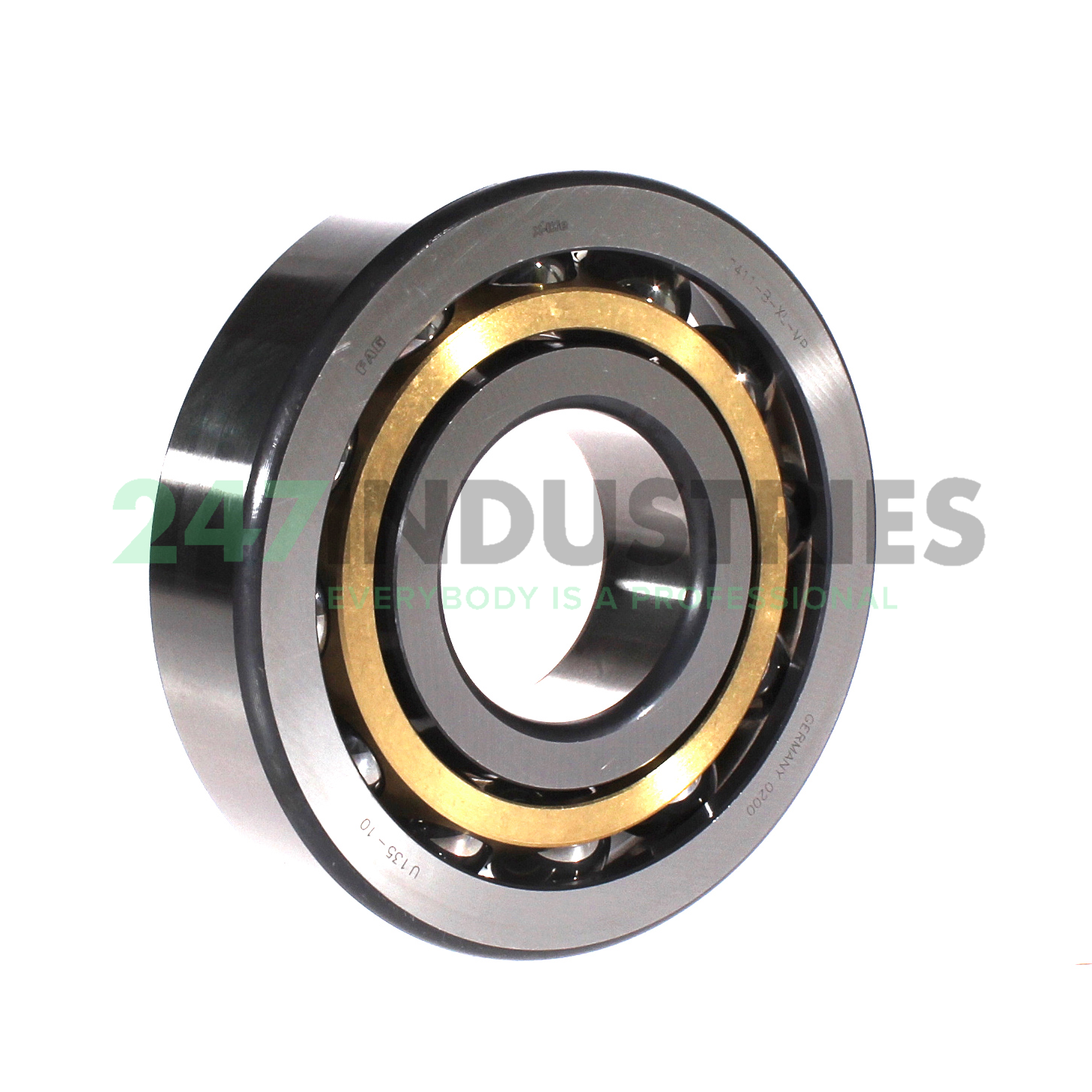

7411B.MP FAG

Single row angular contact ball bearing

Stock
6 pcs in stock and ready for shipment
Brand FAG
Article number 7411B.MP FAG
Inside diameter 55mm
Outside diameter 140mm
Width 33mm
Product description

The 7411B.MP FAG is a single row angular contact bearing. These bearings have solid inner- and outer rings. They owe their name to the contact angle that is created as the raceways of the inner and outer rings are offset from each other along the bearing axis. The bearing rings have one high and one low shoulder. Thanks to the low shoulder, a large number of balls can be incorporated in the bearing. Single row angular contact bearings can support high radial forces and axial forces in one direction. The greater the contact angle, the greater the axial load capacity of the bearing.

Help with this product

Downloads and links

Similar to: 7411B.MP FAG

Product
Dimensions/Properties
Stock
Price ex VAT
7411-B-XL-MP FAG
7411-B-XL-MP FAG
Guaranteed same day shipment on orders placed before 18:00h (CET)
292,20 ex VAT
7411-B-XL-MP FAG
Guaranteed same day shipment on orders placed before 18:00h (CET)

7 pcs
292,20 ex VAT
7411B FY Koyo (JTEKT)
7411B FY Koyo (JTEKT)
Guaranteed same day shipment on orders placed before 18:00h (CET)
208,88 ex VAT
  • Inside diameter 55mm
  • Outside diameter 140mm
  • Width 33mm
7411B FY Koyo (JTEKT)
Guaranteed same day shipment on orders placed before 18:00h (CET)

1 pc
208,88 ex VAT

Product specifications

All dimensions

  1. Inner (d) MM 55
  2. Outer (D) MM 140
  3. Width (B) MM 33
  4. Inner (d) Inch 2.1654
  5. Outer (D) Inch 5.5118
  6. Width (B) Inch 1.2992

Suffix description

  1. B 40° Contact Angle
  2. MP Machined Brass Cage, Window Type, Rolling Element Riding

Technical details

  1. Availability 6 pcs
  2. Brand FAG
  3. Item number 7411B.MP FAG
  4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 2.69

Product Properties

  1. Seal No Seal
  2. Cage Type M - Brass Cage
  3. Precision Standard Precision
  4. Contact Angle 40 degrees
  5. Pairing No pairing
  6. Axial Internal Clearance / Preload No Preload
  7. Lubrication Standard Lubrication

Downloads and links

  1. Link to manufacturer Link to manufacturer
Show all details Show less

Order this product

7411B.MP FAG

7411B.MP FAG

6 pcs in stock and ready for shipment
Guaranteed same day shipment on orders placed before 18:00h (CET)
292,20 ex VAT
292,20 ex VAT

7411B.MP FAG

6 pcs in stock and ready for shipment
Guaranteed same day shipment on orders placed before 18:00h (CET)
UPS TNT iDeal, Mastercard, Visa, Paypall
