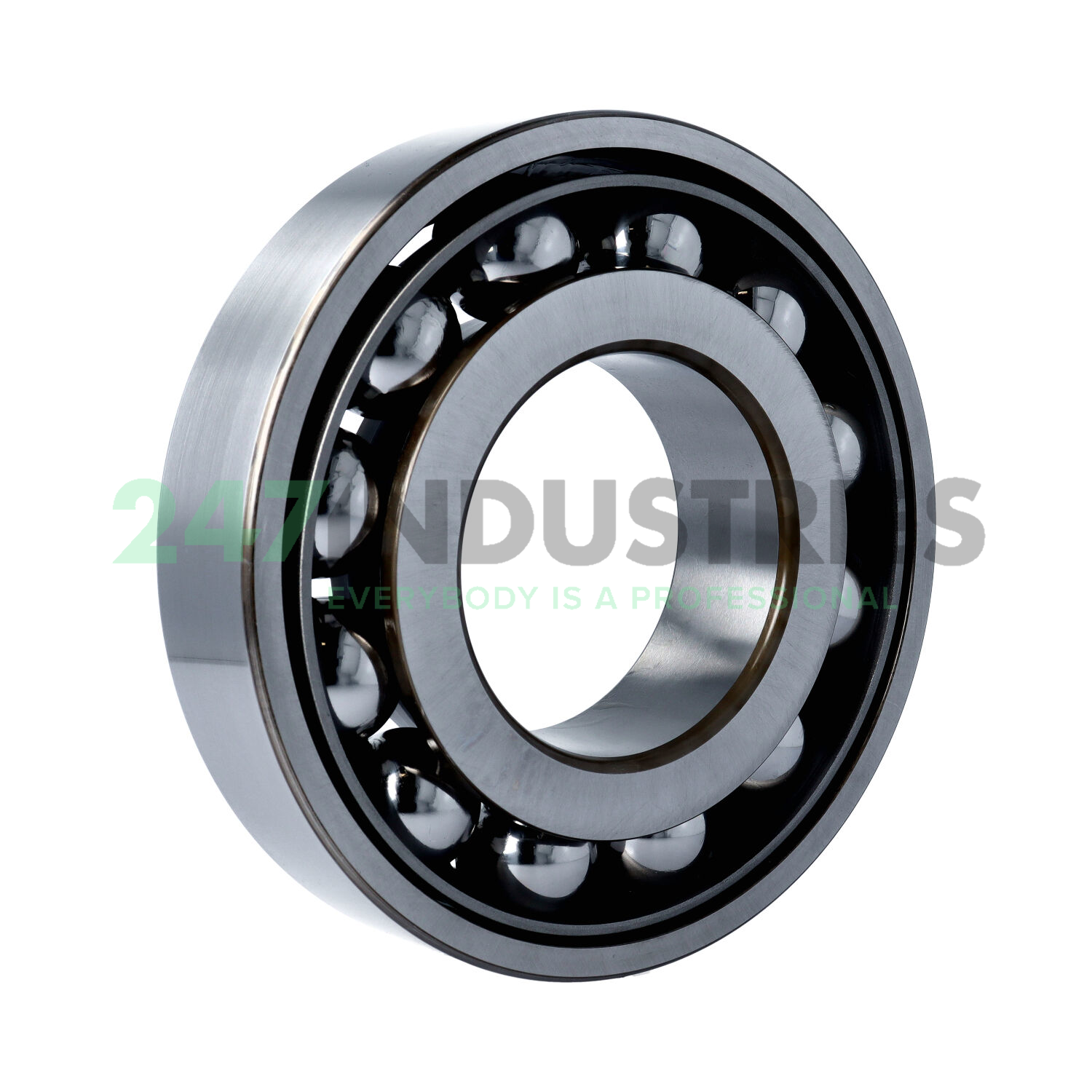

7320BW NSK

All dimensions

1. Inner (d) MM 100
2. Outer (D) MM 215
3. Width (B) MM 47
4. Inner (d) Inch 3.937
5. Outer (D) Inch 8.4646
6. Width (B) Inch 1.8504

Suffix description

1. BW Contact Angle Of 40 Degrees Pressed Steel Retainer, One-Piece Type

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 7320BW NSK
4. EAN 00029176412936
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 7.171

Product Properties

1. Seal No Seal
2. Cage Type S - Steel or Standard Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
