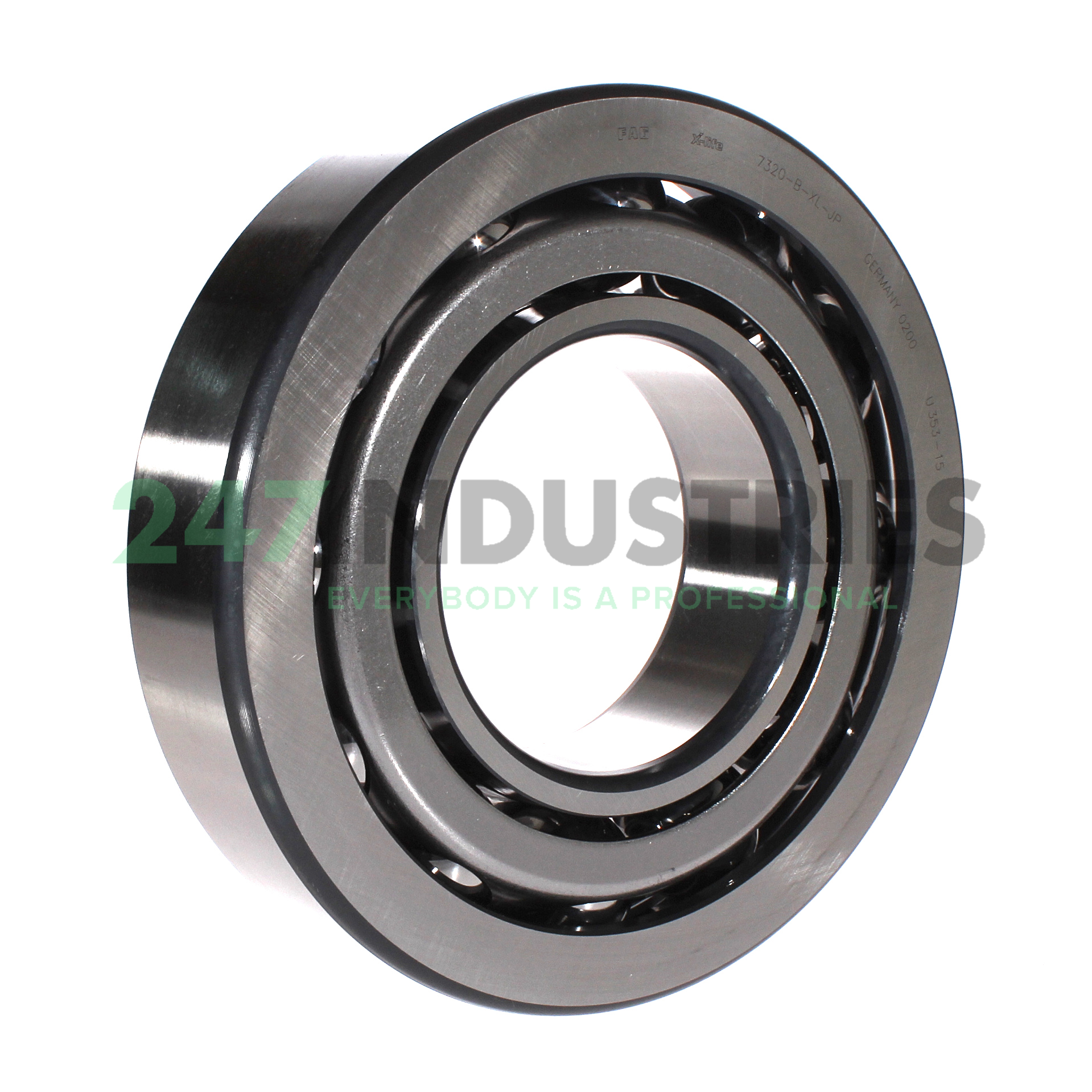

7320-B-JP FAG

Single row angular contact ball bearing

Stock
not in stock
Brand FAG
Article number 7320-B-JP FAG
Inside diameter 100mm
Outside diameter 215mm
Width 47mm
Product description

The 7320-B-JP FAG is a single row angular contact bearing. These bearings have solid inner- and outer rings. They owe their name to the contact angle that is created as the raceways of the inner and outer rings are offset from each other along the bearing axis. The bearing rings have one high and one low shoulder. Thanks to the low shoulder, a large number of balls can be incorporated in the bearing. Single row angular contact bearings can support high radial forces and axial forces in one direction. The greater the contact angle, the greater the axial load capacity of the bearing.

Help with this product

Downloads and links

Similar to: 7320-B-JP FAG

Product
Dimensions/Properties
Stock
Price ex VAT
7320-B-XL-JP FAG
7320-B-XL-JP FAG
Guaranteed same day shipment on orders placed before 18:00h (CET)
449,40 ex VAT
  • Inside diameter 100mm
  • Outside diameter 215mm
  • Width 47mm
7320-B-XL-JP FAG
Guaranteed same day shipment on orders placed before 18:00h (CET)

11 pcs
449,40 ex VAT
7320BW NSK
7320BW NSK
Guaranteed same day shipment on orders placed before 18:00h (CET)
324,55 ex VAT
  • Inside diameter 100mm
  • Outside diameter 215mm
  • Width 47mm
7320BW NSK
Guaranteed same day shipment on orders placed before 18:00h (CET)

4 pcs
324,55 ex VAT

Product specifications

All dimensions

  1. Inner (d) MM 100
  2. Outer (D) MM 215
  3. Width (B) MM 47
  4. Inner (d) Inch 3.937
  5. Outer (D) Inch 8.4646
  6. Width (B) Inch 1.8504

Suffix description

  1. B 40° Contact Angle
  2. JP Pressed Steel Cage, Rolling Element Guided

Technical details

  1. Availability 0 pcs
  2. Brand FAG
  3. Item number 7320-B-JP FAG
  4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 7.171

Product Properties

  1. Seal No Seal
  2. Cage Type S - Steel or Standard Cage
  3. Precision Standard Precision
  4. Contact Angle 40 degrees
  5. Pairing No pairing
  6. Axial Internal Clearance / Preload No Preload
  7. Lubrication Standard Lubrication

Downloads and links

  1. Link to manufacturer Link to manufacturer
Show all details Show less
