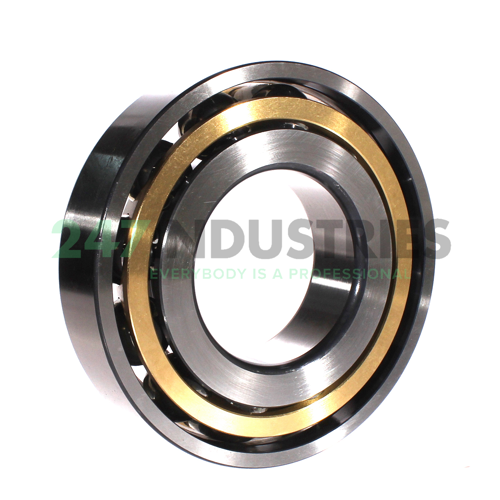

7318BGM SNR

All dimensions

1. Inner (d) MM 90
2. Outer (D) MM 190
3. Width (B) MM 43
4. Inner (d) Inch 3.5433
5. Outer (D) Inch 7.4803
6. Width (B) Inch 1.6929

Suffix description

1. B 40° Contact Angle
2. G Bearing For Paired Mounting In Random Order; When Arranged Back-To-Back Or Face-To-Face There Will Be Axial Internal Clearance
3. M Machined Window-Type Brass Cage, Ball Centered, Different Designs Are Identified By A Figure, e.g. M1

Technical details

1. Availability 2 pcs on Mon 10 Aug
2. Brand SNR
3. Item number 7318BGM SNR
4. EAN 3413520195359
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 5.53

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
