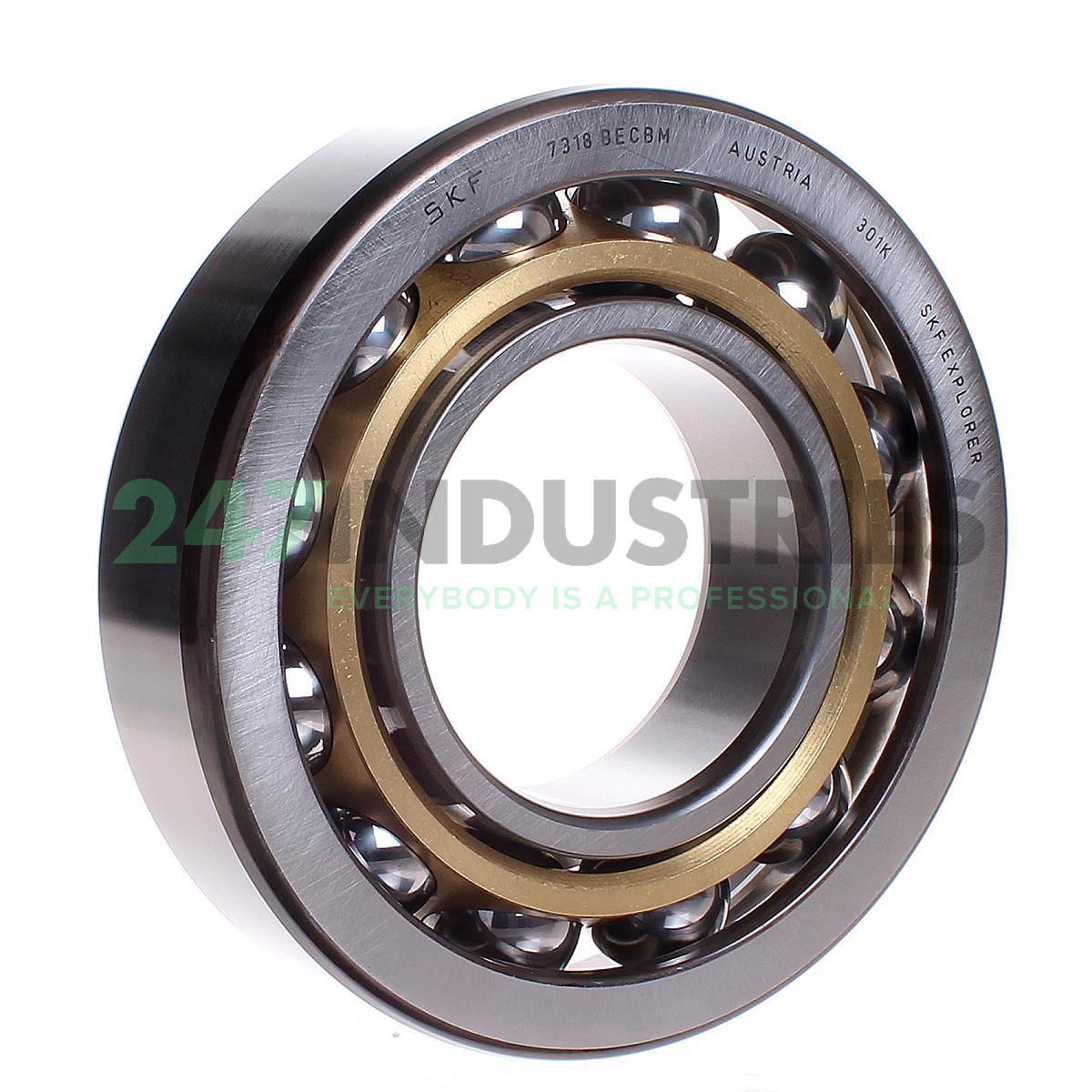

7318BECBMP NKE

All dimensions

1. Inner (d) MM 90
2. Outer (D) MM 190
3. Width (B) MM 43
4. Inner (d) Inch 3.5433
5. Outer (D) Inch 7.4803
6. Width (B) Inch 1.6929

Suffix description

1. BE Single Row Angular Contact Ball Bearing With A 40° Contact Angle And Optimized Internal Design, The Balls Are Larger Than The Balls Used In Suffix B
2. CB Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Normal Axial Internal Clearance Before Mounting
3. MP Machined Solid Brass Cage

Technical details

1. Availability 0 pcs
2. Brand NKE
3. Item number 7318BECBMP NKE
4. Also known as 7318BECBM

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 5.72

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload CB - Normal Axial Clearance
7. Lubrication Standard Lubrication
