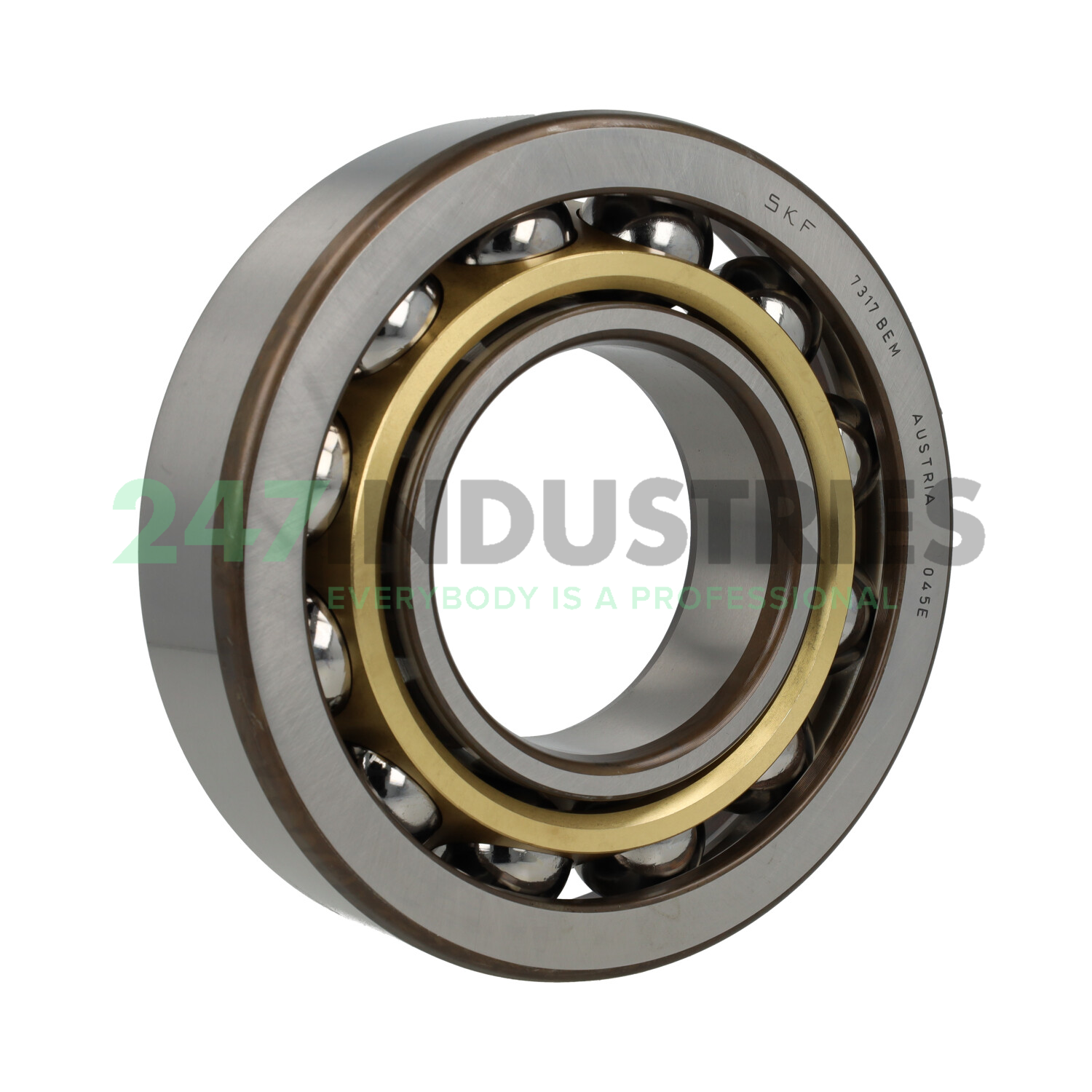

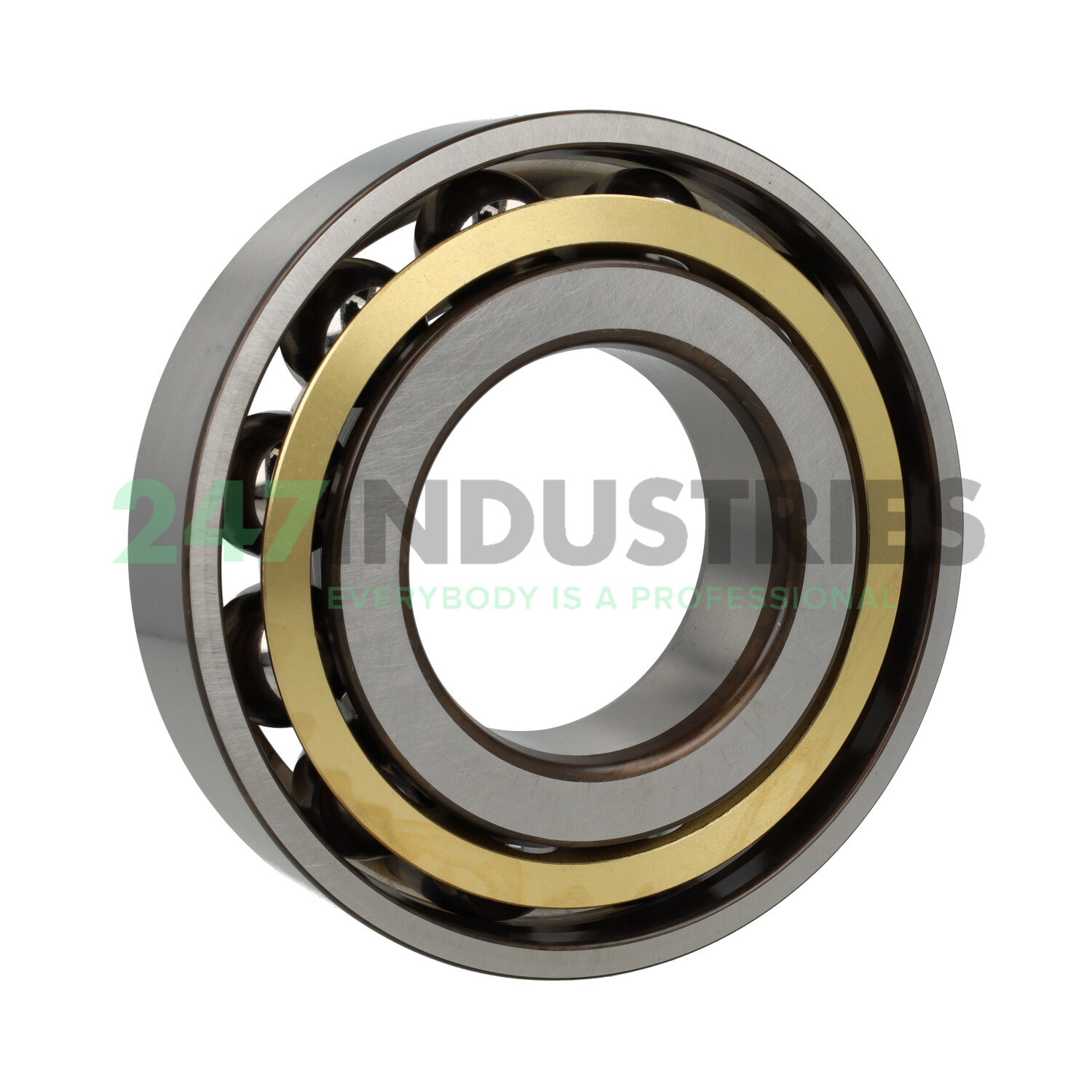

7317BEM SKF

Single row angular contact ball bearing

Stock
1 pc in stock and ready for shipment
Brand SKF
Article number 7317BEM SKF
Inside diameter 85mm
Outside diameter 180mm
Width 41mm
Product description

The 7317BEM SKF is a single row angular contact bearing. These bearings have solid inner- and outer rings. They owe their name to the contact angle that is created as the raceways of the inner and outer rings are offset from each other along the bearing axis. The bearing rings have one high and one low shoulder. Thanks to the low shoulder, a large number of balls can be incorporated in the bearing. Single row angular contact bearings can support high radial forces and axial forces in one direction. The greater the contact angle, the greater the axial load capacity of the bearing.

Help with this product

Similar to: 7317BEM SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 85
  2. Outer (D) MM 180
  3. Width (B) MM 41
  4. Inner (d) Inch 3.3465
  5. Outer (D) Inch 7.0866
  6. Width (B) Inch 1.6142

Suffix description

  1. BE Single Row Angular Contact Ball Bearing With A 40° Contact Angle And Optimized Internal Design
  2. M Machined Window-Type Brass Cage, Ball Centered, Different Designs Are Identified By A Figure, e.g. M1

Technical details

  1. Availability 1 pc
  2. Brand SKF
  3. Item number 7317BEM SKF
  4. EAN 7316577151148
  5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 4.9

Product Properties

  1. Seal No Seal
  2. Cage Type M - Brass Cage
  3. Precision Standard Precision
  4. Contact Angle 40 degrees
  5. Pairing No pairing
  6. Axial Internal Clearance / Preload No Preload
  7. Lubrication Standard Lubrication
