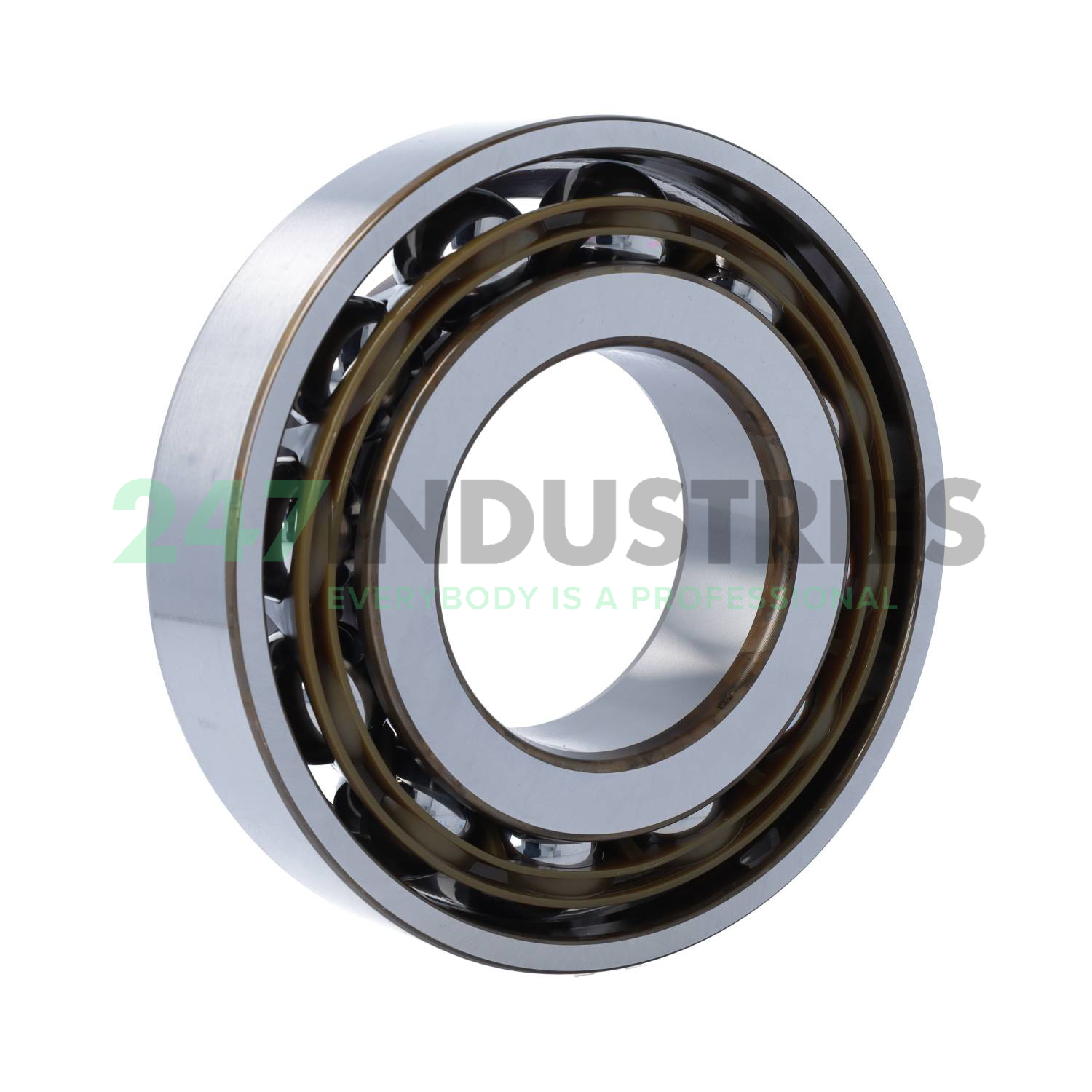

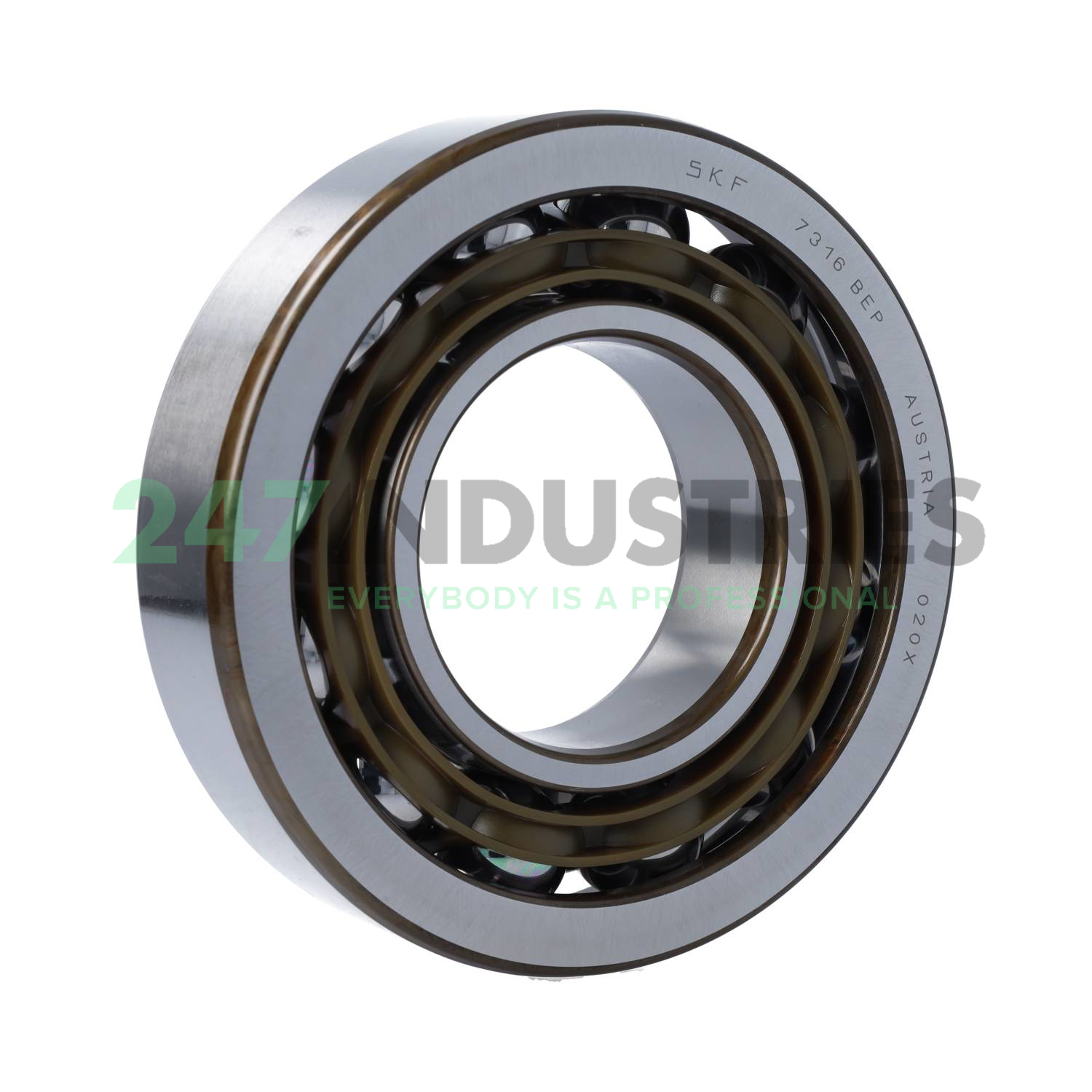

7316BEP SKF

Single row angular contact ball bearing

Stock
1 pc available for shipment on Fri 25 Jul
Brand SKF
Article number 7316BEP SKF
Inside diameter 80mm
Outside diameter 170mm
Width 39mm
Product description

The 7316BEP SKF is a single row angular contact bearing. These bearings have solid inner- and outer rings. They owe their name to the contact angle that is created as the raceways of the inner and outer rings are offset from each other along the bearing axis. The bearing rings have one high and one low shoulder. Thanks to the low shoulder, a large number of balls can be incorporated in the bearing. Single row angular contact bearings can support high radial forces and axial forces in one direction. The greater the contact angle, the greater the axial load capacity of the bearing.

Help with this product

Similar to: 7316BEP SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 80
  2. Outer (D) MM 170
  3. Width (B) MM 39
  4. Inner (d) Inch 3.1496
  5. Outer (D) Inch 6.6929
  6. Width (B) Inch 1.5354

Suffix description

  1. BE Single Row Angular Contact Ball Bearing With A 40° Contact Angle And Optimized Internal Design
  2. P Injection Moulded Window-Type Cage Of Glass Fibre Reinforced Polyamide 6,6, Ball Centered

Technical details

  1. Availability 1 pc on Fri 25 Jul
  2. Brand SKF
  3. Item number 7316BEP SKF
  4. EAN 7316577151032
  5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 3.74

Product Properties

  1. Seal No Seal
  2. Cage Type P - Plastic Molded Cage
  3. Precision Standard Precision
  4. Contact Angle 40 degrees
  5. Pairing No pairing
  6. Axial Internal Clearance / Preload No Preload
  7. Lubrication Standard Lubrication
