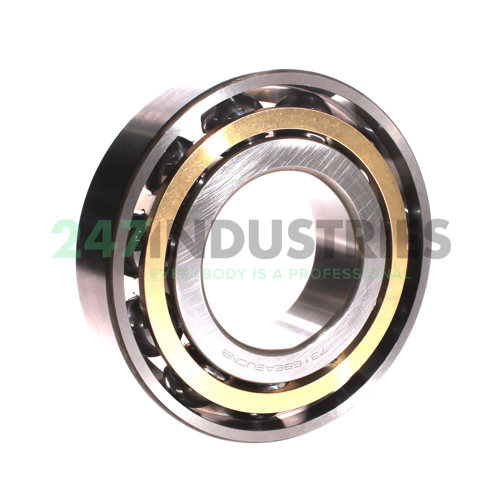

7316BEAMRSUCNB NSK

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 170
3. Width (B) MM 39
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 6.6929
6. Width (B) Inch 1.5354

Suffix description

1. B 40° Contact Angle
2. EA Higher Capacity (Better Than Former Suffix E)
3. MR Machined Brass Cage, Located On The Rolling Elements
4. SU Single Universal
5. CNB Normal Clearance

Technical details

1. Availability 2 pcs
2. Brand NSK
3. Item number 7316BEAMRSUCNB NSK
4. EAN 00029176953019
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 4.17

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload CB - Normal Axial Clearance
7. Lubrication Standard Lubrication
