7315BEM1/S0VQ335 SKF

411,55 ex VAT
€ 497,97 in VAT
€ 497,97 in VAT
411,55 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CEST)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

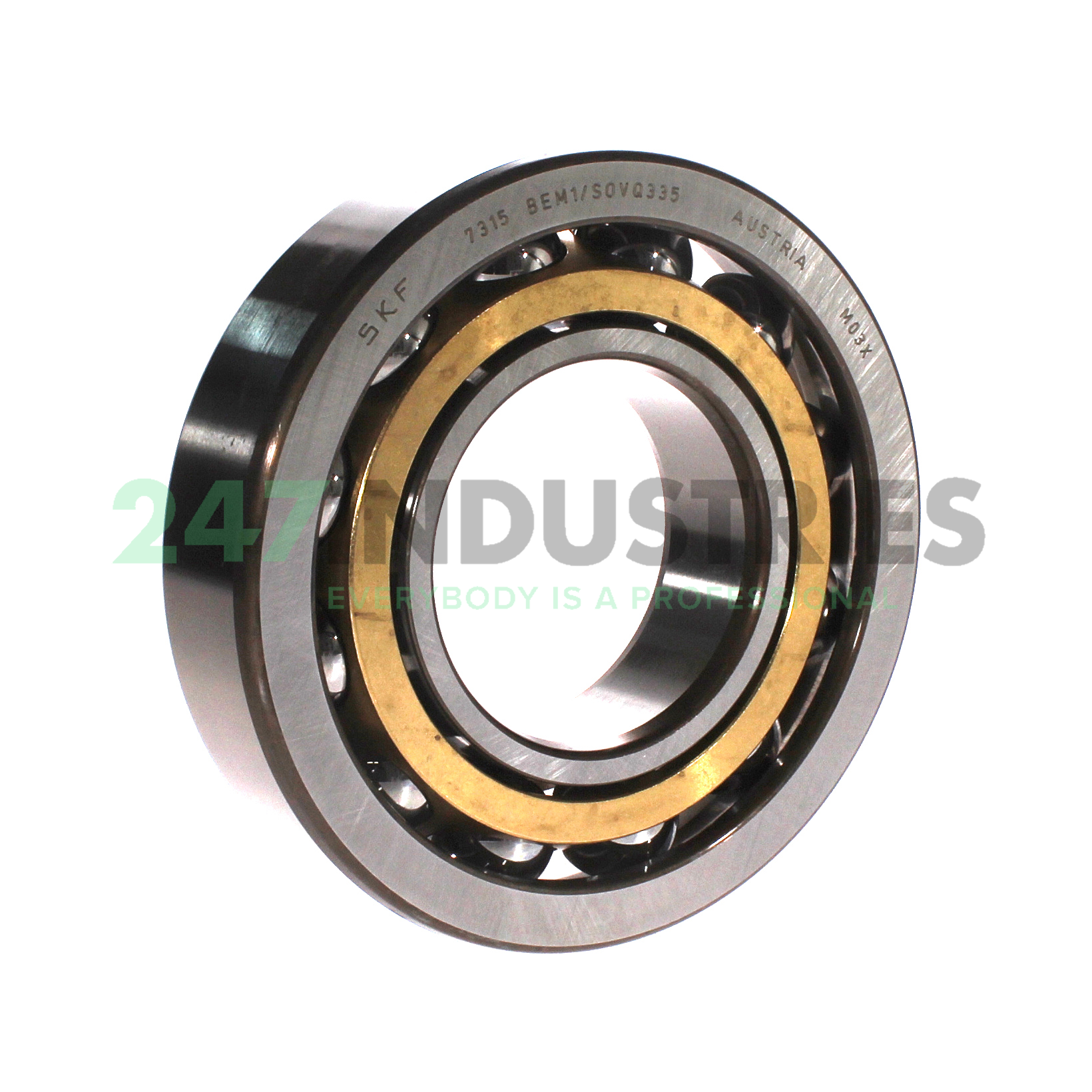

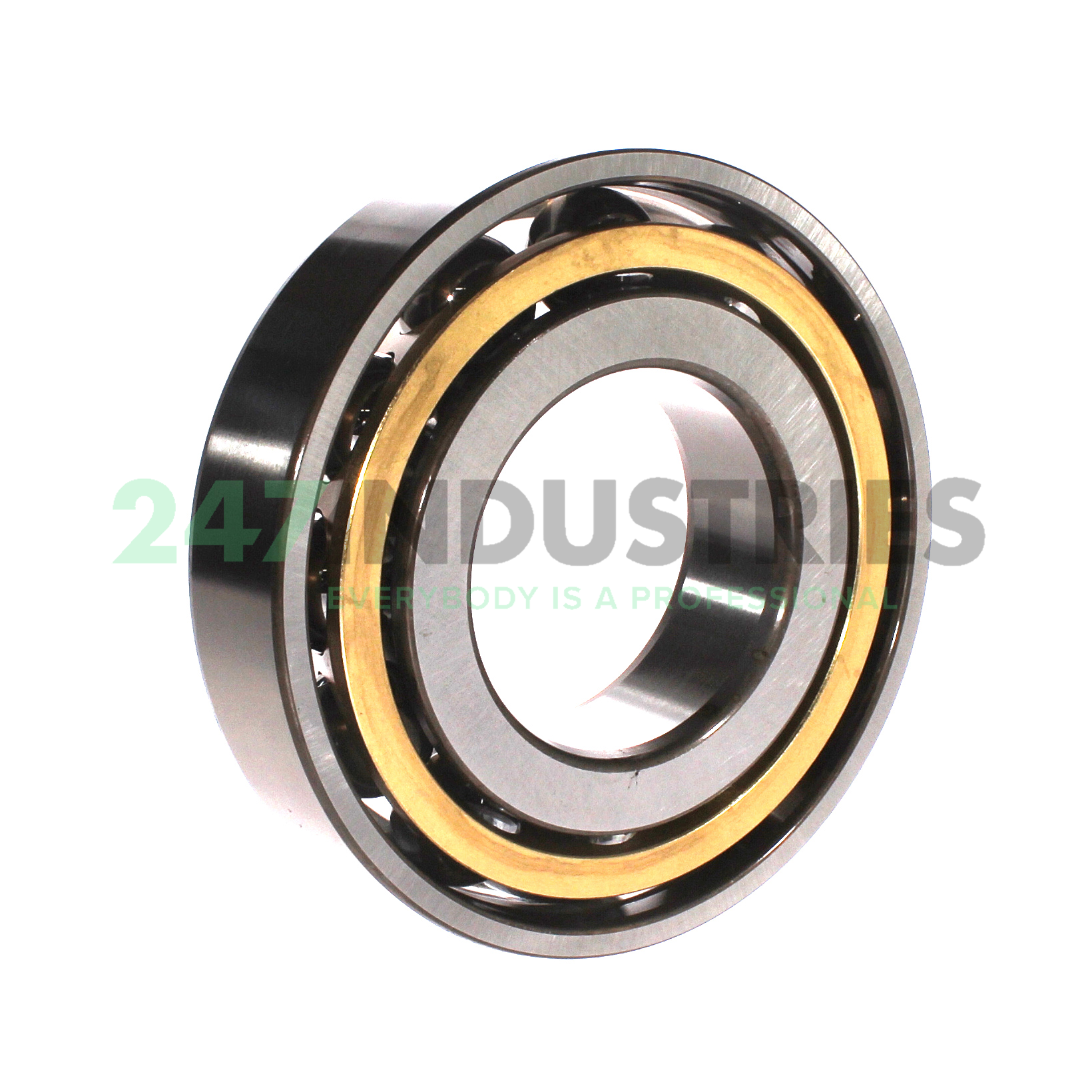

7315BEM1/S0VQ335 SKF

Single row angular contact ball bearing

Stock
3 pcs in stock and ready for shipment
Brand SKF
Article number 7315BEM1/S0VQ335 SKF
Inside diameter 75mm
Outside diameter 160mm
Width 37mm
Product description

The 7315BEM1/S0VQ335 SKF is a single row angular contact bearing. These bearings have solid inner- and outer rings. They owe their name to the contact angle that is created as the raceways of the inner and outer rings are offset from each other along the bearing axis. The bearing rings have one high and one low shoulder. Thanks to the low shoulder, a large number of balls can be incorporated in the bearing. Single row angular contact bearings can support high radial forces and axial forces in one direction. The greater the contact angle, the greater the axial load capacity of the bearing.

Help with this product

Similar to: 7315BEM1/S0VQ335 SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 75
  2. Outer (D) MM 160
  3. Width (B) MM 37
  4. Inner (d) Inch 2.9528
  5. Outer (D) Inch 6.2992
  6. Width (B) Inch 1.4567

Suffix description

  1. BE Single Row Angular Contact Ball Bearing With A 40° Contact Angle And Optimized Internal Design
  2. M1 Two-Piece Machined Brass Cage, Roller Centered; Different Designs Or Material Grades Are Identified By A Figure Or A Letter, e.g. M2, MC
  3. S0 Bearing Rings (Or Washers) Dimensionally Stabilised For Use At Operating Temperatures Up To +150 °C. VQ(335)=Quality And Tolerances Other Than Standard

Technical details

  1. Availability 3 pcs
  2. Brand SKF
  3. Item number 7315BEM1/S0VQ335 SKF
  4. Also known as 7315BEM
    7315BEM1
    7315BEM1/S0
    7315BM
    7315-B-XL-MP
  5. EAN 7316570592474
  6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 3.51

Product Properties

  1. Seal No Seal
  2. Cage Type M - Brass Cage
  3. Precision Standard Precision
  4. Contact Angle 40 degrees
  5. Pairing No pairing
  6. Axial Internal Clearance / Preload No Preload
  7. Lubrication Standard Lubrication
