7314BECBPH SKF

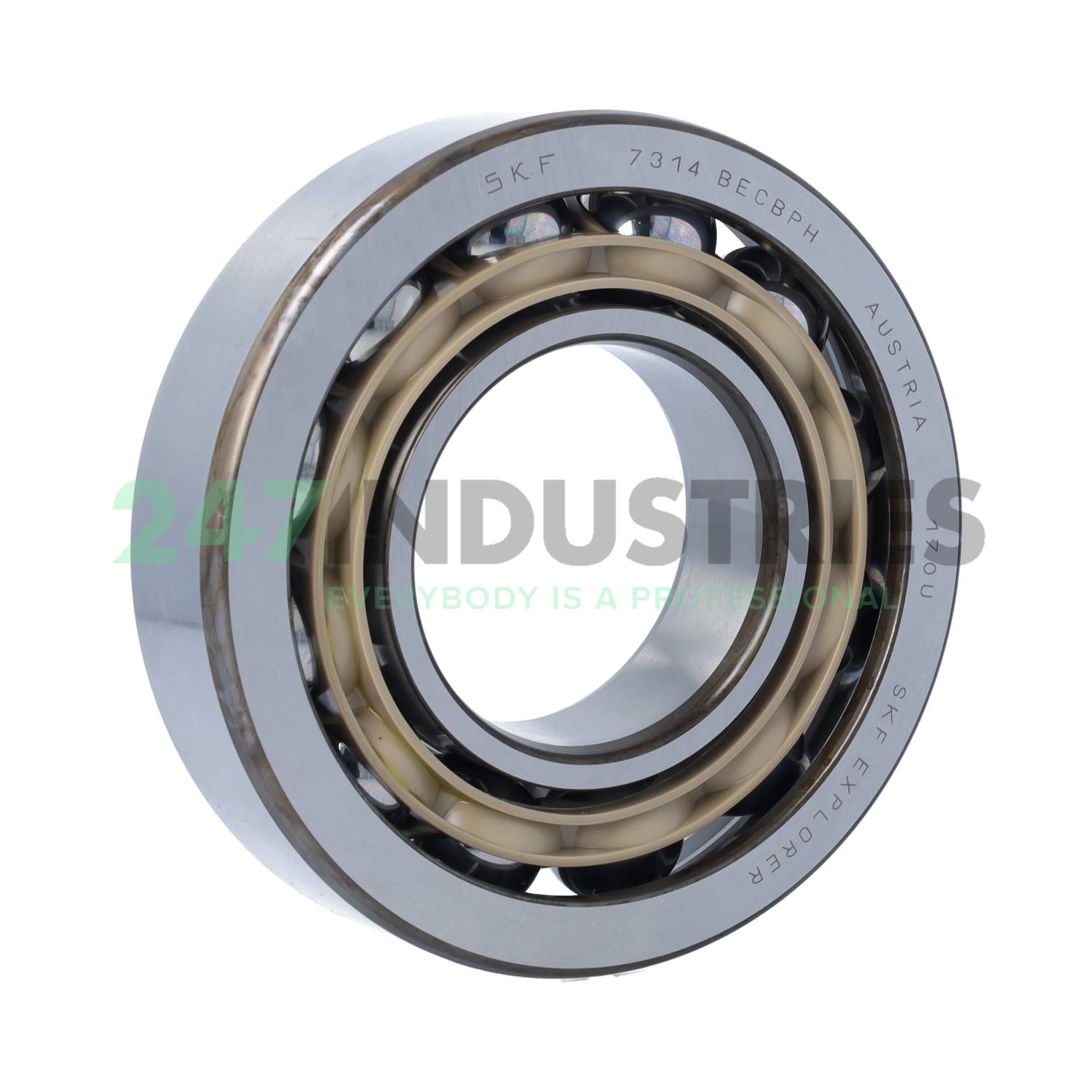

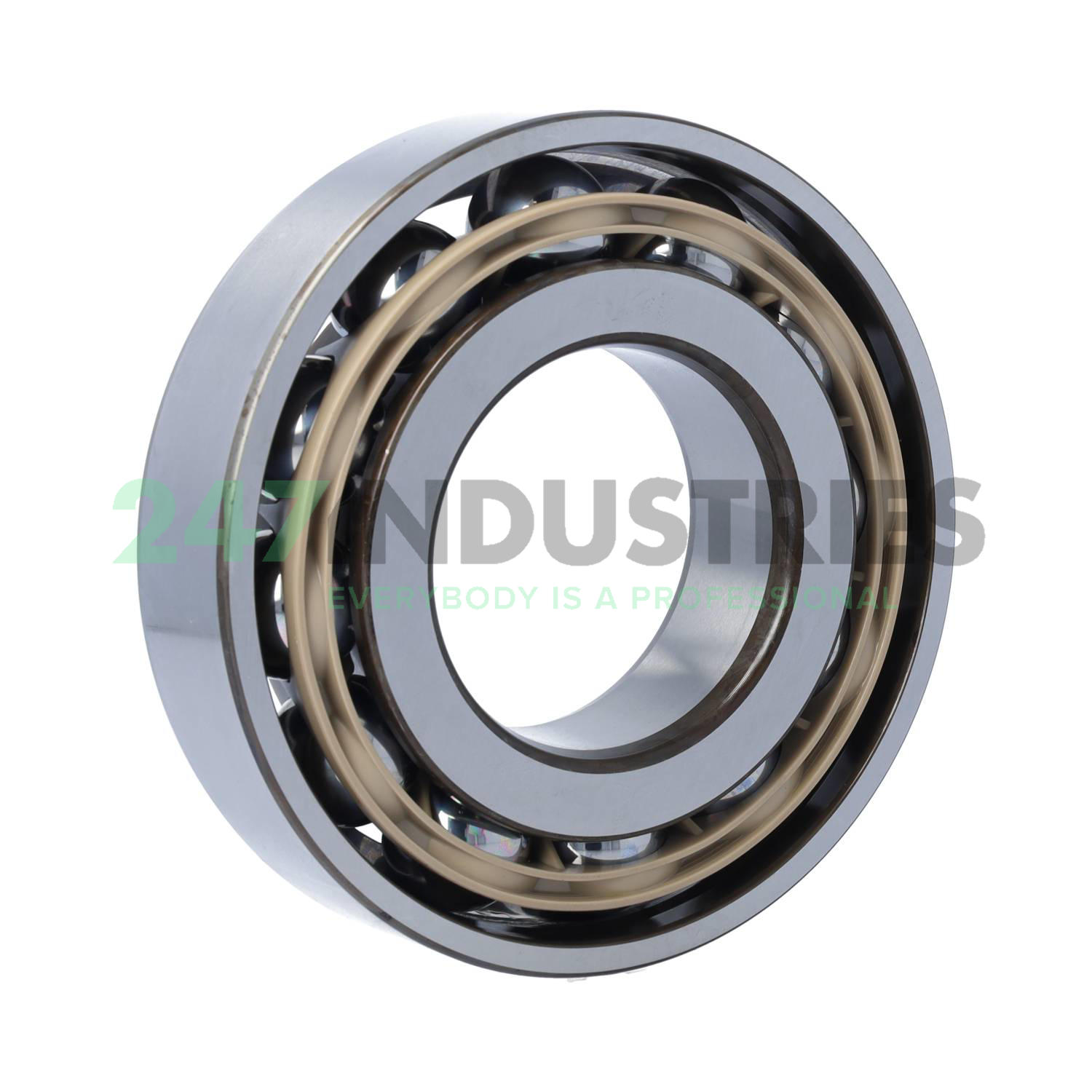

Single row angular contact ball bearing in CB design

Stock
2 pcs in stock and ready for shipment
Brand SKF
Article number 7314BECBPH SKF
Inside diameter 70mm
Outside diameter 150mm
Width 35mm
Product description

The 7314BECBPH SKF is a single row angular contact bearing. These bearings have solid inner- and outer rings. They owe their name to the contact angle that is created as the raceways of the inner and outer rings are offset from each other along the bearing axis. The bearing rings have one high and one low shoulder. Thanks to the low shoulder, a large number of balls can be incorporated in the bearing. Single row angular contact bearings can support high radial forces and axial forces in one direction. The greater the contact angle, the greater the axial load capacity of the bearing.

The 7314BECBPH SKF is suitable for universal matching. Bearings for universal matching can be assembled directly beside each other various arrangements. No shims or other spacers are required to obtain the predetermined clearance or preload and/or even load distribution. Paired mounting is used if the load carrying capacity of a single bearing is insufficient, or if there are combined or axial loads in both directions. When using a CB bearing set in X or O arrangement, the axial clearance in unassembled condition is Normal (standard).

Read more Show less
Help with this product

Similar to: 7314BECBPH SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 70
  2. Outer (D) MM 150
  3. Width (B) MM 35
  4. Inner (d) Inch 2.7559
  5. Outer (D) Inch 5.9055
  6. Width (B) Inch 1.378

Suffix description

  1. BE Single Row Angular Contact Ball Bearing With A 40° Contact Angle And Optimized Internal Design
  2. CB Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Normal Axial Internal Clearance Before Mounting
  3. PH Injection Moulded Cage Of Glass Fibre Reinforced Polyetheretherketone (PEEK), Roller Centered

Technical details

  1. Availability 2 pcs
  2. Brand SKF
  3. Item number 7314BECBPH SKF
  4. EAN 7316572244029
  5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 2.546

Product Properties

  1. Seal No Seal
  2. Cage Type PH - PEEK Cage
  3. Precision Standard Precision
  4. Contact Angle 40 degrees
  5. Pairing No pairing
  6. Axial Internal Clearance / Preload CB - Normal Axial Clearance
  7. Lubrication Standard Lubrication
