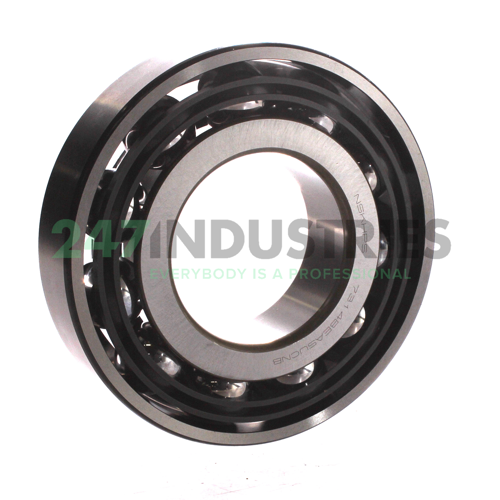

7314BEAT85SUCNB NSK

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 150
3. Width (B) MM 35
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 5.9055
6. Width (B) Inch 1.378

Suffix description

1. B 40° Contact Angle
2. EA Higher Capacity (Better Than Former Suffix E)
3. T85 Polyamide 46 Resin Cage (Better Than Former Suffix TN)
4. SU Single Universal
5. CNB Normal Clearance

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 7314BEAT85SUCNB NSK
4. Also known as 7314BEAT85SU

5. EAN 00029176634185
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 2.65

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload CB - Normal Axial Clearance
7. Lubrication Standard Lubrication
