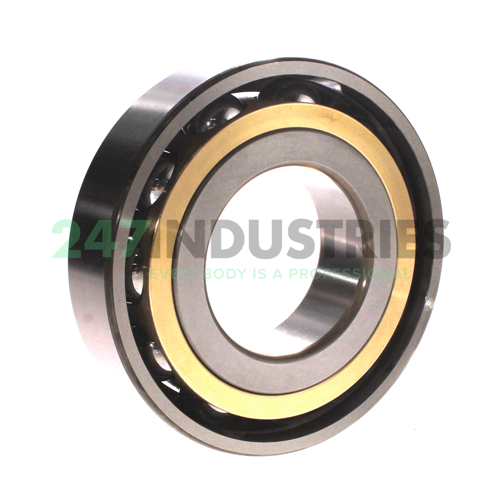

7314B SU A17 P6 NSK

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 150
3. Width (B) MM 35
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 5.9055
6. Width (B) Inch 1.378

Suffix description

1. SU Single Bearing For Universal Mounting In Random Order
2. A17 Axial Play In Microns
3. P6 Dimensional And Running Accuracy To ISO Tolerance Class 6 (Better Than Normal)

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 7314B SU A17 P6 NSK
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 2.67

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. Precision P6 Precision (Higher than Standard)
4. Contact Angle 40 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload 17 μm
7. Lubrication Standard Lubrication
