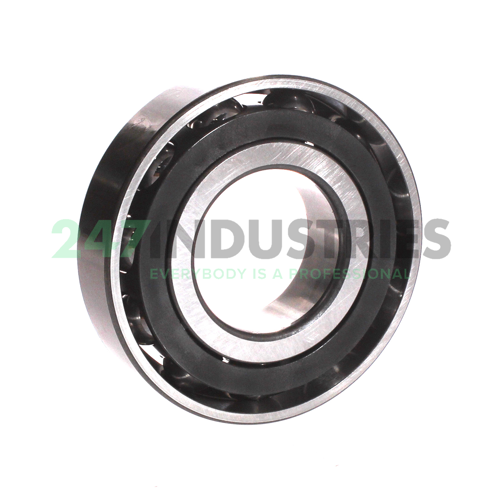

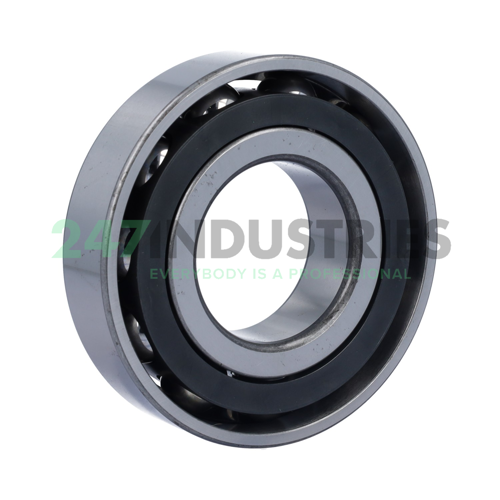

7311CP5 NTN

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 120
3. Width (B) MM 29
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 4.7244
6. Width (B) Inch 1.1417

Suffix description

1. 7226C Machined High Tensile Brass Cage
2. C 15˚ Contact Angle
3. P5 Dimensional And Running Accuracy To ISO Tolerance Class 5

Technical details

1. Availability 3 pcs on Wed 22 Apr
2. Brand NTN
3. Item number 7311CP5 NTN
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.338

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision P5 Precision (Higher than P6)
4. Contact Angle 15 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
