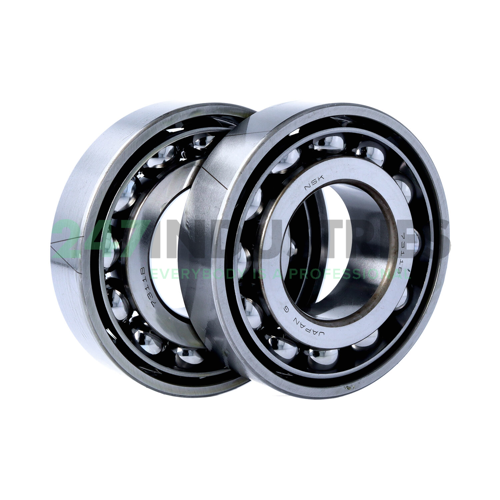

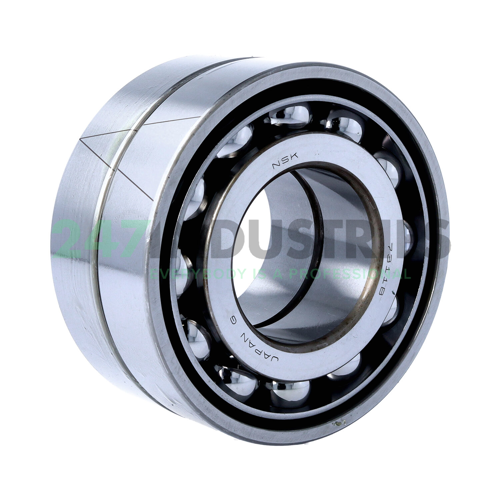

7311BWDT NSK

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 120
3. Width (B) MM 58
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 4.7244
6. Width (B) Inch 2.2835

Suffix description

1. BW Contact Angle Of 40 Degrees Pressed Steel Retainer, One-Piece Type
2. DT Two Single Row Deep Groove Ball Bearings, Single Row Angular Contact Ball Bearings Or Single Row Tapered Roller Bearings Matched For Mounting In A Tandem Arrangement

Technical details

1. Availability 4 pcs
2. Brand NSK
3. Item number 7311BWDT NSK
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 2.676

Product Properties

1. Seal No Seal
2. Cage Type S - Steel or Standard Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing DT - Tandem Arrangement, 2
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
