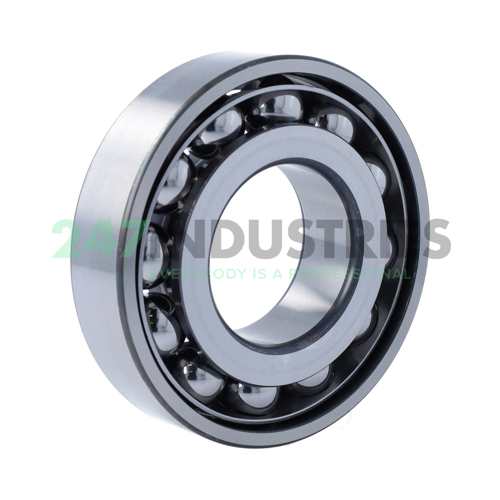

7311-B-XL-JP-UA80 FAG

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 120
3. Width (B) MM 29
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 4.7244
6. Width (B) Inch 1.1417
7. Width (b) mm 29

Suffix description

1. B 40° Contact Angle
2. XL X-Life
3. JP Pressed Steel Cage, Rolling Element Guided
4. UA80 Universal Mounting, With O And X Configurations The Bearing Pair Has Small Axial Clearance, 80μm

Technical details

1. Availability 2 pcs
2. Brand FAG
3. Item number 7311-B-XL-JP-UA80 FAG
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.41

Product Properties

1. Seal No Seal
2. Cage Type S - Steel or Standard Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload U8 - Small Axial Clearance (80)
7. Lubrication Standard Lubrication

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 61000
2. Limiting speed (n G) 7700
3. Reference speed (n ϑr) 5600
