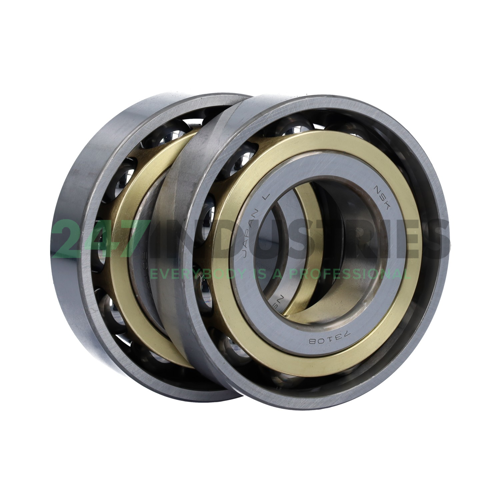

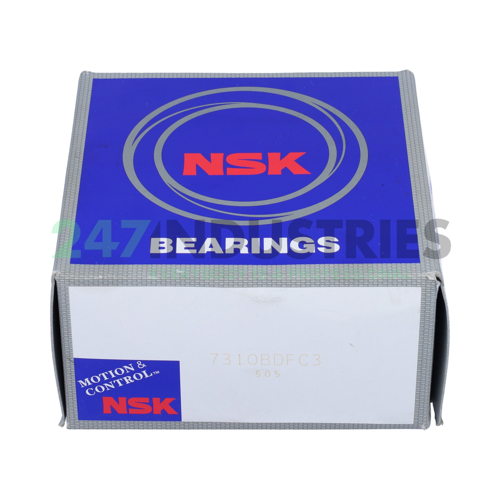

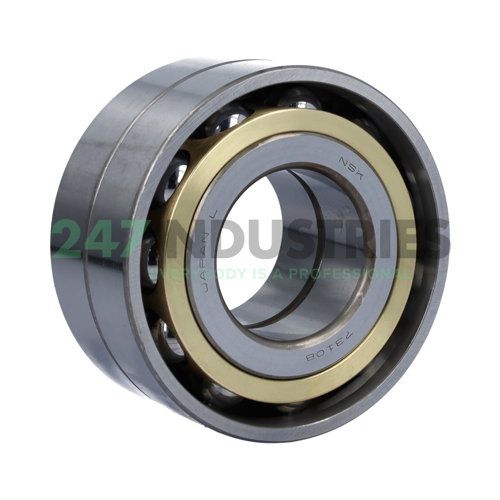

7310BDFC3 NSK

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 110
3. Width (B) MM 54
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 4.3307
6. Width (B) Inch 2.126

Suffix description

1. B High Capacity & Higher Speed (Replaces “A” Type)
2. DF Two Single Row Angular Contact Ball Bearings Matched For Mounting In A Face-To-Face Arrangement
3. C3 Ultra Light Preload

Technical details

1. Availability 2 pcs
2. Brand NSK
3. Item number 7310BDFC3 NSK
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 2.076

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. Precision C3
4. Contact Angle 40 degrees
5. Pairing DF - X-arrangement, 2
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
