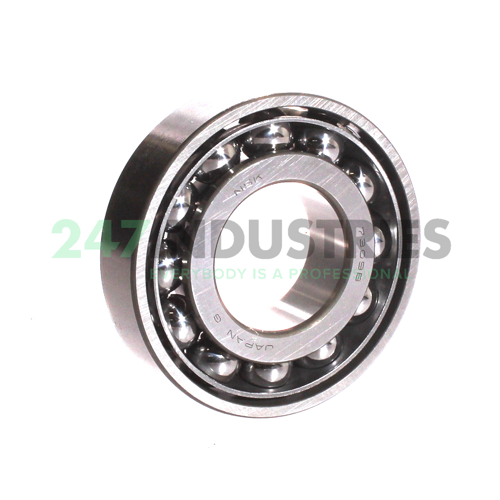

7309BWG NSK

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 100
3. Width (B) MM 25
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.9843

Suffix description

1. BW Contact Angle Of 40 Degrees Pressed Steel Retainer, One-Piece Type
2. G Universal Mounting

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 7309BWG NSK
4. EAN 00029176035487
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.9

Product Properties

1. Seal No Seal
2. Cage Type S - Steel or Standard Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
