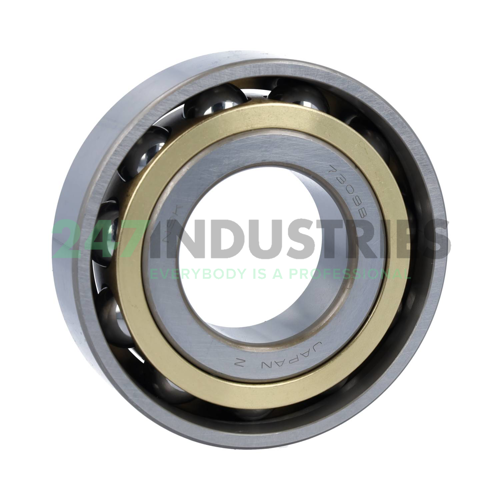

7309BSUA14P6 NSK

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 100
3. Width (B) MM 25
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.9843

Suffix description

1. B 40° Contact Angle
2. SU Single Bearing For Universal Mounting In Random Order
3. A14 Axial Play In Microns
4. P6 Dimensional And Running Accuracy To ISO Tolerance Class 6 (Better Than Normal)

Technical details

1. Availability 107 pcs
2. Brand NSK
3. Item number 7309BSUA14P6 NSK
4. EAN 00029176101960
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.9

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision P6 Precision (Higher than Standard)
4. Contact Angle 40 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload 14 μm
7. Lubrication Standard Lubrication
