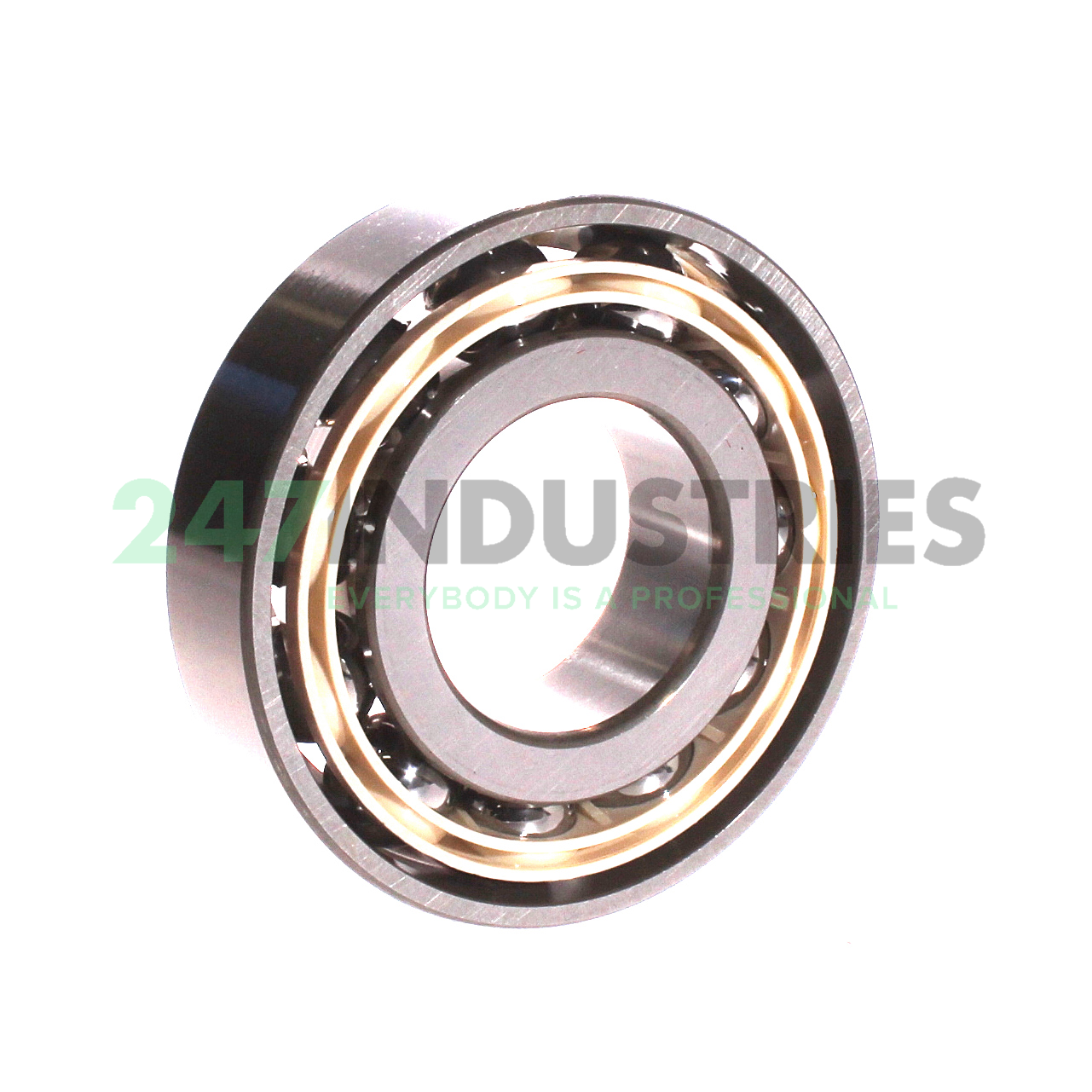

7309BEAT7 NSK

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 100
3. Width (B) MM 25
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.9843

Suffix description

1. B 40° Contact Angle
2. EA Higher Capacity (Better Than Former Suffix E)
3. T7 High Performance Cage L-PPS

Technical details

1. Availability 2 pcs
2. Brand NSK
3. Item number 7309BEAT7 NSK
4. EAN 00192661075630
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.875

Product Properties

1. Seal No Seal
2. Cage Type High Performance Cage L-PPS. - High Performance Cage L-PPS.
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
