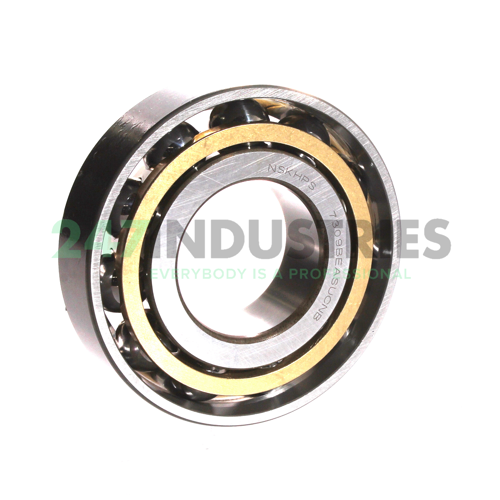

7309BEAMRSUCNB NSK

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 100
3. Width (B) MM 25
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.9843

Suffix description

1. B 40° Contact Angle
2. EA Higher Capacity (Better Than Former Suffix E)
3. MR Machined Brass Cage, Located On The Rolling Elements
4. SU Single Universal
5. CNB Normal Clearance

Technical details

1. Availability 2 pcs
2. Brand NSK
3. Item number 7309BEAMRSUCNB NSK
4. EAN 00029176782534
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.927

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload CB - Normal Axial Clearance
7. Lubrication Standard Lubrication
