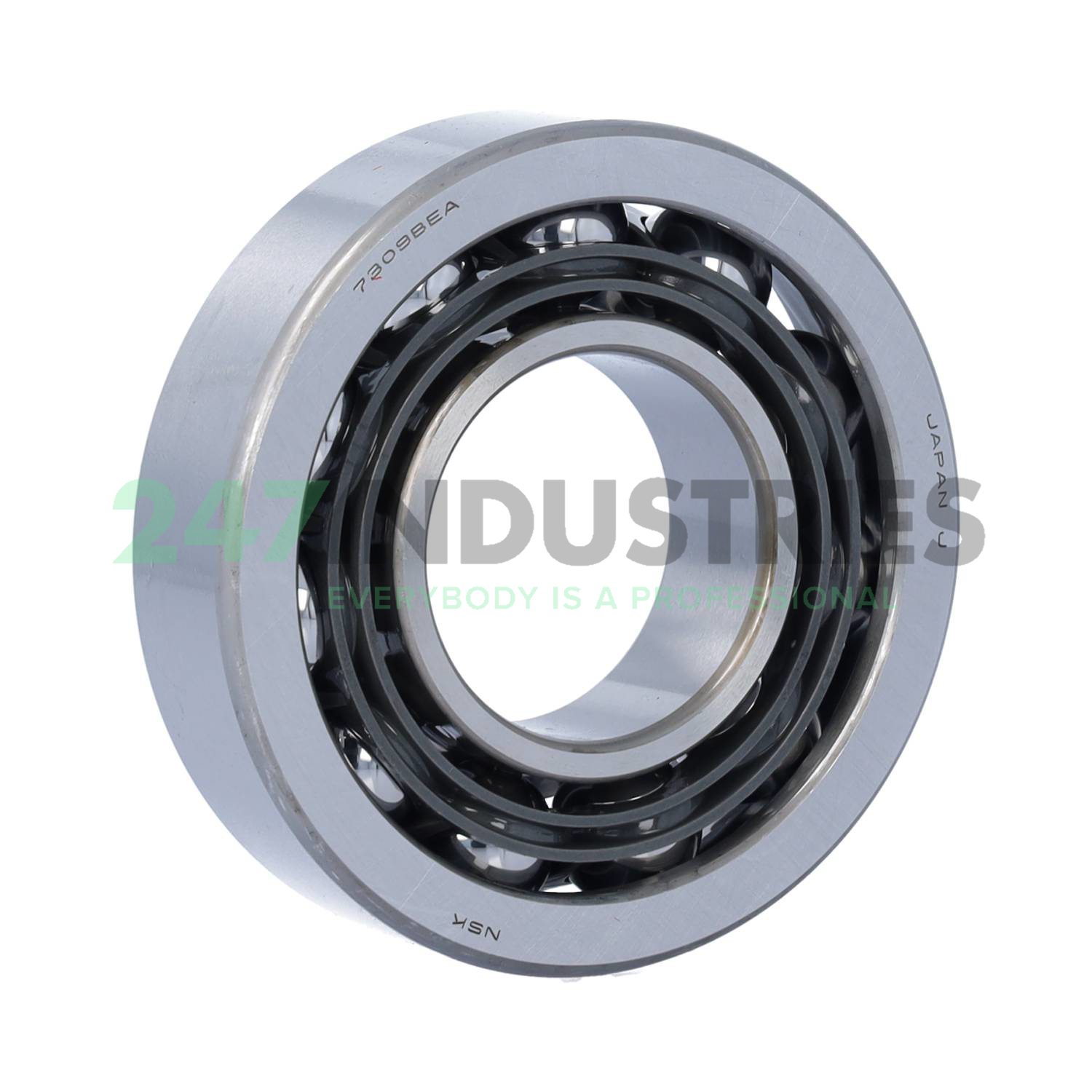

7309B EA T85 SU GA NSK

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 100
3. Width (B) MM 25
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.9843

Suffix description

1. EA Higher Capacity (Better Than Former Suffix E)
2. T85 Polyamide 46 Resin Cage (Better Than Former Suffix TN)
3. SU Single Universal
4. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 7309B EA T85 SU GA NSK
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.835

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
